Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Pen Type Hardness Tester HT-6510NT 0.5mm Diameter With Tungsten Carbide Test Head
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
HT-6510NT
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
box and outer carton
Model NO. :
HT-6510NT
Test Head Diameter :
0.5mm ( Optional)
Test Head Diameter 2 :
0.75mm (Standard)
Test Head Diameter 3 :
1.0mm(Optional) (Conforming to Is01518 and Def)
Spring Pressure Range 1 :
0n~3n (Marked in Blue)
Spring Pressure Range 2 :
0n~10n (Marked in Red)
Spring Pressure Range 3 :
0n~20n (Yellow Mark)
Spring Pressure Range 4 :
0n~40n (White Mark), (Optional)
Origin :
China
Description

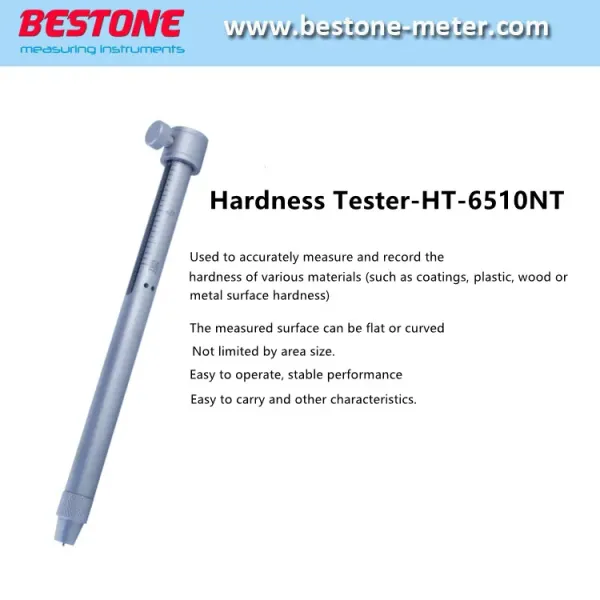

Hardness Tester Pen HT-6510NT

Professional portable hardness testing instrument for accurate measurement and recording of coating, plastic, wood, and metal material hardness.

Applications

Accurately measures and records hardness of various materials including coatings, plastics, wood, and metal surfaces.

Key Features
  • Measures both flat and curved surfaces
  • Not limited by surface area size
  • Easy to operate with stable performance
  • Portable and convenient for field use
Testing Principle

Utilizes spring compression deformation to generate force through a known diameter test head. The test head marks the coating surface to determine if damage occurs, with results measured in Newton units.

Technical Specifications
Pressure Test Spring Material Spring Steel
Test Head Material Tungsten Carbide
Test Head Diameter 0.5mm (optional)
0.75mm (standard)
1.0mm (optional) - Conforms to ISO1518 and DEF
Spring Pressure Range 0N~3N (blue mark)
0N~10N (red mark)
0N~20N (yellow mark)
0N~40N (white mark, optional)

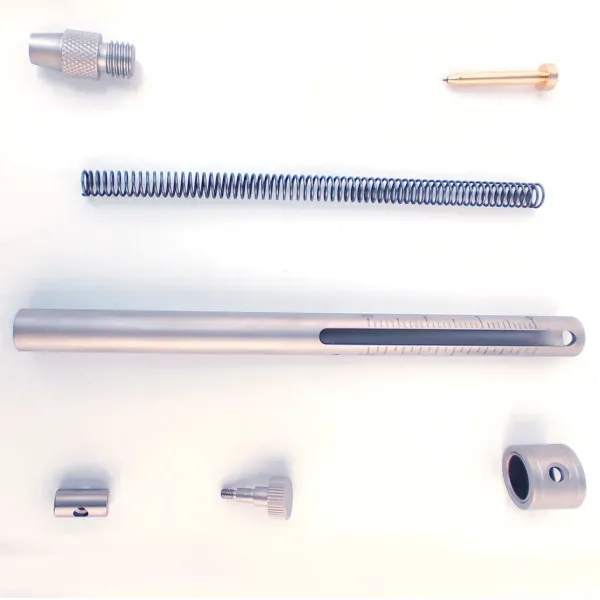

Product Images
