Specifications
Certification :
CE
MOQ :
2
Price :
198
Model NO. :
SM208
Warranty :
1 Year
Screen Brightness :
0.01-39990CD/M2
Measuring Distance :
≤1m
Object Size :
Increasing with The Increase of Measuring Di
Object Size 1 :
≥Ф20
Precision :
≤±0.8% of The Measured Value +1 Figure
Indication Error :
≤±0.5% of The Measured Value +1 Figure
Transport Package :
Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
Description

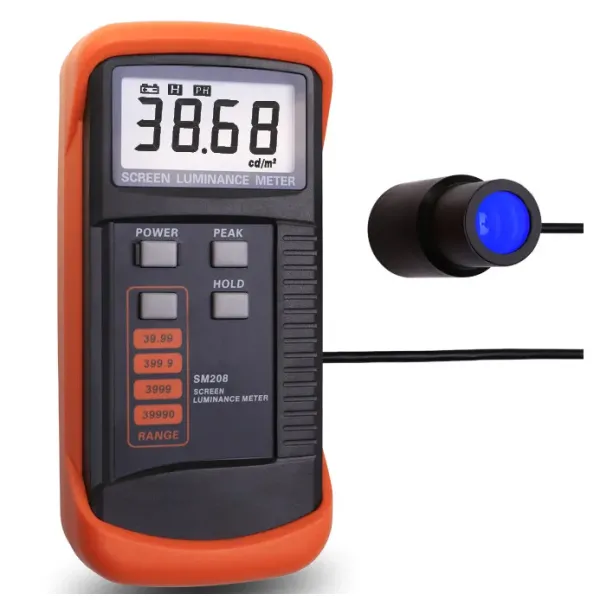

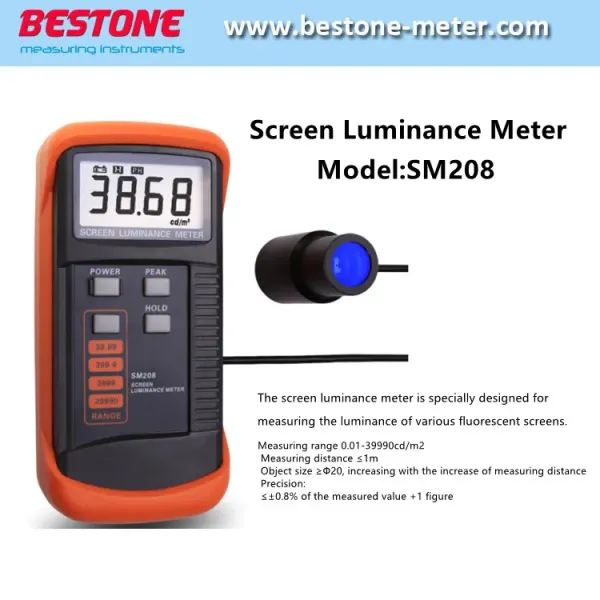

Screen Brightness/Luminance Meter (SM208)
The SM208 screen luminance meter is specifically engineered for measuring luminance across various display technologies including fluorescent screens, CRT displays, monochrome transmission screens, color transmission screens, monochrome backlit LCD screens, LCD backlights, mobile color LCD screens, color computer TV screens, and security indicating screens. This versatile instrument also serves applications in medical X-ray, electroluminescence, and other specialized measurement fields.
Key Features
  • Silicon photocell detector with excellent stability, light resistance, and impact resistance for accurate luminance measurement with rigorous visual correction
  • Wide measurement range from 0.01 cd/m² to 39,990 cd/m² without requiring a dimmer
  • Digital display with superior reproducibility, featuring data retention and peak hold functionality
  • Low power consumption - 9V laminated battery provides up to 100 hours of continuous operation

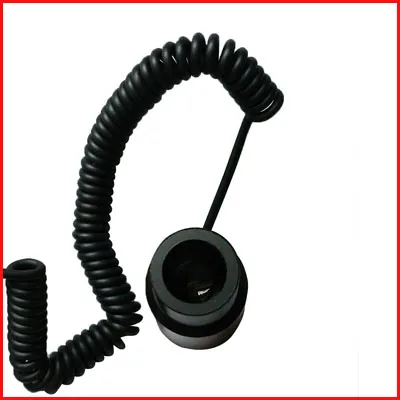

  • Compact metering probe with 20mm diameter - requires measured screen diameter greater than 20mm with tilt angle under 5 degrees
  • Portable design for easy handling and operation
Technical Specifications
Model Number SM208
Measuring Range 0.01-39,990 cd/m²
Measuring Distance ≤1m
Object Size ≥Φ20, increasing with measuring distance
Accuracy ≤±0.5% of measured value +1 digital
Indication Error ≤±0.5% of measured value +1 digital (relative to NIM standard)
Spectrum Response In accordance with national grade I illuminometer standard
Linearity Error ≤+0.2% of measured value +1 digital
Temperature Characteristics ≤+0.1% of measured value +1 digital
Operating Environment Temperature: 0-40°C, Relative humidity: ≤85%
Power Source 9V layer-built battery
Dimensions 149 × 71 × 41 mm
Product Images

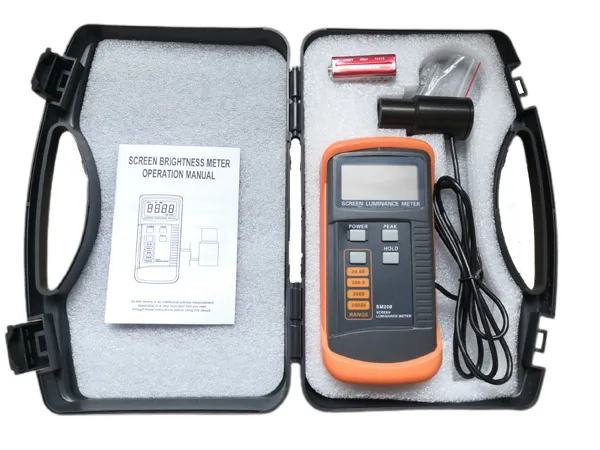

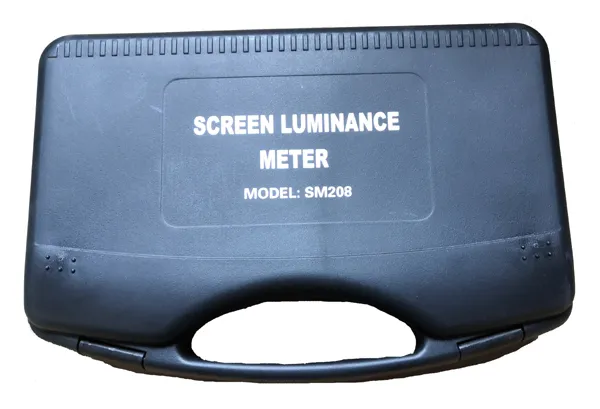

SM208 Screen Brightness Meter 0.01-39990CD/M2 Range With Silicon Photocell Detector SM208 Screen Brightness Meter 0.01-39990CD/M2 Range With Silicon Photocell Detector SM208 Screen Brightness Meter 0.01-39990CD/M2 Range With Silicon Photocell Detector SM208 Screen Brightness Meter 0.01-39990CD/M2 Range With Silicon Photocell Detector SM208 Screen Brightness Meter 0.01-39990CD/M2 Range With Silicon Photocell Detector
