Specifications
Brand Name :
Bestone
Model Number :
FM-100V10
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
material :
plastic and metal
color :
black and gray color
unit size :
75mm*135mm*25mm
Instrument :
K:0.0500, C:0.0100
Speed range :
0.01-10.00 m/s
Current measurement error :
≤1. 5%
LCD :
LIQUID crystal display
Measurement method :
pole positioning measurement
Backlight :
LED backlight
Temperature range :
-10°C-50°C
Description
FM-100V10 Portable Flow Rate Meter

The FM-100V10 portable flow rate meter is designed for measuring velocity and flow in open channels, featuring a Hall velocity rotation sensor for accurate polluted water flow measurement.

Applications

Ideal for hydrological stations, industrial facilities, environmental protection monitoring stations, farmland irrigation and drainage systems, and hydrogeological surveys requiring field velocity measurements in open channels.

Key Features
  • Designed for testing in sewage and polluted water environments
  • Simple structure with lightweight, portable design
  • Low power consumption with comprehensive functionality
  • High automation level with stable, reliable performance
  • Compliant with national standards for rotary slurry measurement
Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor
Technical Specifications
Measurement Formula KN
V = ------- + C(m/s) (automatic computer)
T
Instrument Constants K: 0.0500, C: 0.0100
Speed Range 0.01 - 10.00 m/s
Current Measurement Error ≤ 1.5%
Display LCD Liquid Crystal Display
Measurement Method Pole Positioning Measurement
Temperature Range -10°C to 50°C
Power Supply 4 * 7 Batteries
Backlight LED Backlight
Host Dimensions 75mm * 135mm * 25mm
External Power Supply 5V
Standard Accessories Speedometer, probe rod paddle, signal line, packaging box with instructions, helical blade, 6 extension rods, 2 spanners

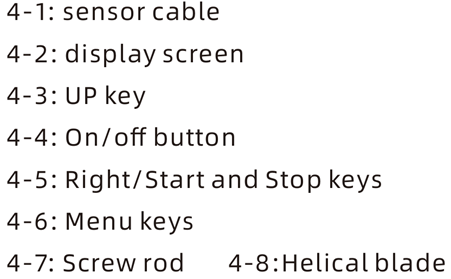

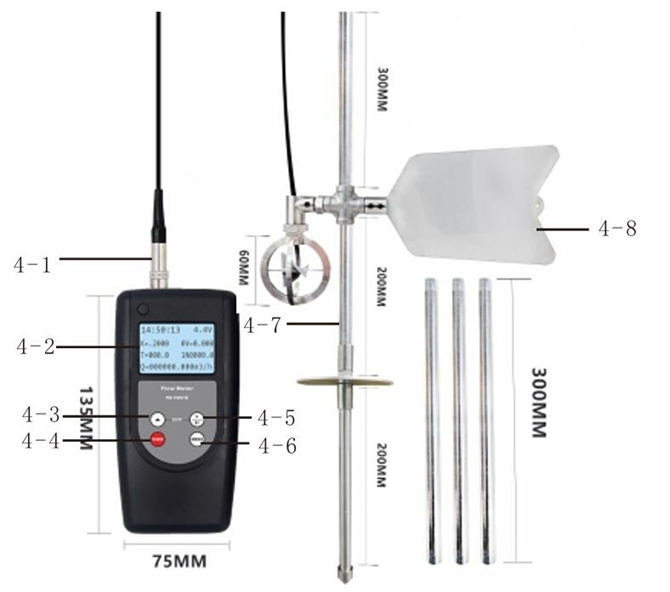

Product Structure
Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor

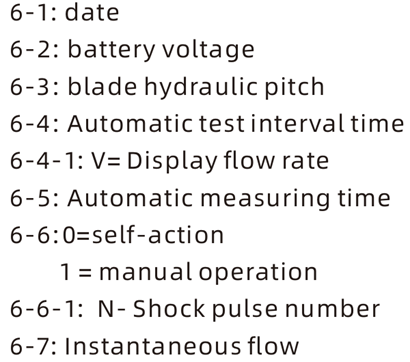

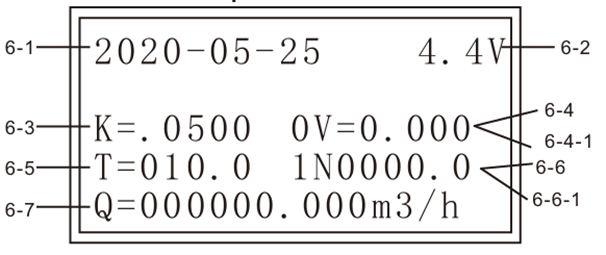

Control Panel
Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor

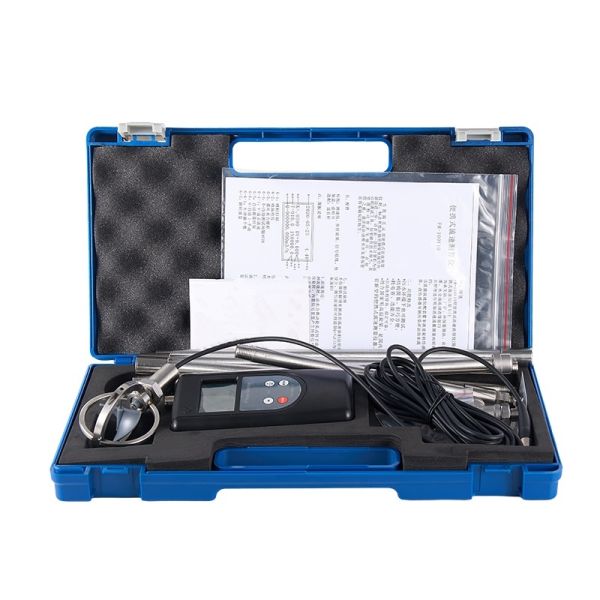

Packaging
Polluted Water Portable Flowmeter FM-100V10 with Hall Velocity Rotation Sensor
