P190 SS316/0.5 flow Plate HT with Gasket EPDM for Heat exchanger

Specifications

Brand Name :

Model Number :

P190

Certification :

ISO9001

Place of Origin :

china

MOQ :

20 pcs

Price :

$100/pack

Payment Terms :

T/T, Western Union, MoneyGram

Supply Ability :

100000 packs/month

Delivery Time :

5-8 days

Packaging Details :

wooden case

Plate Thickness :

0.5 mm

Plate Arrangement :

Parellel

Plate Length :

2544*984

Max Working Temperature :

Up to 170°C

Certifications :

ISO9001, CE, UL

Gasket Material :

EPDM

Gasket Glue :

Non-toxic, food grade

Material :

Stainless Steel

Plate Type :

Gasketed Plate

Heat Transfer Area :

0.19 m2

Max Working Pressure :

13 bar

Plate Width :

2544*984mm

Application :

HVAC, Refrigeration, Food & Beverage

Plate Connection :

button

Description

P190 SS316/0.5 Plate HT with Gasket EPDM for Heat exchanger

Detailed Product Description
1. Equal to APV P190 plate heat exchanger.
2. Plate gasket: NBR / EPDM/FKM
3. Plate material: 316L /304/Ti material/C276/904L
Same as APV P190 gasket plate heat exchanger, can replace original P190 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: Button
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry

Competitive Advantages Well and High Quality Control

Well and High Quality Control

P190 SS316/0.5 flow Plate HT with Gasket EPDM for Heat exchanger

Model

Corrugation Angle

Corrugation Depth (mm)

Angle Hole Diameter (mm)

Angle Hole Center Distance (mm)

Plate Size (mm)

Area of Plate (㎡)

P190

Vertical 120°

4.6

φ336

2137*570

2544*984

1.9

1. Plate material

*stainless steel AISI304(14301)

*stainless steel AIsI316(14401)

*Ti, ti-*Titanium and titaniumpalladium

Special steel *HASTELLoY alloy *254SMO

*20Cr,18Ni,,nickel(Ni) etc

2. Gaster material

*NBR,HT-NBR,HNBR

*EPDM,EPDM-NT,EPDM-HT

*CR

*Viton (FKM):Viton-A, Viton-G,Viton-B

3.Material Choose reference:

Plate material	Suitable for fluid
Stainless(AISI304,AISI316):	Clean water, river water, cooking oil, mineral oil
Ti,Ti-Pd:	Sea water, salt water, salt
20Cr,18Ni,6Mo(254SMO):	Dilute sulfuric acid, dilute salinized water solution, inorganic water solution
Ni:	High temperature, high viscosity caustic soda
HASTELLOY:	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Sealing material:	adapt temperature	Suitable for fluid
NBR	-15~+120℃	Water, sea water, cooking oil, salt water
HNBR	-15~+140℃	High temperature mineral oil, high temperature water
EPDM	-25~+170℃	Hot water, water vapor, acid, alkali
Viton	-5~+130℃	Acid, alkali, fluid

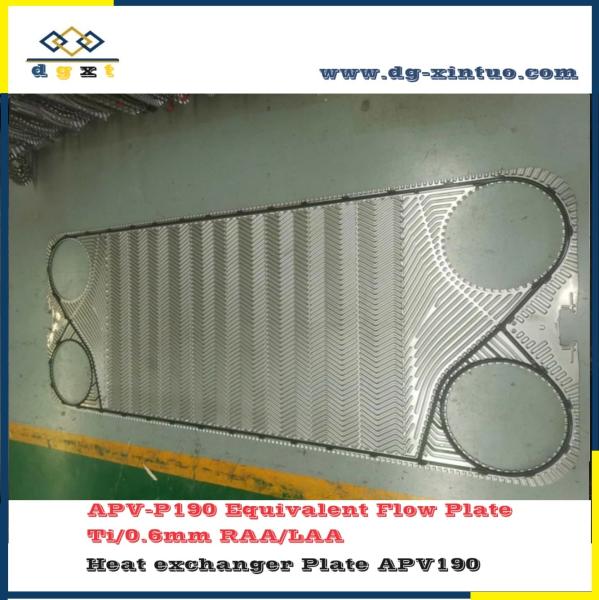

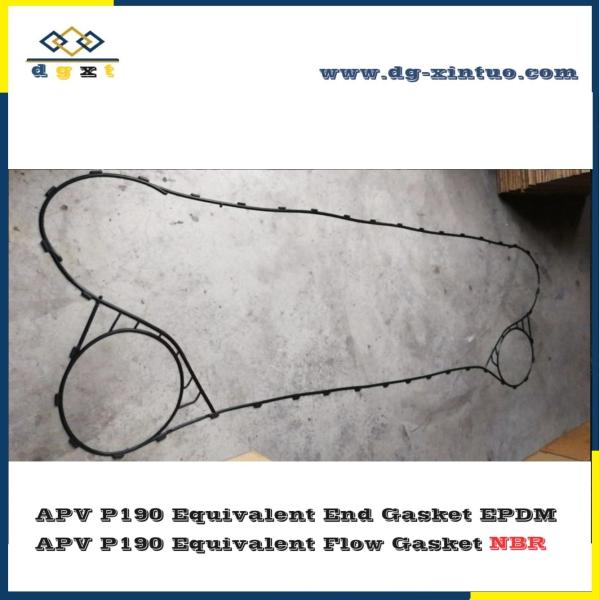

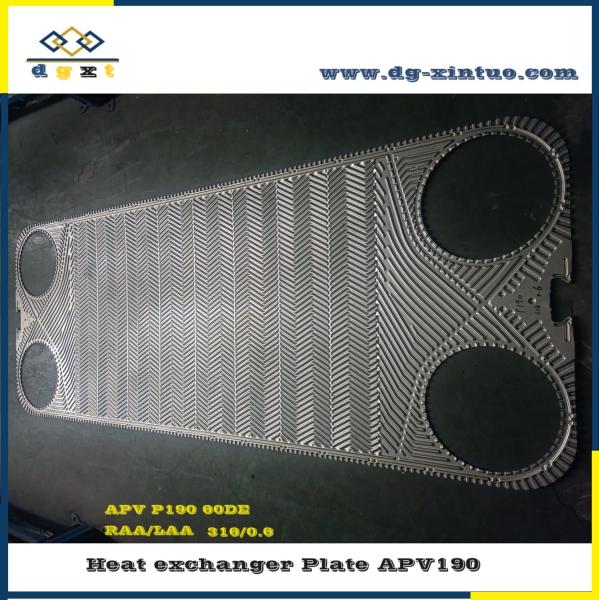

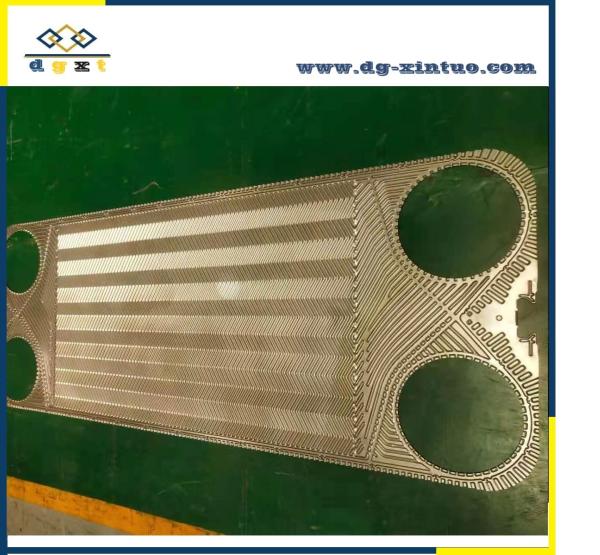

4.Poduct Show:

P190 SS316/0.5 flow Plate HT with Gasket EPDM for Heat exchanger

5.Other models

APV Heat Exchanger Plate Gasket
T4	Q030E	A085	M060	SR6AG	B134	TR9GN
H12	Q055E	A145	M092	R8GI	B158	TR9GL
H12 Water Generator	Q080E	J060	M107	SR9	B205	K34
H17	Q030D	J092	SR2	R10	P105	K55
N25	Q055D	J107	SR3	R14	P190	K71
N35	Q080D	J154	R5	B063	TR9AL	TR9AV
N50	A055	J185	SR6GL	B110	TR9AV	S190
S380	B063	B110

6.More Information about spares
