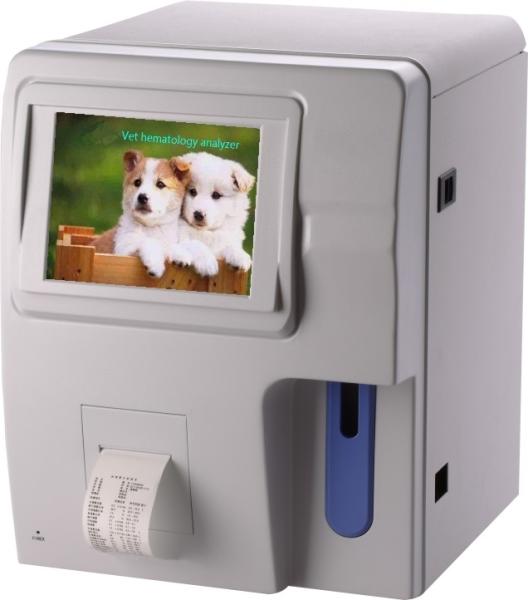

Hematology analyzer
SK8800Vet

Specification sheet

● Pre progammed for 10 animals plus addition 5 user-defined animals

● 3-part differentiation of WBC,23 parameters, single channel counter ,up to 35 samples test per hour

● Volume measurement by time ,not wrong warning

● Adanced valve technology,long life

● RS232 interface, PC connecting

● Electrical resistance for counting and SFT method of hemoglobin

● Low sample consumption : venous 9.8 ul, capillary 9.8 ul, pre-diluted 20 ul for twice testing one time

● 8.4” color TFT, Windows interface all testing parameter displayed simultaneously

● Windows operation system graphical buttons mouse and keyboard operation

● Double convolution and intelligent fitting

● Automatic diluting , Mixing , rinsing and clog clearing

● Automatically sample probe cleaning (inside and outside)

● Large storage capacity: up to 10,000 samples +3 histograms

● Internal thermal-sensitive printer or external printer.

● RS232 interface, PC connecting

Main Technical Specifications

Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, plus 5 user-defined animal settings

Methodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin

Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)

Work mode : Single Channel + unique Hemoglobin test system

Sample volume: 9.6μL for Venous and capillary mode, 20μL for pre-diluted mode

Throughput: More than 35 samples per hour, operate 24 hours a day, auto sleeping and waking-up functions

Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data

Operation langue: English

QC control : X-B, L-J, X , SD, CV %

Reference Value Setting : Male , Female, Children, Neonate

Alarm : 25 test of alert messages

Input / output : RS232, parallel printer and keyboard

Print : Graphic thermal printer with various printing format, optional external printer

Temperature : 18℃ - 30℃,wet ≤ 10-90%

Power supply : 220 V ±22 VAC, 50±1Hz

Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )

Weight : 20 KG

Precision

Parameters linear range CV %

WBC( 10 ⁹ / L ) 0.0 - 99.9 ≤2%

RBC ( 10¹² / L ) 0.0 - 9.99 ≤1.5%

MCV ( fL ) 40-150 ≤0.5%

PLT ( 10 ⁹ / L ) 0-999 ≤4.0%

HGB( g/L ) 0.0-300.0 ≤1.5%

Parameters

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR

3 –histograms : WBC,RBC and PLT
