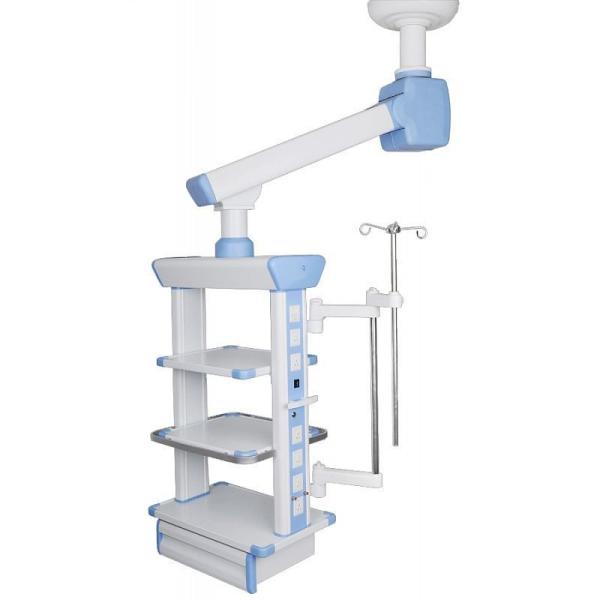

Electric abdonminal cavity pendant
Electric abdonminal cavity pendant
Specifications
Description
Single arm electric abdonminal cavity pendant, arm lifting

BR-PD03B

1)The activity range of Horizontal arm :( radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340 °;
2)Electric lift arm, lifting stroke 300mm.
3)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
4)The gas terminal interface standard configuration: oxygen 1pc, suction 1pc; air 1pc, CO2 1pc
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
5)Instrument platform: three layers (height adjustable); rounded bumper design., each weight load 30KG
6)Weight loading: 150kg;
7)Power supply: AC220V, 50HZ; AC110V, 60HZ
8)Electrical outlet: 8 pcs (220V / 10A);
9)Potential ground terminal: 2pcs;
10)The network interface: RJ45 1pc;
11)Drawer: 1pc;
12)Syringe pump rack 1pc, infusion pump rack 1pc
13)The main material: high-strength aluminum alloy;
14)The surface treatment using imported high-voltage electrostatic powder spray;
