Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
Specifications
Brand Name :
RUNNING
Model Number :
ZLJ/LBD-1200*830
Certification :
CE
Place of Origin :
QINGDAO CHINA
MOQ :
1 set
Price :
$7,000 ~ $9,000 / set
Payment Terms :
T/T, L/C
Supply Ability :
50 sets/month
Delivery Time :
7 work days
Packaging Details :
Plywood case (Fumigation free)
Usage :
conveyor belt splicing vulcanizing
Structure :
Aluminum Beam
Heating plate size :
1420*830mm
Plate shape :
Diamond
Pressurizing method :
Water pump
Overall size :
1680*830*710mm
Description

Water Pressure Type 1200mm Rubber Conveyor Belt Splicing Vulcanizing Machine

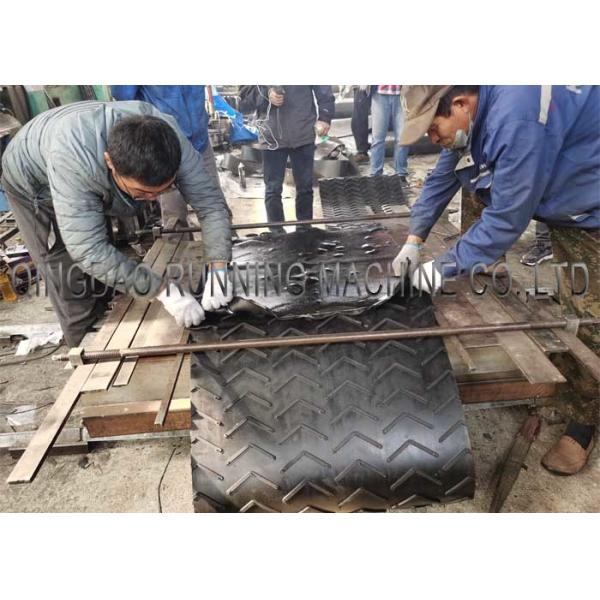

Conveyor belt splicing is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt.

According to actual requirement, there is Rectangle and Diamond shape machines for your choice.

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

Features:


1.Machine Maximum size: from 300MM-2000MM, or according the customer
2.Voltage: 220V 380V 415V 660V 50HZ;
3.Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4.Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5.The temperature difference of sulfide surface: ±2°c.

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

Machine specification of Rubber conveyor belt vulcanizing machine:

Model Applied Width(mm) Motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860


Advantages of conveyor belt vulcanizing:

Vulcanization improves the durability of the conveyor belt. The repaired belt can be used for a long time, thereby reducing the risk of repeated failures and equipment downtime.

The longevity of vulcanized splices is longer than that of mechanical splices.

Simple instruction of Conveyor belt vulcanizing:

Our conveyor belt splicing vulcanizing machine use rubber coated heating blanket, it has fast heating speed and is lightweight.

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

For pressurizing system of conveyor belt splicing vulcanizing machine, we adopt water pump + Water pressure bag, the pressure bag is made of rubber, it has advantages of lightweight, balanced pressure, lower leakage risk and no rusting risk.

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

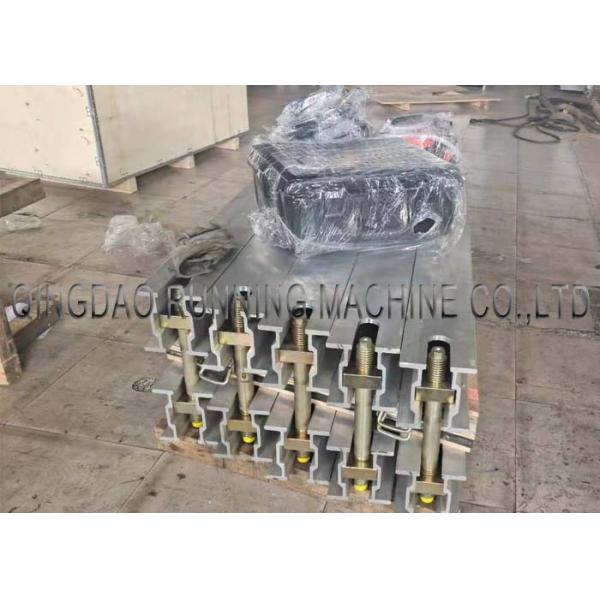

Package of conveyor belt splicing vulcanizing machine:

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine

For more machine details pelase feel free to contact us!

There are lots of other conveyor belt machines for your choice!

Water Pressure Type Rubber Conveyor Belt Vulcanizing Machine
