Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Z Type Bucket Elevator Horizontal Conveying And Vertical Lifting
Specifications
Brand Name :
Foshan Chengtong Machinery Co., Ltd.
Model Number :
Conveying capacity: 2 t/h, power: 3 kw
Place of Origin :
Guangdong Foshan
MOQ :
1
Price :
Calculate and formulate according to customers' requirements.
Payment Terms :
T/T
Supply Ability :
Stable, punctual and sufficient supply;
Delivery Time :
20-30 work days
Packaging Details :
Meet container requirements
Power :
Customized
Height :
Varies Based On Installation
Load Capacity :
Strong
Equipment color :
Customization based on needs
Description

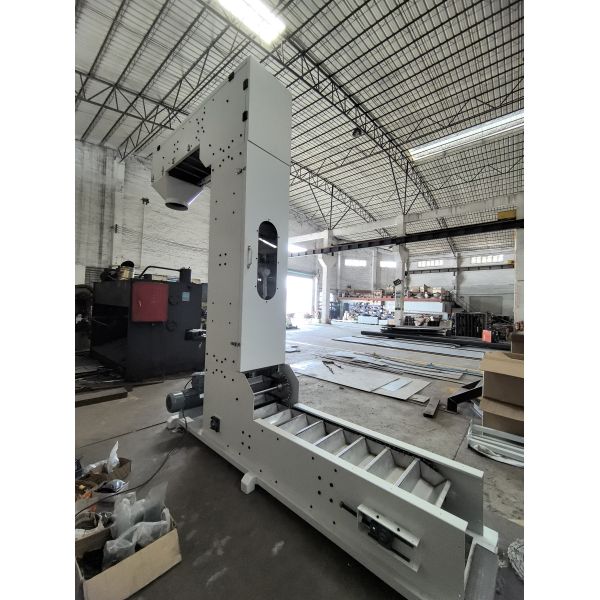

Z-Type Bucket Elevator
A material conveying device that combines horizontal conveying and vertical lifting, named for its Z-shaped configuration between inlet and outlet positions.
Working Principle
The reducer drives bucket and chain movement via bearings. Buckets follow an approximate Z-shaped trajectory with the chain. Materials enter through the feed inlet, are lifted to the top, then turn downward around the top wheel to discharge into the receiving trough. The system supports single-point or multi-point unloading via the discharge mechanism.
Structural Composition
  • Lifting buckets: Core component made from welded plates offering lightweight construction, high strength, and wear resistance
  • Chain system: Drives bucket movement
  • Transmission assembly: Powers chain operation via motor
  • Enclosure: Includes protective casing and covers
Bucket Speed 30.1 M/min
Reducer Ratio 23-47
Transmission Type Belt Drive
Operating temperature range -20°C To 80°C (can Be Customized)
Bucket Volume 0.6-2.0L/Customized
Height Varies Based On Installation
Load Capacity Strong
Equipment color Customization based on needs
Key Features
  • Fully enclosed structure prevents dust emissions and material leakage
  • Handles diverse materials including powders, granules, and small lump materials without damage
  • Compact footprint with flexible layout options reduces space requirements
  • Quiet, stable operation with easy maintenance access
Technical Specifications
Lifting height: 2-50 meters
Capacity range: 3-100 tons/hour
Model examples:
- Z300: 6.0-10.0 m³/hour
- Z400: 15.2-25.2 m³/hour
Custom configurations available per manufacturer specifications
Applications
Ideal for conveying non-sticky materials including granular coal, sand, fertilizers, and cement across industries:
  • Refractories
  • Chemical processing
  • Plastics manufacturing
  • Food & grain processing
  • Recycling operations
  • Hardware production
