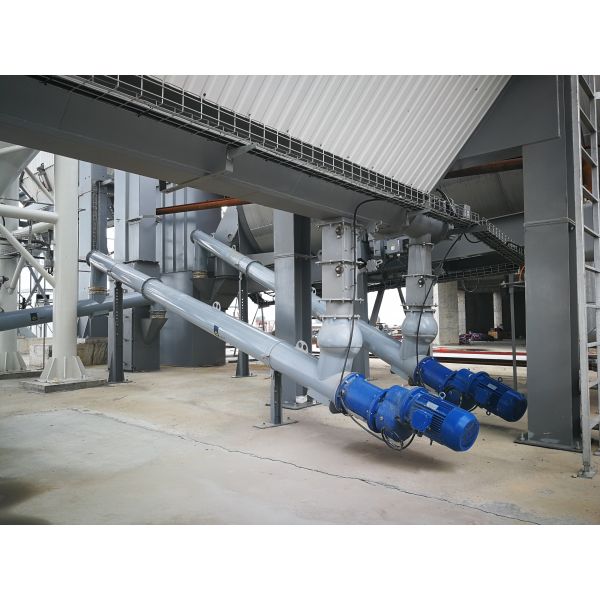

208r/Min 300r/Min 320r/Min 330r/Min WSY Circular Tubular Screw Conveyor Spiral Screw Conveyor
208r/Min 300r/Min 320r/Min 330r/Min WSY Circular Tubular Screw Conveyor Spiral Screw Conveyor
Specifications
Brand Name :
Foshan City Chengtong Machinery Co., Ltd.
Place of Origin :
guangdongfoshan
MOQ :
1
Price :
custom-made
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Stable, punctual and sufficient supply;
Delivery Time :
25-30 days
Packaging Details :
Meet container requirements
Power :
Customized
Height :
Varies Based On Installation
Load Capacity :
Strong
Equipment color :
Customization based on needs
Description
Scope of Application: It is widely applicable to various fields such as mines, cement, chemical industry, and sewage and sludge treatment in environmental protection projects. It is commonly used to convey lumpy, powdery, and abrasive materials, as well as cement concrete, sand, gravel, pulverized coal, etc. However, it is not suitable for conveying materials that are prone to deterioration, have excessive viscosity, or are likely to agglomerate.
Structural Features: The casing is a circular tube, generally made of seamless steel tubes, which has good sealing performance and can prevent environmental pollution caused by dust. There are two transmission forms: direct connection and chain drive. The reducer can be selected from a variety of types such as domestic cycloid pinwheel reducers according to user requirements. It can be designed with multiple feeding and discharging methods, such as end - feeding and end - discharging, and middle - feeding and two - end discharging.
Working Principle: The conveying purpose is achieved by the rotating spiral blades pushing the materials in the tube. Under the action of their own weight and the friction of the casing, bulk materials are pushed forward by the blades without rotating with the blades.
Material Selection: The materials can be carbon steel, manganese steel, 304 stainless steel, 316L stainless steel, etc., and can be selected according to different working environments and material characteristics.
Model WSY168 WSY219 WSY325 WSY377 WSY426 WSY500 WSY600
Screw Diameter (mm) Φ148 Φ199 Φ305 Φ355 Φ400 Φ472 Φ580
Screw Speed (r/min) 208 208 300 320 330 330 330
Capacity (m3/h) 16 30 70 90 170 360 500
Conveying Height (m) 8 14 8 14 8 14 12 19 7 14 8 10 10
Power (kW) 5.5 11 11 15 15 30 18.5 30 22 30 45 55 75
