National Economy Sectors Cleated Conveyor Belt Strong Load Capacity
National Economy Sectors Cleated Conveyor Belt Strong Load Capacity
Specifications
Brand Name :
Foshan City Chengtong Machinery Co., Ltd.
Place of Origin :
guangdongfoshan
MOQ :
1
Price :
custom-made
Payment Terms :
L/C,D/P,T/T
Supply Ability :
Stable, punctual and sufficient supply;
Delivery Time :
25-30 days
Packaging Details :
Meet container requirements
Model Number :
TD75 (Standard) / DT-II (Advanced/International).
Application :
National economy sectors (Energy, Transport, Mining).
Series Models :
TD75 (Standard) / DT-II (Advanced/International).
Belt Widths :
7 Standard widths available.
Belt Speeds :
5 Operational speed levels.
Belt Strengths :
10 High-tensile strength tiers.
Conveying Capacity :
400 – 9,600 .
Operating Temp :
-20°C to +40°C.
Unit Length :
Capable of several kilometers (Single unit).
Elongation :
20% of ordinary belts (1/5 elongation)
Service Life :
2x – 3x longer than fabric belts.
Incline Limits :
Horizontal/Small-angle for explosion-proof models.
Power :
Customized
Height :
Varies Based On Installation
Load Capacity :
Strong
Equipment color :
Customization based on needs
Description

belt conveyor

Belt conveyor is a kind of continuous transportation equipment that uses conveyor belts as traction and load - bearing components. The following is its relevant introduction:

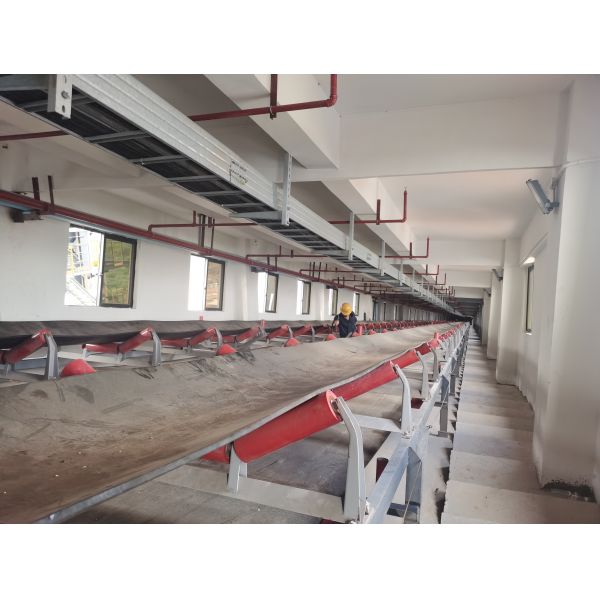

National Economy Sectors Cleated Conveyor Belt Strong Load Capacity

Structural Composition

It mainly consists of conveyor belts, troughed idlers, parallel idlers, self - aligning idlers, impact idlers, driving devices, tensioning devices, frames, loading devices, cleaners, braking and anti - reverse devices, etc.

Working Principle

The motor of the driving device transmits power to the driving drum through a reducer. The tensioning device presses the conveyor belt tightly against the driving drum to generate friction. The rotation of the driving drum drives the conveyor belt to operate. Materials are added to the conveyor belt at the loading point of the tail. They move with the belt to the unloading point at the head and are unloaded. After the conveyor belt bypasses the head and tail drums, it returns with the support of the lower idlers, forming an endless closed loop.

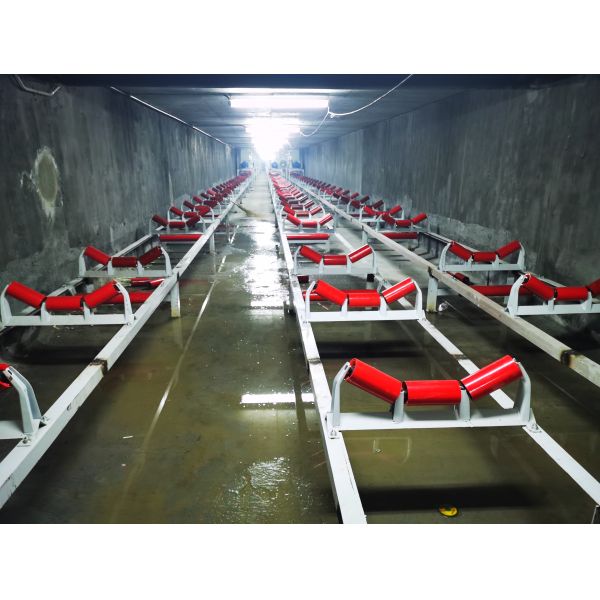

National Economy Sectors Cleated Conveyor Belt Strong Load Capacity

Characteristics

It has advantages such as large conveying capacity, long conveying distance, simple structure, low operation and maintenance cost, low energy consumption, high reliability, stable operation, and strong adaptability to materials. However, it also has disadvantages such as high initial investment, fixed conveying route, limited inclined conveying angle, and requirements for material characteristics of ordinary belts.

Application Fields

It is widely used in many industries such as mining, construction, power, metallurgy, chemical industry, grain, ports, and environmental protection. It can be used to transport bulk materials such as ores, coal, concrete, grains, as well as packaged items such as bagged cement and parcels.
