Precision Brazing for Hermetic, High-Strength, and High-Reliability Seals

In the realm of high-integrity metal packaging for aerospace, military, and medical devices, achieving a perfect hermetic seal is non-negotiable. Tailord's Nitrogen-Hydrogen Atmosphere Mesh Belt Brazing Furnaces are precision-engineered to deliver the exacting environment required for flawless metal-to-metal joining. By combining a precisely controlled reducing atmosphere with an exceptionally uniform thermal profile, our furnaces ensure the formation of strong, void-free, and oxidation-free braze joints that guarantee long-term reliability under the most demanding conditions.

Key Applications & Process Advantages for Metal Packaging Brazing:

1. Hermetic Sealing of Critical Enclosures: Excellently suited for creating gas-tight seals in packages for MEMS sensors, RF/microwave modules, and implantable medical devices. The process ensures the internal atmosphere remains pristine, protecting sensitive components from moisture and contaminants throughout their operational life.

2. Powerful Oxide Reduction for Optimal Wetting: The hydrogen component in the atmosphere actively reduces surface oxides on the base metals (such as Kovar, stainless steel, or copper) and the brazing filler metal (e.g., Au-Sn, Ag-Cu). This is absolutely critical for achieving perfect filler metal flow and wetting, which forms the foundation of a strong, continuous joint.

3. Precise Thermal Profile Control for Eutectic Alloys: Mastering the brazing of eutectic alloys like Au80Sn20 is our specialty. Our multi-zone furnaces provide the sharp, well-defined temperature profile necessary to melt the filler metal completely, allow it to flow via capillary action, and then solidify rapidly, forming a reliable intermetallic bond without overheating delicate components.

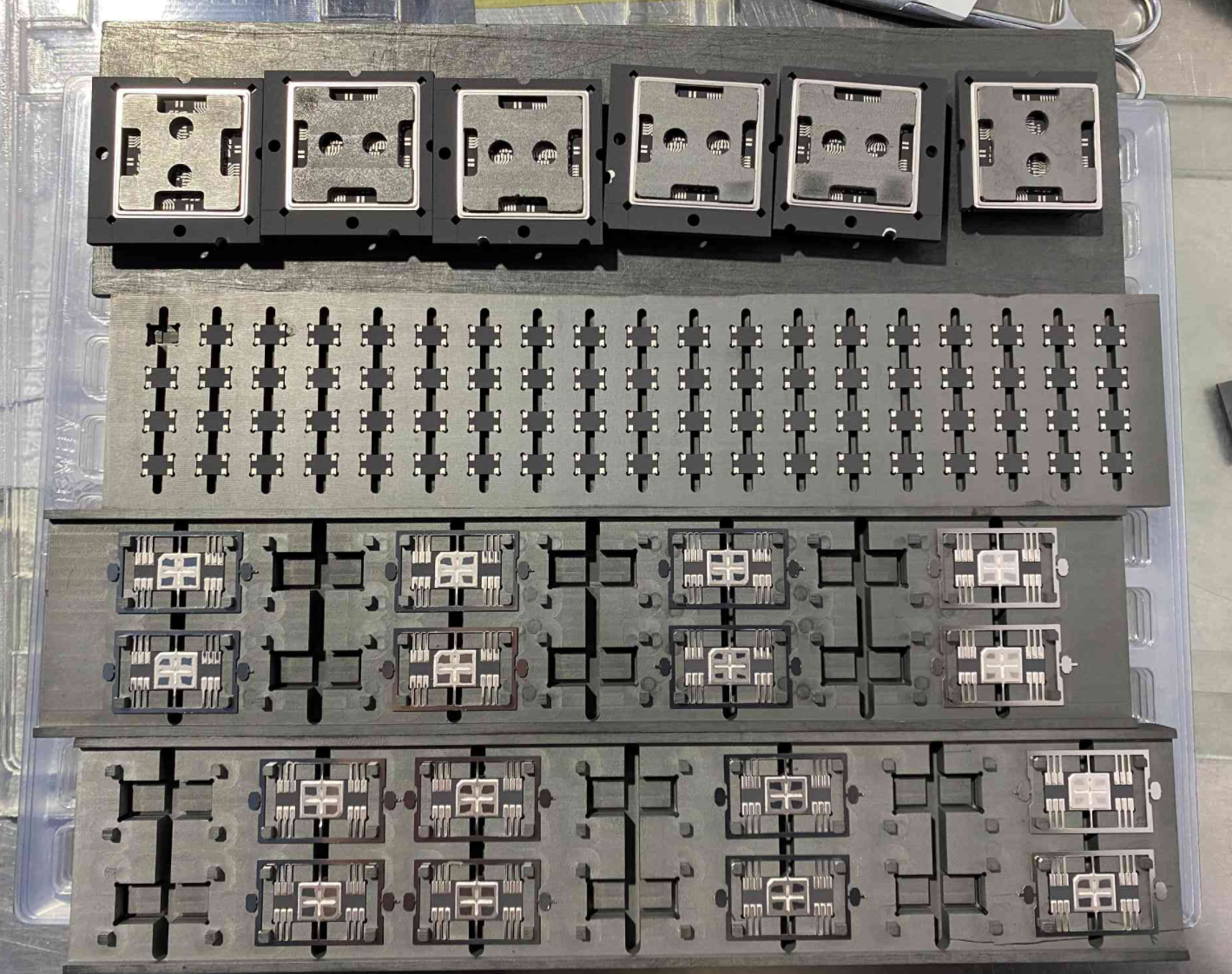

4. High-Yield, Continuous Mass Production: The mesh belt design enables a continuous flow of components, making it ideal for the high-volume production of standardized packages like TO headers, DIPs, and butterfly laser packages. This dramatically increases throughput compared to batch furnaces.

5. Uniform Heating for Complex Multi-Stage Assemblies: For packages with multiple braze joints at different levels, our furnaces' exceptional temperature uniformity (±3°C) ensures that all joints within a single assembly reach the brazing temperature simultaneously, preventing re-melting of previously formed joints and ensuring dimensional stability.

6. Bright Brazing with Mirror-Finish Surfaces: The reducing atmosphere prevents oxidation entirely, resulting in components that exit the furnace with bright, clean, and oxide-free surfaces. This eliminates the need for post-brazing cleaning, reduces costs, and is essential for packages requiring subsequent plating or welding.

7. Minimized Thermal Stress on Sensitive Components: The controlled ramp-up and cool-down rates minimize thermal shock to the entire assembly. This is vital for preventing cracking in ceramic feedthroughs, delamination in baseplates, and damaging heat-sensitive semiconductor dies already mounted inside the package.

8. Flux-Free Brazing Process: The active hydrogen atmosphere eliminates the need for chemical fluxes. This prevents flux residue contamination, which can cause corrosion, virtual leaks, and degradation of electrical performance in high-reliability applications. The process is inherently cleaner and more reliable.

9. Precise Atmosphere Purity and Dew Point Control: Our systems offer precise control over the N₂-H₂ gas mixture ratio and maintain an extremely low dew point (< -40°C). This ensures consistent oxide reduction capability and prevents any moisture-related oxidation during the critical brazing cycle.

10. Ensuring Long-Term Performance in Harsh Environments: A perfectly formed, flux-free, and void-free braze joint is highly resistant to thermal fatigue and corrosion. This directly translates to the long-term hermeticity and mechanical integrity required for packages deployed in aerospace, downhole, and other extreme environments.

Partner with Tailord to seal your success. Our brazing solutions provide the foundational technology for metal packages that protect the world's most critical and sensitive electronic systems.

• Industrial PC integrated control system
• Ultrasonic mesh belt cleaning system
• Profiling test thermocouple
• Exhaust gas treatment system
• UPS Power Supply
• Industrial chiller
