1. Main Application:

This machine is designed for drying process of electronic components, electronic ceramics or relevant materials.

2. Technical Specification:

2.1. Max Temperature: 250℃,Rated Temperature: 200℃

2.2. Effective Products Height: ≤80mm

2.3. Belt Width: 600mm

2.4. Belt Material: Nickel-Chromium Alloys

2.5. Max Load on the Belt: 25kg/m² (exclude the belt weight)

2.6. Drive System: Big wrap angle friction drive

2.7. Belt Speed: 60-480mm/min

2.8. Heating Method: Nickel-Chromium Alloy Resistance Coils

2.9. Chamber Material: Stainless Steel

2.10. Heating Method: Hot air circulation

2.11. Atmosphere: Air

2.12. Exhaust System: exhaust between each temperature zone

2.13. Cooling Mode: Forced Air Cooling

2.14. Temperature Control Stability: ±1℃

2.15. Chamber Temperature Uniformity: ±4℃

2.16. Temperature Zone: 6 Zones

2.17. Temperature Control Point: 12 points

2.18. Thermocouple: Type K

2.19. Heating Rate: ≤20℃/min

2.20. The Temperature of Furnace Surface: < 35℃

2.21. Heating Power: 48kW

2.22. Insulation Power: ≤ 16kW

2.23. Weight: about 1200kg

2.24. Overall Dimension: 4640×1200×1400mm (L×W×H)

2.25. Furnace Appearance: Light Grey

3. General Description

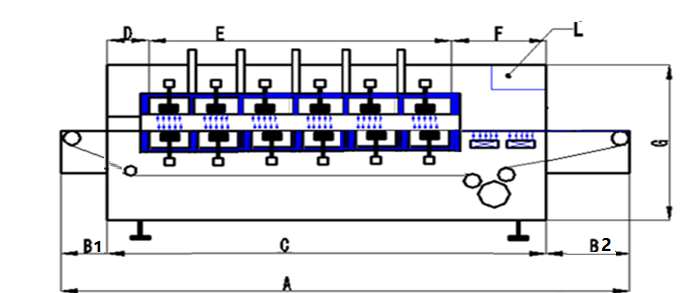

The furnace is divided into three major sections: furnace body, temperature control system and drive system.

3.1 Furnace Body Design

Table 1

3.2 The Design of Temperature Control System

a. Temperature Measuring: use K type thermocouple independent measuring and control on the temperature control point of each zone.

b. Temperature Control: Intelligent temperature controller with PID parameter auto tuning, high temperature upper limit alarm, thermocouple failure and other protective alarm functions.

c. Heating Control System: When the hot air circulation is running, the heating can be switched on.

d. Control Mode:Solid state relay zero cross trigger mode.

e. Over Temperature Alarm: when over temperature occurred in some zones, over temperature alarm system in corresponding zones immediately send audible and visual alarm signal and meanwhile the heating of this zone is cut off, other zones normally work, the buzzer sounds alarm.

3.3 Drive System Design

a. Drive Control uses Stepless speed regulation motor with servo controller, to control the speed by gear box. The speed is adjustable continually.

b. Belt conveyor device: to drive the driving and drived wheel through chain and sprocket wheel, and then generate the friction force by driving wheel and the belt drive the belt running.

4. Equipment Composition

Packing List is as below:

5. Equipment Condition

5.1 Equipment Transportation and Onsite Installation

a. The Transportation mode: integral transportation, the total length of the furnace is 4640 mm, the width is 1200mm, the height is 1400mm.

b. Unload & Installation Equipment: 2 hydraulic forklifts with 2 ton capacity (or 1 crane with 5 ton).

c. Unpack and Location: When the equipment arrived, the customer inspects the furnace for damage, if everything is good, unload and place the furnace to the desired location.

d. Preparation before Installation: The power and exhaust hood and other conditions must be prepared by the customer before installing the equipment. Please see “Facilities Requirements” for details.

e. Others: the unloading, location and outside wiring, exhaust hood of the equipment must be prepared by the customer.

5.2 Facilities Requirements

a. Environment Condition: Temperature 0~40℃, Humidity: < 80%RH, no corrosive gas, no strong air current.

b. Ventilation System: non-contact exhaust system; exhaust capacity is more than 50m³/h.

c. Ground: level, no obvious vibration, load bearing＞500kg/m².

d. Power(TBD): Capacity great than 65 kVA, 3 Phases 5 Lines, Voltage: 220/380V , Frequency 50HZ, the cable’s color: Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green.

e. Installation Area: more than 7000×3000×3000mm(L×W×H)Installation, area more than 21m² .
