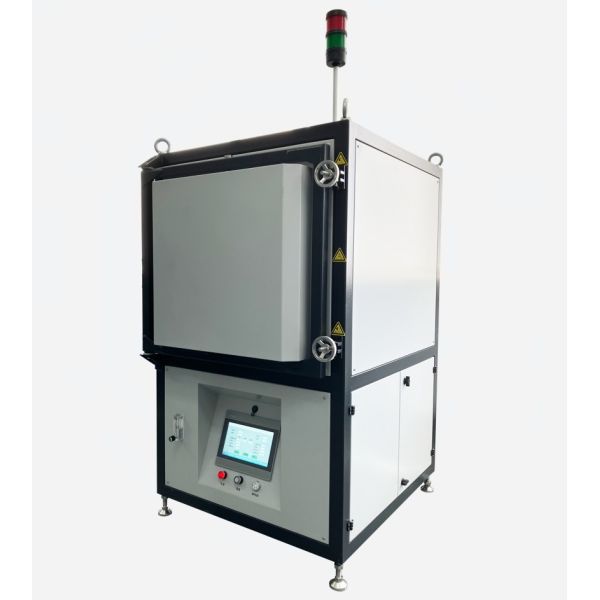

20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom
20kW Debinding And Sintering Furnace Vertical Heat Treat Oven Custom
Specifications
Brand Name :
Tailord
Model Number :
HBF50-14
Certification :
ISO9001:2015
Place of Origin :
Hefei, China
MOQ :
1 Unit
Supply Ability :
100 Pcs/Year
Delivery Time :
75-100 Days
Packaging Details :
Wooden Packages
Price :
USD 70,000-90,000/Unit
Payment Terms :
L/C,T/T
Description
1. Application:

This equipment is mainly designed for sintering process of Electronic Ceramics, Magnetic Materials and other relevant materials.

2. Technical Specification:

  1. Nominal working Temp.: 1300ºC
  2. Max Temp.: 1400ºC
  3. Atmosphere: Air
  4. Effective Chamber Dimensions: 300mm×200mm×550mm(W×H×D)
  5. Max. Heating Power: 20kW
  6. Loading Method: Corundum Mullite Setter
  7. Heating Method: SiC Rods ( up and down of chamber)
  8. Temp. Uniformity: ± 5ºC ( tested in 1 hour insulation at 1300ºC)
  9. Thermcouple: Type S
  10. Temperature Control: 1 Point (controller with P.I.D function)
  11. Exhaust System: 1 exhaust port behind chamber with manual adjustment
  12. Alarm System: audible and visual alarm in case of Over temp, thermcouple broken, low air pressure, etc
  13. Furnace Surface Temperature ≤ 40ºC
  14. External Dimensions: 1150mm×1970mm×1300mm(W×D×H)
