4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
Specifications
Brand Name :
Hensghou
Model Number :
HSODM10
Certification :
ISO SGS
Place of Origin :
China
MOQ :
1set
Price :
$3999-7899 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 set per month
Delivery Time :
30-40 days
Packaging Details :
1. Standard import and export wooden case 2. According to customer requirements, the packaging method can be negotiated.
Product Name :
Pepper Oven Dryer
Dryer Capacity :
600KG
Tray Number :
60 trays
Dimension(L*W*H) :
5000*2300*2000mm
Description

4 Trolley Dried Peppercorn Star Anise Oven Dryer Machine Spicy Heat Pump Tray Dryer

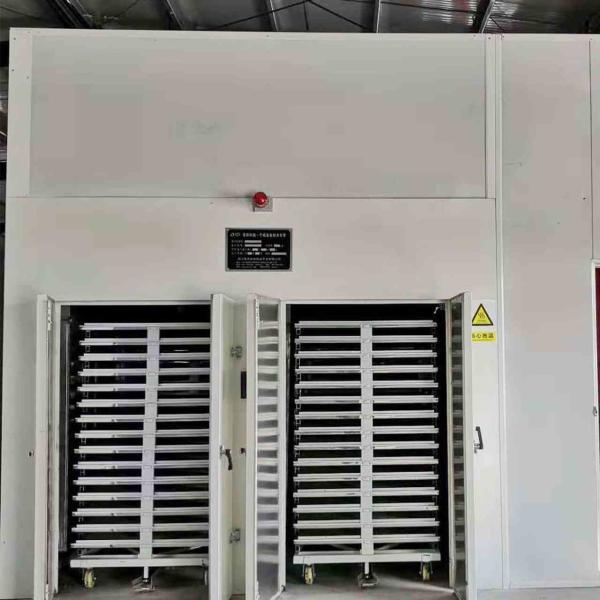

The oven dryer machine is composed of a heating room and a material room. The main equipment includes heating equipment, ventilation and moisture removal equipment, and temperature and humidity control equipment. The multi-stage intelligent setting control drying mode has the characteristics of high efficiency, energy saving, green environmental protection, precision and intelligence. It is very suitable for small processing enterprises or personal use with a daily processing capacity of less than 5 tons.

THE OVEN DRYER STRUCTURAL FEATURES

1. The whole box adopts a fully enclosed structure, and the hot air is recycled inside, which is energy-saving and efficient;

2. The thickness of the insulation layer is 80~200mm, and high-density rock wool or ultra-fine aluminum silicate fiber wool is used to further reduce heat loss;

3. There is an adjustable air distribution plate in the box, which can adjust the gap size up and down to control the air flow and make the temperature in the box more uniform;

4. The heat source can be electricity (380V/50Hz), steam (0.2~0.8MPa), hot blast stove (firewood/coal/oil/gas), etc.;

THE CABINET TRAY DRYER PARAMENTERS

Model 5HF4 5HF6 5HF8 5HF10 5HF12
Trolley 4 6 8 10 12
Tray Total 60 trays 90 trays 120 trays 150 trays 180 trays
Tray Size(mm) 1400*900 1400*900 1400*900 1400*900 1400*900
Tray Capacity (Kg) 12-20 12-20 12-20 12-20 12-20
Tray Material Plastic, Stainless Steel 304,304L,316
Drying Capacity (kg/T) 600-1000kg 1000-2000kg 1500-2500kg 1800-3000kg 2000-4000kg
Chamber Dimension (mm) 5000*2300*2000 6600*2300*2000 8000*2300*2000 7000*3300*2000 8000*3300*2000
Total Power (kw) 26kw 40kw 48kw 51.5kw 57kw

4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG

THE MATERIAL APPLICATION

Widely Used by Oven Dryer

Fruit: mango,durian, pineapple, avocado, dragon fruit, fig, etc.;

Vegetable: Okra, sweet potato, potato, pumpkin, fungus, mushroom, etc.

Condiments: pepper,anise,garlic,onion,cinnamon;

Herbal Medicine: Lily, bergamot, angelica, wolfberry, ginseng, rehmannia, etc.

4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG

THE COMPANY PROFILE

4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG

THE PATENT CERTIFICATE

4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG

THE SHIPMENT AND PACKGAGE

4 Trolley Peppercorn Star Anise Oven Dryer Machine Heat Pump Tray Dryer OEM 600KG
