100KN Electronic Universal Testing Machine for Tensile Compression Bending
100KN Electronic Universal Testing Machine for Tensile Compression Bending
100KN Electronic Universal Testing Machine for Tensile Compression Bending
100KN Electronic Universal Testing Machine for Tensile Compression Bending
Specifications
Max. force :
100KN
Test Types :
Tensile, Compression, Bending, Shear, Peel, Adhesion, Etc.
Data Output :
USB, RS232
Test Software :
Windows
Power Supply :
220V/50Hz
Accuracy :
±1%
Product name :
Maximize Your Testing Efficiency with Electronic Universal Testing Machine
Test width :
520mm
Brand Name :
JHH
Model Number :
XWW-100KN
Certification :
ISO9001 CE
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
20 sets per month
Delivery Time :
7 -15 days
Packaging Details :
Standard wooden box
Dimension :
1000mm*800mm*2000mm
Description
Electronic Universal Testing Machine

Maximize your testing efficiency with this versatile and robust instrument for evaluating material strength across diverse applications including tensile, compression, bending, shear, peel, and adhesion tests.

Key Specifications
Attribute Value
Max. Force 100KN
Accuracy ±1%
Test Width 520mm
Test Types Tensile, Compression, Bending, Shear, Peel, Adhesion, etc.
Power Supply 220V/50Hz
Test Software Windows
Dimension 1000mm * 800mm * 2000mm
Data Output USB, RS232
Product Features
  • Versatile testing capabilities for multiple material types
  • Advanced safety protections: Overload, Over-travel, Over-voltage, Over-current
  • Wide test force range from 1-100kN
  • Multiple data output options including USB and RS232
  • Windows-based test software for easy operation
  • Computer-controlled data acquisition system
  • Adjustable test speeds from 0.001 to 500mm/min
Technical Parameters
Parameter Detail
Test Force Range 1-100kN
Tensile Space 600mm
Stroke 1000mm
Test Speed Range 0.001-500mm/min
Data Acquisition Computer
Applications

This universal testing machine is essential for:

  • Materials testing laboratories and R&D centers
  • Quality control in manufacturing processes
  • Development of new materials and composites
  • Performance evaluation of metals, plastics, and elastomers
  • Research into material properties and behavior
Customization Options

We offer tailored solutions to meet specific testing requirements, including customized tensile spaces and specialized data output configurations.

Support & Services
  • 24/7 technical support for installation and operation
  • On-site and remote service options
  • Installation, calibration, and maintenance services
  • Comprehensive operator training programs
Frequently Asked Questions
What is an Electronic Universal Testing Machine?

An instrument designed to evaluate material strength and performance under various loading conditions, used for testing tensile strength, compressive strength, elasticity, and ductility.

What materials can be tested?

Metals, plastics, composites, elastomers, and various other materials.

What is the maximum load capacity?

This model has a maximum capacity of 100kN.

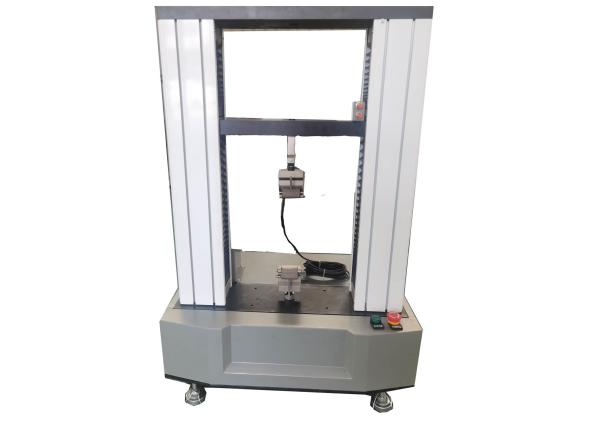

Product Images
100KN Electronic Universal Testing Machine for Tensile Compression Bending 100KN Electronic Universal Testing Machine for Tensile Compression Bending 100KN Electronic Universal Testing Machine for Tensile Compression Bending
