HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
Specifications
Delivery Time :
5~10 work days
Product Category :
HDT VICAT Testing Machine
Temperature control range :
Room temperature ~300℃
Test Stations :
6
Place of Origin :
BEIJING, CHINA
Brand Name :
JINHAIHU
Deformation Measurement Range :
-1.00～10.00mm
Maximum Deformation Measurement Error :
0.01mm
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
15 sets per month
Model Number :
XRW-300BT-Ⅵ
Packaging Details :
Standard export wooden cases
Test Standards :
ISO75-1, ISO306, ASTM D 1525, ASTM D648, DIN EN 727
Certification :
ISO9001 , CE
MOQ :
1 set
Heating Medium :
Silicone oils, glycerine, ethylene glycol, mineral oil
Product Name :
HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
Description

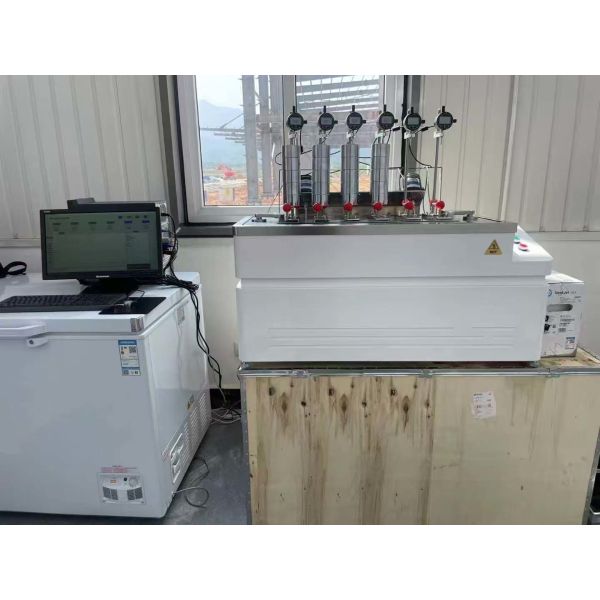

HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function
Product Overview

The Computer-Controlled HDT Vicat Testing Machine, featuring an automatic lifting function for the sample holder, is specially designed to measure the heat deflection temperature and Vicat softening temperature of plastic, rubber and other relevant materials.

This instrument serves as an essential testing device for scientific research institutions, universities and colleges, as well as enterprise quality control departments.

Application Areas

Thermal Deformation Temperature: Primarily used to characterize the thermal deformation behavior of materials under actual loading conditions, serving as a key indicator for evaluating structural stability and performance in high-temperature environments.

Vicat Softening Point: Mostly used for quality control of polymer materials and as a reference index to identify thermal properties of new material grades. Note: This does not represent the actual service temperature of the material.

Test Methods

Thermal Deformation Temperature Test: Mount the sample on a support with specified span, apply designated load, and place in temperature-increasing environment. When deformation reaches predefined value, the recorded temperature is the thermal deformation temperature.

Vicat Softening Point Test: Place sample in heating medium and use standard pressure pin to press against sample under certain load. When pressure pin penetrates sample to depth of 1mm, the recorded temperature is the Vicat softening point.

Instrument Characteristics
  • Equipped with intelligent PID regulation for precise heating rate control and consistent temperature distribution
  • Applicable for thermal deformation tests of various standard test specimens
  • Capable of conducting Vicat softening point tests of various standard test specimens
  • Enables simultaneous execution of thermal deformation and Vicat softening point tests
  • User-friendly computer operation interface with automatic load calculation
  • Two selectable heating rates for simple and efficient operation
  • Automatic shutdown when test is completed or upper temperature limit is exceeded
  • Dual over-temperature protection (software-based and external mechanical protection)
  • Diversified report configuration options and comprehensive report printing function
  • Capable of completing comparative tests of multiple samples simultaneously
Test Standards

GB/T1633, GB/T1634, GB/T8802, ISO75-2013, ASTM D 648, ASTM D 1525, DIN EN727

Technical Parameters
Parameter Specification
Model XRW-300BT-Ⅵ
Temperature control range Room temperature ~300℃
Maximum temperature error ±0.5℃
Heating rate 50℃/h, 120℃/h, or set between 50-120℃/h
Temperature measurement point 1
Test frame number 6
Range of deformation measurement -0.1~10mm
Maximum deformation error ±0.005mm
Deformation resolution 0.001mm
Sample support span 64mm, 100mm
Load bar and press (needle) weight 74g
Voltage and power 220V, 6KW
Thermal expansion coefficient of sample <0.005/100℃
Working medium Methylsilicone oil or transformer oil
Cooling-down method Natural cooling above 150℃, water cooling below 150℃ or natural cooling
Frequently Asked Questions
What is the brand of the VICAT Testing Machine?
The brand of the VICAT Testing Machine is JINHAIHU.
What is the model designation?
The model designation is XRW-300F.
What certification has the machine obtained?
ISO9001 quality management system certification and CE.
Where is it manufactured?
Manufactured in Beijing, China.
What is the minimum order quantity?
Minimum order quantity is 1 set.
What is the supply capacity?
Monthly supply capacity is 15 sets.
What is the lead time?
Lead time is 10~15 working days.
How is it packaged for shipment?
Packaged in standard export wooden crates for safe transportation.
What payment terms are available?
T/T, L/C, D/A, D/P, Western Union.
Product Images
HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing HDT VICAT Testing Machine with Computer Control and Automatic Sample Holder Up and Down Function for Precise Material Testing
