HDT VICAT Testing Machine Used in Scientific Research Production and Teaching for Thermoplastic Hot Deformation Testing
HDT VICAT Testing Machine Used in Scientific Research Production and Teaching for Thermoplastic Hot Deformation Testing
HDT VICAT Testing Machine Used in Scientific Research Production and Teaching for Thermoplastic Hot Deformation Testing
HDT VICAT Testing Machine Used in Scientific Research Production and Teaching for Thermoplastic Hot Deformation Testing
Specifications
Delivery Time :
10~15 work days
Test stations :
4
Model Number :
RV-300C
Current source :
4KW, 220VAC, 50HZ
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Maximum deformation measurement error :
0.005mm
Supply Ability :
15 sets per month
Heating rate :
120±10℃/h 、 50±5℃/h
Span of sample supports :
64mm, 100mm
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Maximum temperature error :
±0.5℃
Deformation measurement range :
0～3mm
Certification :
ISO9001, CE
Place of Origin :
BEIJING, CHINA
Product name :
HDT VICAT Testing Machine Used in Scientific Research Production and Teaching for Thermoplastic Hot Deformation Testing
Brand Name :
JINHAIHU
Description

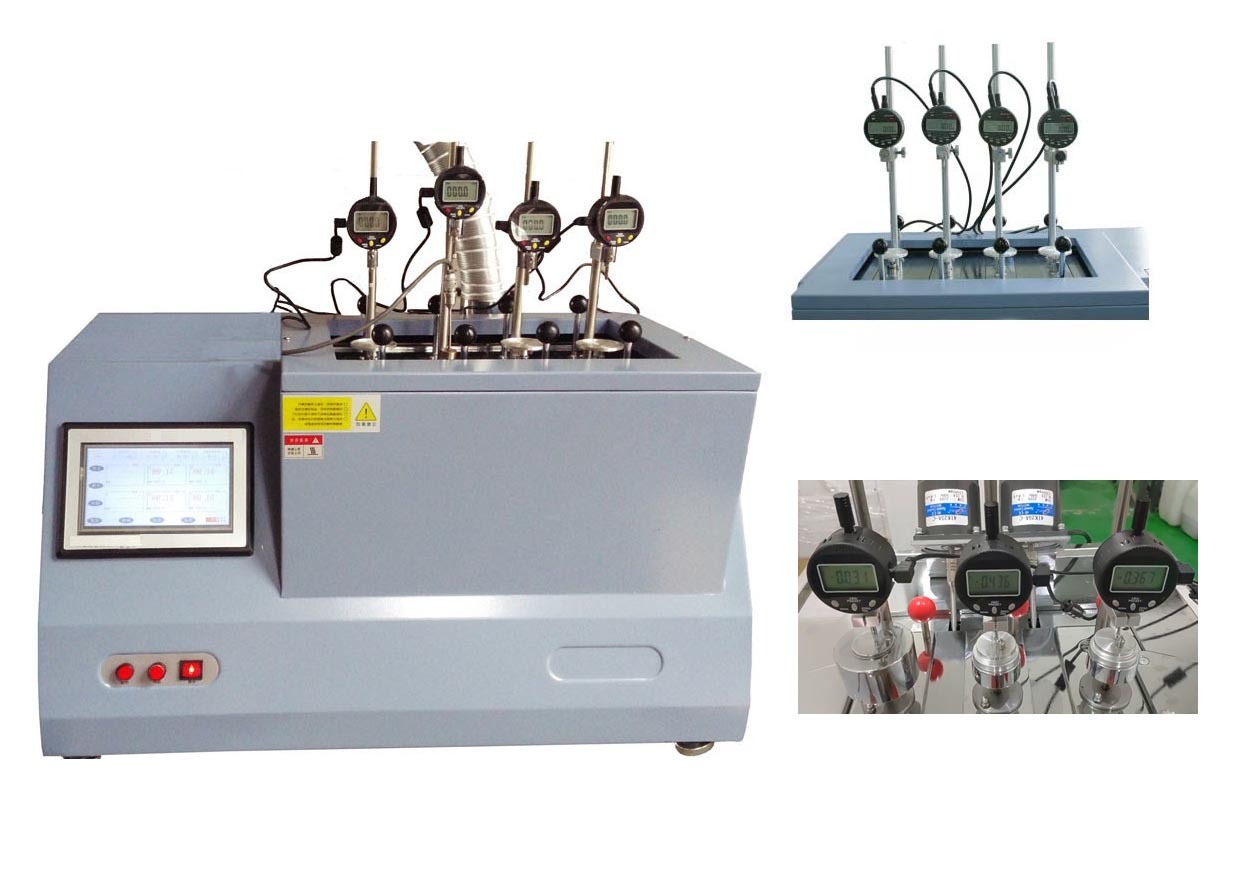

HDT VICAT Testing Machine for Thermoplastic Hot Deformation Testing
The HDT VICAT Testing Machine is designed to determine the hot deformation temperature of thermoplastic materials and Vicat softening point temperature. This professional testing equipment is widely applied across plastic product manufacturing, raw material inspection, scientific research, and educational environments.
Key Features
  • Compact structural design with elegant exterior appearance and stable performance
  • Integrated oil fume removal, odor purification, and cooling functions
  • Advanced MCU (Multi-point Micro Control Unit) control system for automatic measurement
  • Automatically controls temperature and deformation parameters, calculates test results
  • Stores up to 10 sets of test data
  • Color touch screen display with Chinese/English bilingual options
  • Computer connectivity for automated operation with WINDOWS English interface software

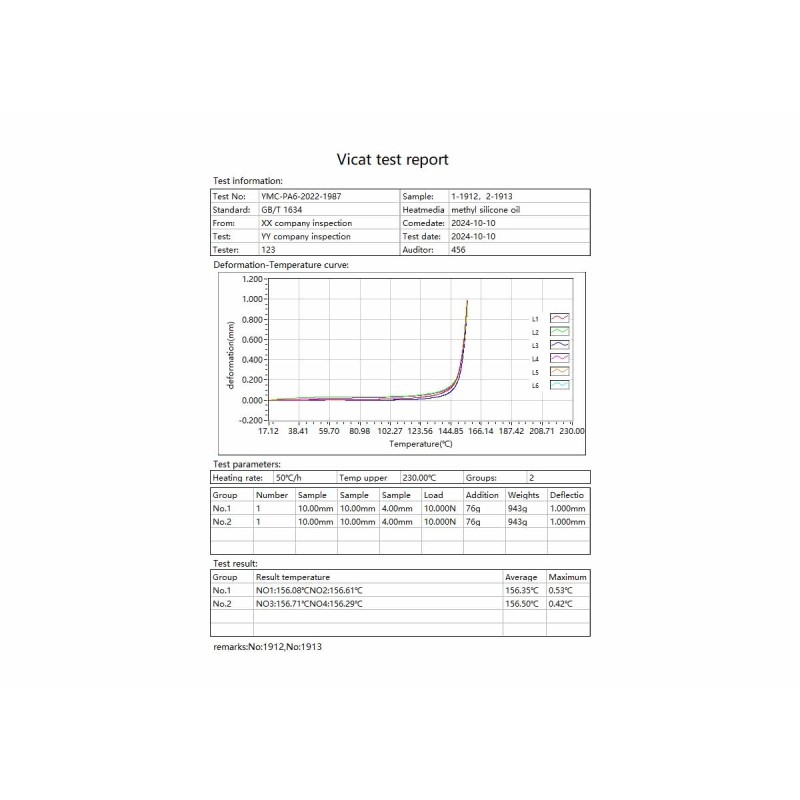

  • Real-time curve display, data storage, and print output capabilities
Technical Specifications
Temperature Control Range Room Temperature to 300℃
Heating Rate (120±10)℃/h, (50±5)℃/h
Maximum Temperature Error ±0.5℃
Deformation Measurement Range 0～3mm
Maximum Deformation Measurement Error ±0.005mm
Accuracy of Deformation Measurement ±0.01mm
Sample Holder (Test Stations) 4
Span of Sample Supports 64mm, 100mm
Load Bar and Press (Needle) Weight 70g
Supply Voltage 220V 20A 50Hz
Heating Power 4kW
Performance Characteristics
  • Heating Medium: Methyl silicone oil or other media with flash point higher than 300℃
  • Cooling Method: Water cooling below 150℃; natural or air cooling above 150℃
  • Upper limit temperature setting with automatic alarm reminder
  • Real-time test temperature display and automatic recording
  • Special high-precision digital display gauge with automatic alarm function
  • Automatic lampblack elimination system for maintaining indoor air quality
Compliance Standards
ISO75, ISO306, GB/T1633, GB/T1634, GB/T8802, ASTM D1525, ASTM D648
Support and Services
On-Site Installation & Configuration: Technical specialists provide complete installation, configuration, and hands-on operator training at your premises.
Routine Preventive Maintenance: Periodic maintenance services to ensure consistent peak performance throughout the equipment lifecycle.
On-Call Troubleshooting Assistance: Responsive support to quickly identify and resolve operational issues.
Packing and Shipping
The HDT VICAT Testing Machine is packed in export-grade solid wooden cases with bubble wrap and foam cushioning for maximum protection during transit. Equipment is wrapped with sealed plastic film for moisture protection and shipped via reliable carriers including UPS and FedEx.
Frequently Asked Questions
Can you provide a basic introduction to the HDT VICAT Testing Machine?
The HDT VICAT Testing Machine (Model: XRW-300) is a professional material testing device manufactured by JHH in Beijing, China, specifically designed to measure the Vicat softening temperature of thermosetting plastic materials.
What key benefits does the HDT VICAT Testing Machine provide?
The machine delivers highly accurate measurement results, features simple operation procedures, includes an intuitive user interface, and requires minimal routine maintenance.
What are the core technical parameters of the HDT VICAT Testing Machine?
The machine features microcomputer control with temperature control accuracy of ±0.5°C, temperature range from ambient to 300°C, and optional heating rates of 120°C/h or 50°C/h.
What kinds of materials are suitable for testing with the HDT VICAT Testing Machine?
The machine is applicable for testing various thermosetting plastics including polyester, epoxy, unsaturated polyester, phenolic, and polyurethane materials.
How long is the warranty period for the HDT VICAT Testing Machine?
JHH offers a 12-month warranty period for all HDT VICAT Testing Machine units.
