Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
Specifications
Delivery Time :
7 -15 days
Test Type :
Drop Hammer Test
Model Number :
XJL-300D
Power Supply :
AC220V/50Hz
MOQ :
1 set
Packaging Details :
Wooden case
Min. Height :
10mm
Supply Ability :
20 sets per month
Test Range :
0-300J
Max. Height :
2000mm
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Drop hammer quality :
0.5kg-16kg
Control Mode :
Automatic
Brand Name :
JHH
Certification :
ISO9001, CE
Place of Origin :
Beijing, China
Product name :
Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
Description
Drop Hammer Test Equipment
Professional drop hammer testing equipment offering versatile testing options including variable drop heights and impact mass adjustments for comprehensive material impact resistance evaluation.
Applications
  • Broad application coverage meeting ISO3127 and equivalent testing standards
  • Extensively used by plastic pipe research institutes, testing laboratories, and production enterprises
  • Determination of impact resistance and toughness for building materials industry
  • Ideal testing instrument for scientific research institutions
  • Features anti-secondary impact function with automatic height calibration
  • Compatible with both passage method and gradient method testing protocols
Testing Principle
  • Test specimens receive impact blows from falling strikers with defined mass and geometric profile
  • Strikers are dropped from pre-calibrated heights onto designated positions
  • Impact severity adjustable by modifying striker mass and/or drop height
  • Maximum permissible TIR value set at 10%
Product Features
  • Professional drop hammer measuring instrument for impact resistance evaluation
  • Drop hammers with weights ranging from 0.5kg to 16kg
  • Hammer diameters from D25mm to D90mm
  • Operating ambient temperature: 10℃ to 35℃
  • Minimum testing height: 10mm
  • Accurate measurement and recording of drop energy
  • Straightforward operation by single operator
  • Complies with international testing standards
Technical Specifications
Model XJL-300D
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-16kg
Hammer diameter D25mm, D90mm, etc
Height of the fall 10mm-2000mm, error≤±2mm
Diameter of the sample Φ16mm-Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
Power source 220VAC±10%
Outline dimension 715mm×700mm×3900mm
Net weight 380kg
Frequently Asked Questions
Could you provide a basic overview of Drop Hammer Test Equipment?
Drop Hammer Test Equipment is a specialized material testing device independently produced by JHH based in Beijing, China, specifically designed to quantify the impact resistance performance of various test specimens.
What core application function does this Drop Hammer Test Equipment serve?
This equipment is utilized to accurately measure the impact resistance of target products, acting as a critical quality inspection step to validate and uphold finished product quality standards.
What types of test specimens are compatible with this Drop Hammer Test Equipment?
This Drop Hammer Test Equipment supports impact performance testing for a full range of tubular products, including PVC-U water supply pipes, sewage pipes, low-pressure water delivery pipes, low-pressure transmission pipes, core layer foam pipes, double-wall corrugated pipes and PE water supply pipes. It is also applicable for impact testing of rigid plastic sheets.
What level of measurement precision can this Drop Hammer Test Equipment achieve?
This Drop Hammer Test Equipment delivers a premium measurement accuracy rating reaching as high as 0.5%.
What is the maximum testing capacity of this Drop Hammer Test Equipment?
The peak impact testing energy supported by this Drop Hammer Test Equipment reaches 300 Joules.

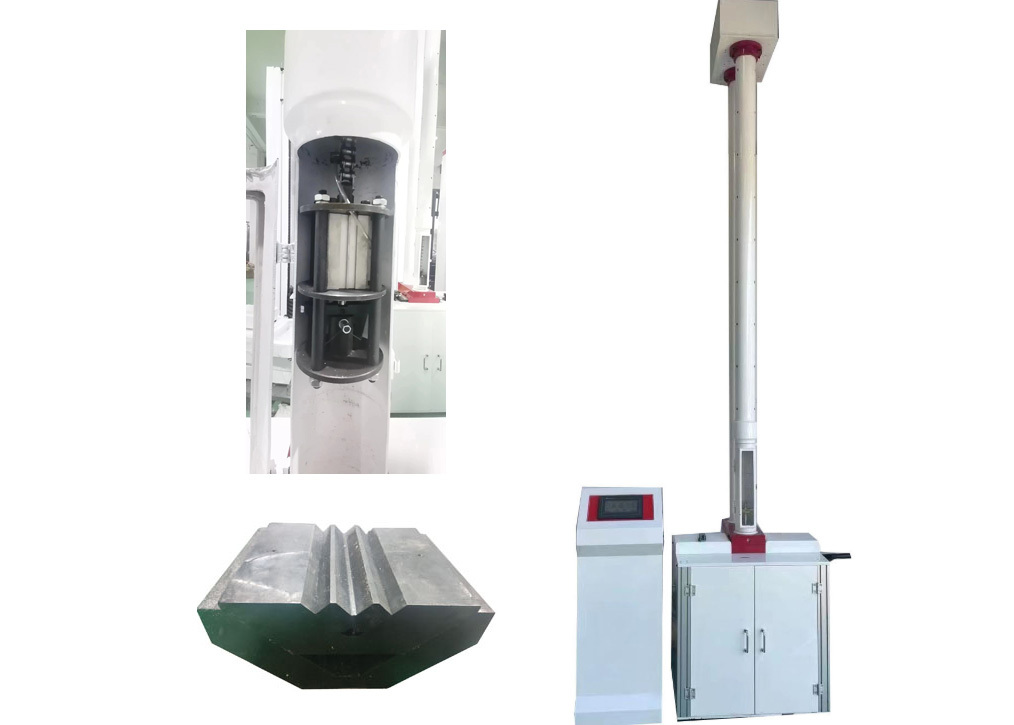

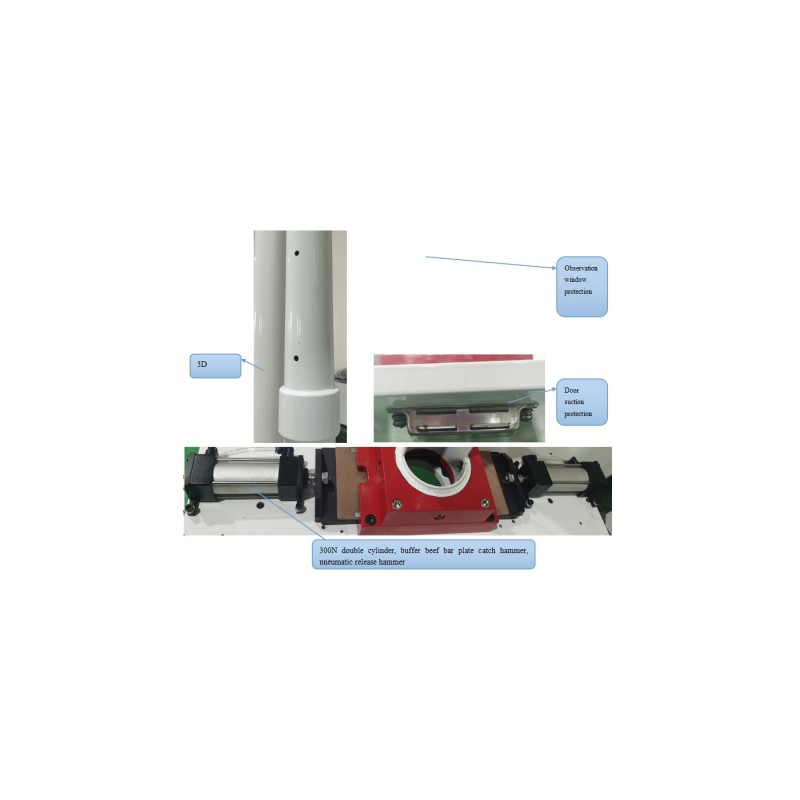

Product Images
Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments Drop Hammer Test Equipment Offering Versatile Testing Options Including Variable Drop Heights and Impact Mass Adjustments
