HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
Specifications
Delivery Time :
10~15 work days
Sample Frame Number :
3 stations or 6 stations(can be selected)
Model Number :
XRW-300F
Controll :
Computer control
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Vicat load :
10N ± 0.2 N , 50N ± 1N
Supply Ability :
15 sets per month
Deformation Measuring Rage :
0 ~ 2.0mm
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Max. deformation deviation :
0.001mm
Certification :
ISO9001, CE
Test station moving method :
Auto
Place of Origin :
BEIJING, CHINA
Mainframe type :
Vertical type
Brand Name :
JINHAIHU
Product name :
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
Description
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement
The HDT & Vicat softening point tester is designed for measuring heat deflection temperature (HDT) and Vicat softening temperature of plastics, rubber, and nylon materials. This advanced testing equipment complies with ISO 75 and ASTM D648 standards and features automated operation with precise temperature control.
Product Overview
This testing machine is primarily used for non-metallic raw materials including plastics, rubber, and nylon compounds. It features an upward and downward lifting mechanism for the test carriage that activates at the beginning and end of testing procedures. The equipment is specifically designed for measuring thermal deformation and softening point temperatures of electrical insulation materials.
Product Features
  • Developed to meet evolving technological demands in plastic manufacturing
  • Enhances material research and performance testing standards
  • Complies with latest domestic and international industrial standards
  • Full computerized intelligent control system
  • Stable operational performance with simplified procedures
  • High level of automated operation
Testing Standards
This instrument conforms to comprehensive domestic and international testing standards including GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, and ISO 2507 specifications for material thermal performance testing.
Technical Specifications
Model XRW-300F
Technical Data
  • 6 testing stations (simultaneous testing of 6 samples)
  • Automatic sample movement capability
  • Air cooling above 150°C, water or natural cooling below 150°C
  • High precision digital display dial gauge for deformation measurement
  • Heating Rate: 50°C/h, 120°C/h
  • Maximum Temperature Deviation: ±0.5°C
  • Deformation deviation: 0.001mm
  • Vicat load: 10N ± 0.2N, 50N ± 1N
  • Fiber stress: 0.455 MPa and 1.82 MPa
  • Temperature control range: Room temperature ~ 300°C
  • Deformation measuring range: 0 ~ 2mm
  • Sample frame number: 3~6
  • Test span: 60~120mm
  • Heating power: 6KW
  • Power supply: 220V 50Hz
  • Display: Color touch screen
Type and Display Vertical type using PC control system
Usage Used to measure heat deformation and Vicat softening temperature of thermoplastic materials in manufacturing, scientific research, and educational institutions
Standard Configuration
  • Main frame: 1 set
  • Electric cabinet: 1 set
  • Specimen holder: 3 sets (or 6 sets)
  • Vicat indenter: 3 sets (or 6 sets)
  • Heat deflection indenter: 3 sets (or 6 sets)
  • Displacement sensor: 3 sets (or 6 sets)
  • Power line: 2 sets
  • Connecting line: 2 sets
  • Operation manual: 1 set
  • Certificate: 1 set
  • Packing list: 1 set

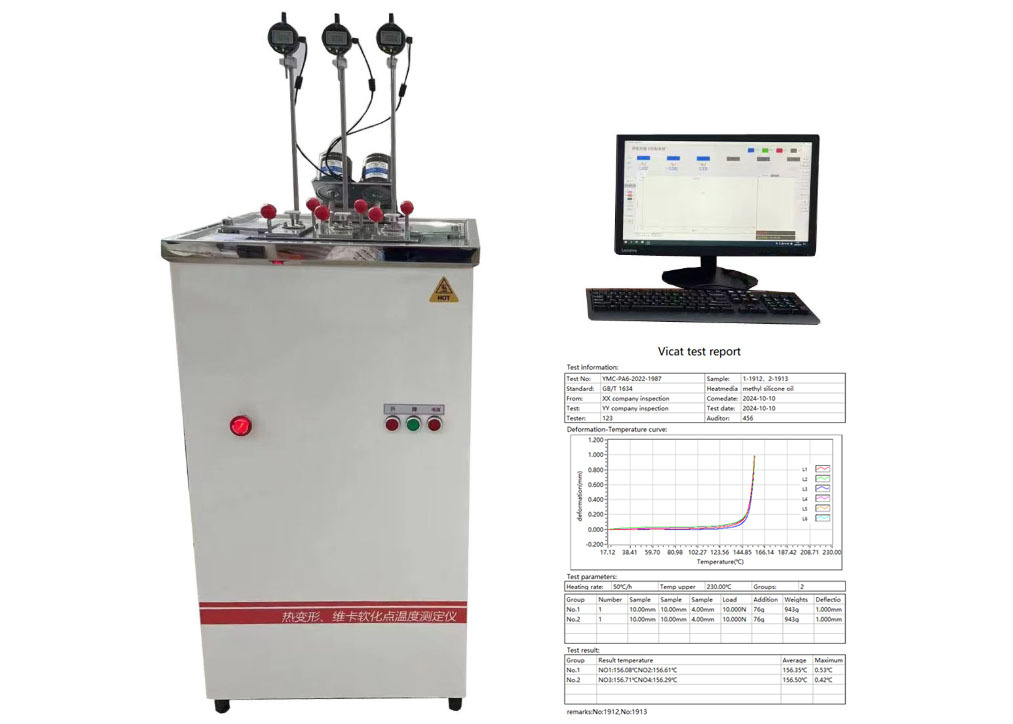

Product Images
HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials HDT VICAT Testing Machine for Thermal Deformation and Softening Point Measurement of Plastics Rubber and Nylon Materials
