Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank
Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank
Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank
Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank
Specifications
Model Number :
XGY
Timing accuracy :
0.1%
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Display accuracy of the pressure :
0.001Mpa
Supply Ability :
10 sets per month
Test specimen :
Plastic pipes like PVC, PE, PPR, ABS, etc
Computer controlled :
Yes
Brand Name :
JINHAIHU
Product name :
Hydrostatic Pressure Testing Machine for Plastic Pipe, Fitted with Pressure Control Frame and Constant Temperature Tank
Payment Terms :
L/C,D/A,D/P,T/T
Pressure sensor :
England Barnes
Delivery Time :
10~20 work days
Max. pressure :
0 - 10Mpa, 0~20Mpa
Certification :
ISO9001, CE
Electromagnetic valve :
Germany GER
Place of Origin :
BEIJING, CHINA
Description
Hydrostatic Pressure Testing Machine for Plastic Pipe
Complete testing system fitted with pressure control frame and constant temperature tank for comprehensive plastic pipe evaluation.
Function & Applications
The 100 Bar Hydrostatic Pressure Testing Machine, also known as Plastic Pipe Hydrostatic Burst Tester, is engineered to perform instantaneous burst tests and long-duration hydrostatic pressure tests on fluid-carrying plastic pipes. This precision instrument measures failure time of thermoplastic pipes under sustained constant pressure. With superior accuracy, streamlined construction, stable performance, and user-friendly operation, this essential testing hardware serves pipe manufacturers, quality inspection authorities, and research institutions.
Technical Specifications
Test Stations 1-20 stations with independent pressure control; one station capable of burst testing
Maximum Pressure 0-10MPa, 0-20MPa
Constant Pressure Accuracy -1%, +2%
Pressure Resolution 0.001MPa
Time Count Range 1-9999h 59min 59s
Constant Temperature Range Ambient temperature to 95°C; 15°C to ambient with refrigeration system
Temperature Control Accuracy Average temperature deviation ±0.5°C; maximum deviation ±1°C
Power Supply 380V AC 50HZ, 3 phase or 220V AC (customizable)
Pipe Sample Diameter Range Φ8-2000mm (customizable)
Standard Accessories
Pressure control system (including pressure source, electromagnetic valves, pressure sensors, pressure accumulators), temperature control system, cycling pump, constant temperature tank, end closures, PC, printer, software, and manual.
System Configuration
  • Pressure control system (main frame assembly)
  • Pressure supply system (pressure generation source)
  • Test vessel and temperature regulation system
  • End closures: φ20-110mm (customizable)
  • Refrigeration system (optional)
Key Features
Main Frame Features
  • Supports uninterrupted continuous operation for complete test procedure integrity
  • Independent branch stations for straightforward operation and maintenance
  • Core components use imported European and American parts for stable performance
  • Configured with branded computer connected via serial ports
  • Generates pressure-time curves throughout testing
  • Real-time pressure value monitoring during operation
  • Hard-copy printing of complete test reports
  • Autonomous operation even during computer shutdown
  • Pre-installed hydrostatic pressure testing software with lifetime free upgrades

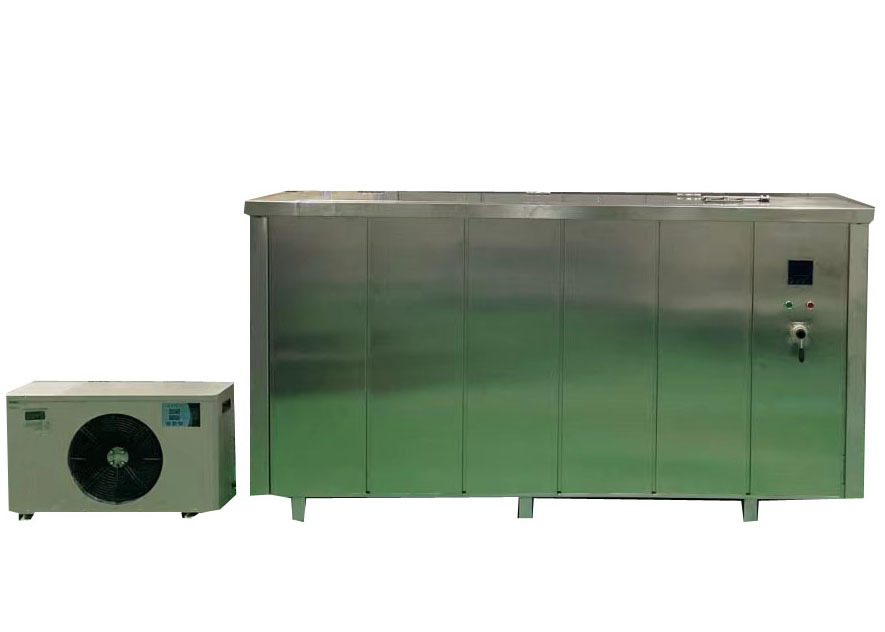

Constant Temperature Tank Features
  • Tank assembly includes structural frame, base plate, 304 stainless steel inner liner, and stainless steel/aluminum alloy cladding
  • Rigid polyurethane foam insulation for stable temperature performance and energy conservation
  • Optional automatic lifting and closing mechanism for tank lid
End Cap Specifications
  • Construction Material: 304 Stainless Steel or Carbon Steel
  • Precision casting process for refined finish
  • Complete assembly including bolts, O-rings, vent valves, and accessories
  • Simple installation, zero leakage, and user-friendly operation
Refrigeration System
Temperature Range: -20 to 40°C | Power Supply: Single-phase 220V, 2.2KW Rated Power
