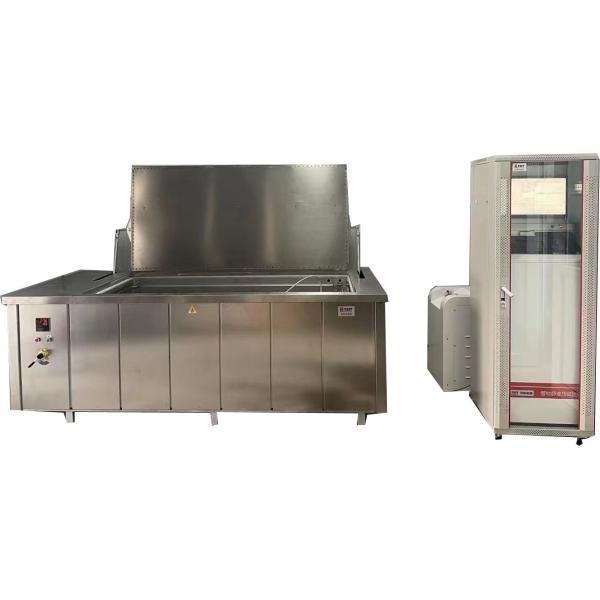

Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized
Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized
Specifications
Brand Name :
JINHAIHU
Model Number :
XGY-10C
Certification :
ISO9001
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
7 work days
Packaging Details :
Standard export wooden cases
Place of origin :
Beijing, China
Product Name :
Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine
Model :
XGY-10C
Max. pressure :
10MPA, 100BAR, 16MPA, 160BAR
Pressure resolution :
0.01MPA, 0.1BAR
Test stations :
5, 10, 15, 20, 25, 30, 50 can customized
Temp. range :
15-95 ℃
Constant pressure accuracy :
-1%~+2%
Material of water tank :
304# stainless steel
Material of end caps :
304# stainless steel or carbon steel
Power :
AC380V ±10% ,50/60Hz
Standards :
ISO 1167, ASTM D1598/1599
Description

Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine

​Ⅰ. Apply:

Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It confirms to ISO1167,ASTM D1598 and ASTM D1599.

Ⅱ. System Feature:

1. Industrial tablet control, direct control.

2. The machine with "precision pressure control unit" multi-channel combination.

3. Each station is independently controlled no interference.

4. 5-statiions, 10-stations, 15-stations, 20-stations and other multi-station optional, up to 60 stations and above. With a hydrostatic test, blasting test.

5. Max. pressure: 3, 6, 10, 20MPa ...

6. Pipe diameter range: Φ16 ~ 2000mm can customized.
7. Operator-friendly display interface provides multi languages to suit the most varied customer requirements.
8. It is convenient to calibrate pressure during testing, meaning that the system may continue running during calibration(optional).
9. Multistage protections are from electric partt, mechanical part as well as software.
10. Reliable data exchange via TCP/IP protocol.

Ⅲ. Meet standards:

ASTM F1335, ASTM D1598, 1599, ISO 1167, 9080, 1756, 13477, GB/T 15560, 18252, 6111, CJ/T 108

Ⅳ​. Technical parameters:
Pipe diameter range Φ8~Φ1600mm
Working stations 3, 6, 10, 15, 20, 25, can customized
Operation mode PC control
Pressure range 0.2~10MPa (or customized)
Pressure resolution 0.001MPa, 0.01Bar
Pressure control accuracy range -1%~+2%
Measuring range 5%~100% F.S.
Timing range 1s~9999H 99M 99S
Timing accuracy ±0.1%
Display resolution 1s
Min. Time setting unit min
Temperature control system

15~95℃ with cooling system
Temperature control accuracy ±0.5℃
Power supply 380V, three-phase four-wire system

Ⅴ​. Configurations:

1. Pressure control host;

2. Pressure source;

3. End caps(304# stainless steel);

4. Constant- temperature water tank;

5. Refrigeration system.

Pipe Static Customized Hydrostatic Pressure Testing Machine ComputerizedPipe Static Customized Hydrostatic Pressure Testing Machine ComputerizedPipe Static Customized Hydrostatic Pressure Testing Machine Computerized

Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized


Pipe Static Customized Hydrostatic Pressure Testing Machine ComputerizedPipe Static Customized Hydrostatic Pressure Testing Machine Computerized

Pipe Static Customized Hydrostatic Pressure Testing Machine ComputerizedPipe Static Customized Hydrostatic Pressure Testing Machine ComputerizedPipe Static Customized Hydrostatic Pressure Testing Machine Computerized
Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized
