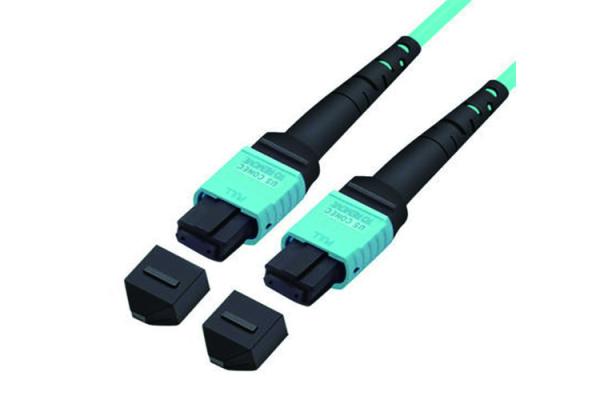

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable
Specifications
Brand Name :
Begate, OEM and ODM
Model Number :
MPO-LC patch cord
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
8000pieces/Day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
Carton Box or Customized packaging
Application :
FTTH FTTB FTTX Network
Length :
1m 2m 3m or Customized
Insertion loss :
<=3.0 dB
Connector :
SC LC FC ST MU
Material :
PVC/LSZH
Product name :
Fiber Optic Patch Cord
Return loss :
>55dB
Quality control :
100% test before shipping
Description

Patch Cord MTP Patchcord 8 Core Mpo To Mpo Fiber Optic Cable

Description of Fiber Optic Patch Cord

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs. It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.

Feature of Fiber Optic Patch Cord

Model SM MM
Connector A:MPO/MTP
Connector Fiber Count 8,12,24,48 Core
Polish PC,APC PC
Insertion Loss Standard ≤0.70dB ≤0.50dB
Elite Low Loss ≤0.35dB ≤0.30dB
Return Loss PC≥50dB,APC≥60dB ≥30dB
Durability(500 Matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish PC,APC PC
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss PC≥50dB,APC≥60dB ≥35dB
Durability(500 Matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm

Fiber type SingleMode(G652)
MultiMode(OM1/OM2/OM3/OM4)
Connector type MPO or MTP
Fiber end face type PC or APC
Insert loss SingleMode: Typical value (average ) ≤ 0.55dB Maximum value ≤0.75dB
MultiMode: Typical value (average ) ≤ 0.65dB Maximum value ≤0.80dB
Return loss SingleMode: Typical value (average ) > 40dB(PC); >55dB(APC)
Minimum value >35dB(PC); >50dB (APC)
Suitable type of optical cable Ribbon or bundle cable
Operation temperature -40℃~+ 85℃

More details

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable

Assembly line of MPO MTP to LC breakout cable

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable

1m 2m 3m Length MTP Patch Cord 8 Core MPO To MPO Fiber Cable

Company information

Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The factory covers an area of 20,000 square meters, and has a complete set of automated production and testing equipments. Begate is specialized in manufacturing of network cables, optical fiber quick connector, fiber optical cables, fiber optic adaptor, fiber optic attenuator, fiber optic splitter, professional plc splitter cassette, fiber optic patch cord, fiber optic splice closure, FTTH series and other products of network cabling system. Our products also covers the fiber media converter, Fiber optic cross connect cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX machine from US and got the National High-Tech Enterprise Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with excellent management systems.
