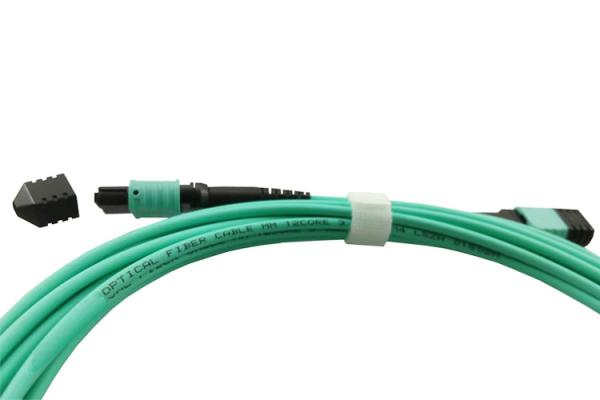

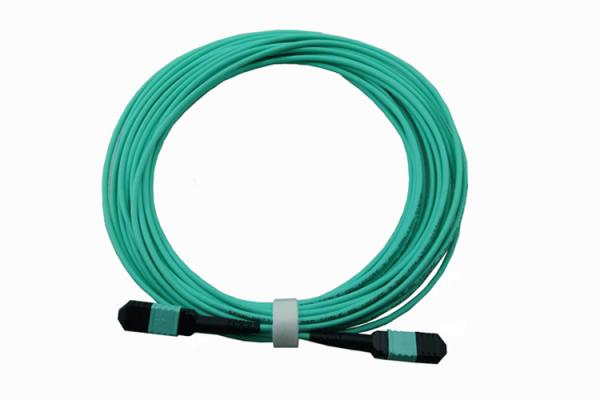

Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH
Specifications
Brand Name :
OEM and ODM
Model Number :
MM OM3 MPO 12F type A
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
We are the professional manufacturer , NO MOQ, 1 piece can be provided.
Price :
USD 8.99 / piece ~ USD 99.99 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash
Supply Ability :
3000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 5-7working days
Packaging Details :
1 piece / PE bag; 100 pieces / carton
Jacket material :
LSZH
Endface :
MPO PC
Fiber count :
12 F
Fiber Mode :
Multi mode OM3 Fiber
Fiber diameter :
3.0 mm
Cable length :
0.5m , 1m , 2m, 3m ...... can customize
Warranty :
3 years
Do you support samples ? :
Yes, we do. For some products, FREE SAMPLE is available
Description

Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH

Begate MPO / F - MPO / F - 12F OM3 trunk cable is a factory pre-terminated 50/125 Multimode OM3 MPO trunk cable, offering the users the advantages of consistent quality, faster installation, and simpler cable management. The trunk cable conforms to Method A (Straight) polarity, and the MTP® connector is available upon request. This fiber patch cable is suitable for use in MPO fiber optic cassette connection and 10G /40G /100G high-density data center applications.

12F MPO Fiber trunk cable characteristics

  • Compliant with IEC and TIA requirements
  • Precision Multi- fiber Ferrule
  • Male and Female connector are available
  • 100% tested for low insertion loss performance and high back reflection
  • Fiber Count: 12 fiber trunk cable
  • Suitable for MPO application
  • Multimode OM3 fiber (OM3 - 150 and OM3 - 300 are available
  • Type A polarity for fiber patch panel connection
  • Optimized performance: available in elite MTP and discrete premium connector upon request
  • LSZH Jacket by Default. Others available jacket material are OFNR , OFNP, PVC.

Parameter of 12F MPO Fiber trunk cable

Testing Item Multimode (PC) Single mode (APC)
Insertion Loss Standard Elite Standard Elite
≤0.5dB ≤0.3dB ≤0.7dB ≤0.35dB
Return Loss ≥ 25dB ≥ 60dB
Operating temperature 40℃ ~ 85 ℃
Wavelength 850 / 1300 1310 / 1550

Assembling line of MPO Fiber Trunk cable

Multimode OM3 MPO Fiber Trunk Cable 12 Fiber Female Type A LSZH

Ordering information of MPO Fiber trunk cable

Product Type Connector A Connector B Fiber Count Fiber Type Length Polarity Jacket
MT=MPO / MTP Trunk Cable Assemblies MPO / M = MTP / UPC 8 Fiber Male LC = LC / UPC 8 = 8 Fiber OS1 = 9um Single Mode OS1 1M = 1 meter A = Type A ( Straight Through) PVC
MF=MPO / MTP Fan - out / Harness Fiber Optic Cable MPO / F = MTP / UPC 8 Fiber Female LCA= LC / APC 12 = 12 Fiber OS2 = 9um Single Mode OS2 2M = 2 meter B = Type B (Cross) LSZH
MC=MPO / MTP Fiber Optic Cassette MPO / A / M = MTP / APC 8 Fiber Male SC = SC /UPC 24 = 24 Fiber OM1 = 62.5um Multi Mode OM1 3M = 3 meter C = Type C (Cross Pair) OFNP
ML=MPO / MTP Loopback MPO / A / F = MTP / APC 8 Fiber Female SCA = SC / APC 48 = 48 Fiber OM2 = 50um Multimode OM2 xx m = xx meter
MP=MPO Fiber Optic Cassette Rack Mount Holders MPO / M = MTP / UPC 12 Fiber Male FC = FC / UPC 72 = 72 Fiber OM3 = 50um Multimode 10G OM3
MPO / F = MTP / UPC 12 Fiber Female FCA = FC / APC 96 = 96 Fiber OM4 = 50um Multimode 10G OM4
MPO / A / M = MTP / APC 12 Fiber Male DLC = Dulpex LC / UPC 144 = 144 Fiber
MPO / A / F = MTP / APC 12 Fiber Female DLCA = Duplex LC / APC
MPO 24 / M = MTP / UPC 24 Fiber Female
MPO 24 / F = MTP / UPC 24 Fiber Female
MPO 24 / A / M = MTP / APC 24 Fiber Male
MPO 24 / A / F = MTP / APC 24 Fiber Female


If you have any more questions about ouroducts, our services and our company, please feel free to contact us. We are online service 24H / 7D.

Thank you very much for visiting our website and welcome to come back again.
