Big Glass Manway Luxuary Micro Beer Brewing Equipment , Bar Brewing Equipment
Big Glass Manway Luxuary Micro Beer Brewing Equipment , Bar Brewing Equipment
Specifications
Brand Name :
SLET
Model Number :
SL-500
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 45800- 58,000 Per set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 working days after the deposit
Packaging Details :
PE paper & iron frame
Material :
SS304 / 316
Heating :
gas / electricity / steam
Control :
automatic / Semi-automatic
Exhausting :
Indoor or outside
Brewhouse :
kettle, lauter, Mash, whirlpool in one unit or 4 seperate
Fermenters :
jacketed and insulated tanks
Description

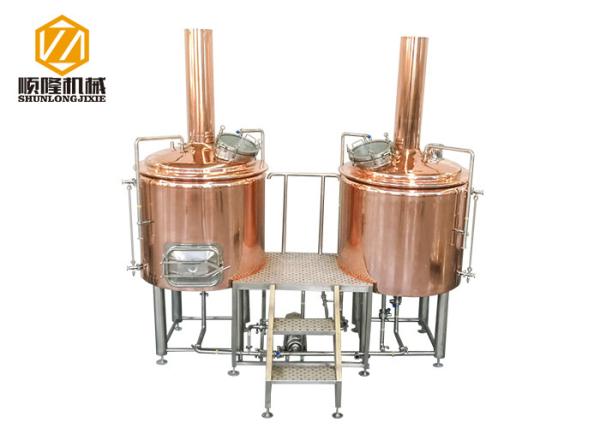

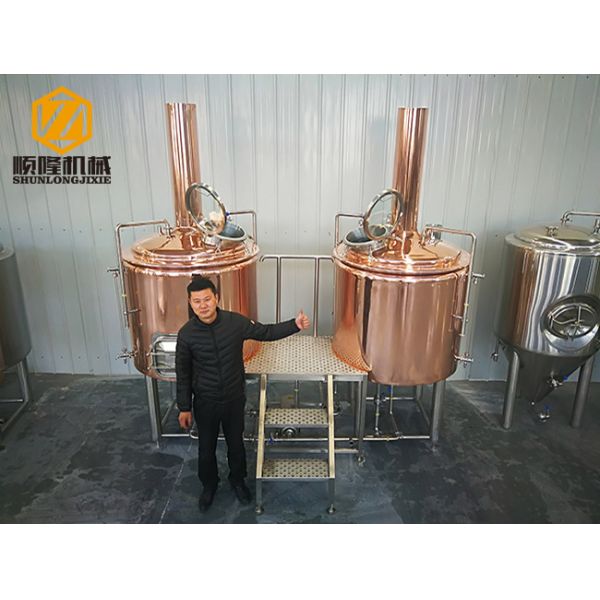

big glass manway luxuary red copper brewpub and bar brewing equipment

Product Description

500L Brewhouse Specification

Brewhouse System

  • Function: Grain mashing, wort filtration, boiling, and whirlpooling.
  • Component: It is composed of mash tun, lauter tank, kettle, whirlpool, hot water tank, hops back, plate heat
  • exchanger with oxygenation device, wort pump and etc.
  • Types: 2 Vessels brewhouse, 3 Vessels brewhouse, 4 Vessels brewhouse
  • Heating method: Electric heating, Steam heating, Direct fire heating.
  • Control method: Digital or PLC control cabinet .
  • Material: Food and sanitary grade stainless steel SUS 304,Red copper.

Fermentation Tank

  • Function: Wort fermentation or maturtion.
  • Component: It is composed of Shadowless manhole, Pressure relief valve, Aseptic valve, Pressure gage,
  • Rotate racking arm, Butterfly valve,
  • Pressure relief valve and so on.
  • Types: 50L-10000L, and even bigger volume.
  • Cooling method: Ice water belt or glycol cooling jacket around both top and bottom.
  • Design pressure is 0.3MPa; Working pressure is 0.15MPa.
  • Material: Stainless steel SUS 304

Output/Brew 5HL
Brew/Week 2~6
Output/Week 10~30HL
Electric Supply 3phase / 380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric/Steam
Area Request >45M2
Brewmaster 1

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

Output/Brew 200L 300L 500L 600L 800L 1000L
Brew/Week 2~6 2~6 2~6 2~6 2~6 2~6
Output/Week 400~1200L 600~1800L 1000~3000L 1200~3600L 1600~4800L 2000~6000L
Electric Supply

3phase/380(220, 415,440…)v/50 (60)Hz

Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric/Steam
Area Request >25M2 >30M2 >45M2 >50M2 >60M2 >70M2
Brew master 1 1 1 1 1

1

1. Brewhouse: two vessels, three vessels, four vessels brewhouse

2. Heating medium: steam heating

3. Insulation material: rock wool. Insulation thickness: 100mm

4. Mash tank; hydrator, mixer, steam heating jacket

5. Lauter tun: rake, agitator, false bottom, hydrator

6. Brewkettle, steam heating jacket, inner steam heating deivce

7. Whirlpool tun: whirlpool entry

Beer brewing system’s analysis

Production Capacity 100L/day 200L/day 300L/day 500L/day 1000L/day 2000L/day
Floor space ≥15 M2 ≥25 M2 ≥35 M2 ≥50 M2 ≥80 M2 ≥120 M2
Total power 12 KW 12 KW 12 KW 15/36 KW 22/72 KW 31/144 KW
Consumption of water(Max) 0.2 M3/H 0.4 M3/H 0.5 M3/H 1.0 M3/H 1.5 M3/H 2.0 M3/H
Total water consumption per day 0.5 M3/D 1.0 M3/D 1.5 M3/D 2.5 M3/D 5.0 M3/D 10 M3/D
Consumption of Malt 20 KG 40 KG 60 KG 100 KG 200 KG 400 KG
