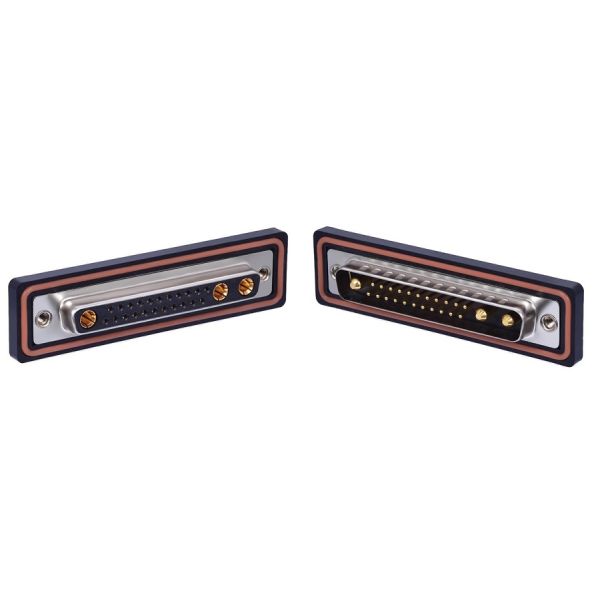

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission
Specifications
Brand Name :
BEDE
Model Number :
25W3
Certification :
CE
Place of Origin :
China
MOQ :
100
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
4000Pcs per day
Delivery Time :
base on quantities
Packaging Details :
PE bag and carton
Applicable Temperature :
-55~+125℃
Gender :
Male and female
Connector Type :
D Sub
Working Voltage :
300V
Rated Current :
10A / 20A / 30A / 40A
Connector Style :
D-SUB 25W3
Contact Material :
Copper Alloy gold plated
Connector with signal contact material :
Phosphor Copper gold plated
Signal contacts current rating :
3A
Insulator material :
PBT+30%GF
Sealing material :
Epoxy resin
shell material :
PA66
Description

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Description


Bede’s 25W3 D-Sub series pioneers hermetic hybrid connectivity with military-grade IP67 sealing, integrating 25 contacts (3 coaxial + 22 power) in a standard D-Sub configuration. Designed for harsh-environment systems demanding uncompromised signal integrity alongside dust/fluid resistance.

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Applications:

▣ Outdoor Robotics: Agricultural drone powertrain control in dust/moisture
▣ Marine Electronics: SONAR array pressure-equalized interfaces
▣ EV Charging: DC fast charger outdoor plug-in modules
▣ Oil & Gas: Downhole sensor telemetry junctions

Performance Profile
  1. Configuration 25-pin (3 RF + 22 power)
  2. RF Impedance: 80Ω ±5%
  3. Power Contact Material: machined brass
  4. Waterproof : IP 67
  5. Mating Cycles: 500 Cycles
  6. Flammability Rating: UL94 V-0

Rated current

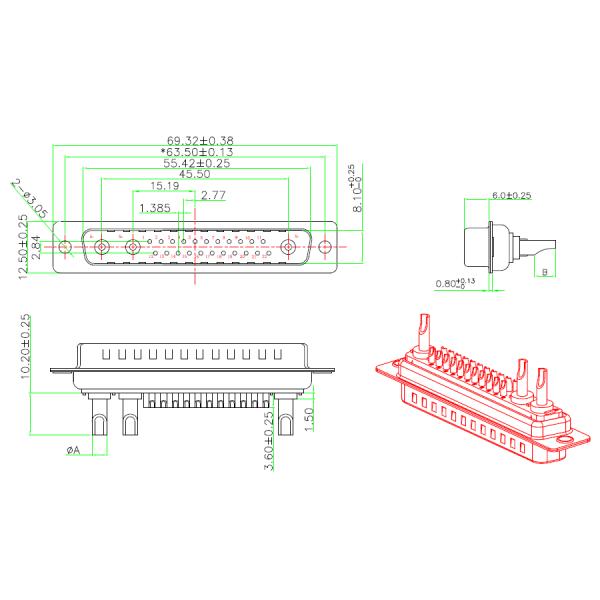

Four rated currents are available, refer to the figure below

25W3 D-Sub Male / Female Connectors IP67 Grade Mixed Signal Power Transmission

Part number A/mm B/mm Rated current
DBA25W3-1 2.5 4.5 10 Amp
DBA25W3-2 3.6 5.0 20 Amp
DBA25W3-3 4.4 5.5 30 Amp
DBA25W3-4 5.5 5.5 40 Amp
