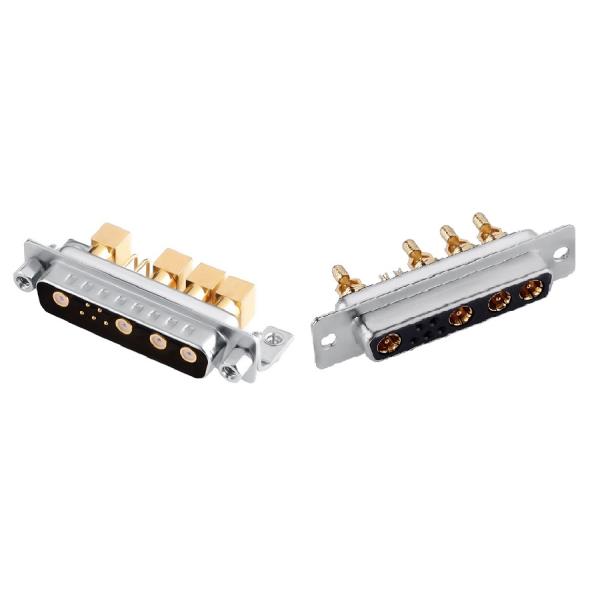

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB
D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB
D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB
D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB
Specifications
Brand Name :
BEDE
Model Number :
9W4 right angle pins
Certification :
CE
Place of Origin :
China
MOQ :
500
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
4000Pcs per day
Delivery Time :
base on quantities
Packaging Details :
PE bag and carton
Applicable Temperature :
-55~+125℃
Gender :
Male and female
Connector Type :
D Sub 9w4
Working Voltage :
300V
Rated Current :
10A / 20A / 30A / 40A
Shell Size :
12.50*53.04
Shell Plating :
Nickel
Contact Material :
Copper Alloy
No. of power :
5
No. of Signal :
4
Description

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 For PCB

Function and use

This 9W4 mixed DB connector have 5 power pins and 4 signal pins, used in military, automation, robotics, and other fields

Material and performance

  1. All contact pins are machined brass and fully gold-plated, with good conductivity and very low contact resistance
  2. Insulator is made of black PBT plastic with 30% glass fiber, fire rating meets UL -94 -V0
  3. Shell is made of brass, nickel-plated to provide rust-proof effect and beautiful appearance

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB

Electrical and Mechanical Characteristics

  1. High Power Contact Current Rating: 10, 20, 30, or 40 Amps
  2. Working Voltage: 300V
  3. High Power Contact Resistance: 10 milliohms maximum
  4. Dielectric Withstanding Voltage: 1000 VAC for 1 minute
  5. Insulation Resistance: 2000 kOhms minimum
  6. Temperature Rating: -55°C to +125°C
  7. The radio frequency: 0~3GHz
  8. Insertion force: 0.2~2 N/pins for the power pins, and 2~7 N/pin for the Radio Frequency Pins
  9. Extraction force: 0.2N/pins for the power pins, and 0.5 N/pin for the Radio Frequency Pins
  10. Durability:500 cycles

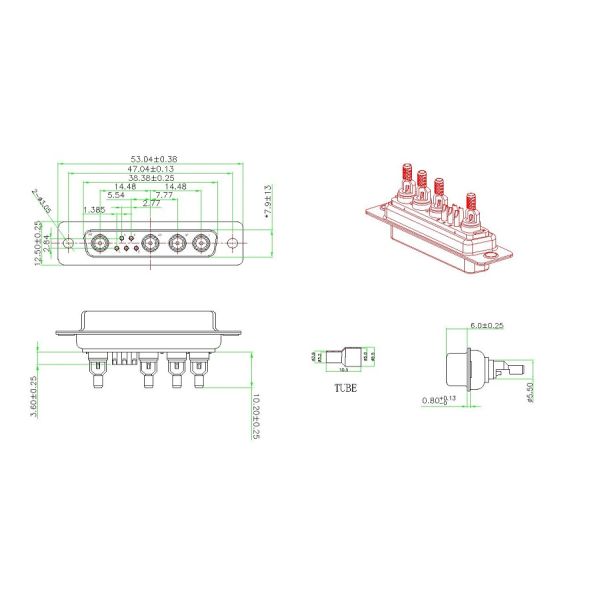

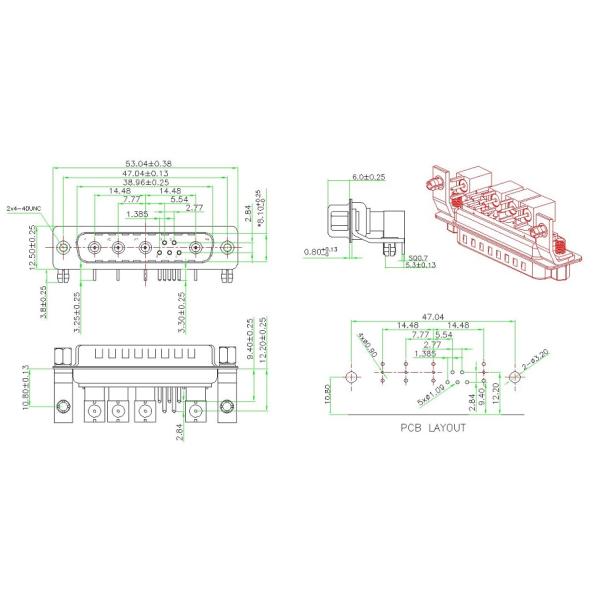

Product size details and PCB hole layout are as shown below

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB

D-Sub Mixed Coaxial Connector RF / Power Righ Angle Conecector 9W4 for PCB
