FQ Series USSR Series Circular Thread Connector Male And Female Sets​

Brief introduction of the FQ connectors
FQ series waterproof circular electrical connectors comply with DZ4Q/RE008-84 standard, adopting high reliability squirrel cage type, advanced structure and high reliability.
Products with low contact resistance, anti-vibration, anti-shock, strong sealing, plug seat connection fast, etc., simple to use, easy to operate, widely used in a variety of electronic equipment between the electrical connection.

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Parts name Materials
Contact pins Gold plated brass
Shell Zinc Alloy with color painting
Wire Cage Stainless Steel Spring
Sealing materials Silicone Rubber

Pins Distribution and Rating Current

FQ 14 FQ 14 series connectors are available in 2~9pin

FQ Series USSR Series Circular Thread Connector Male And Female Sets

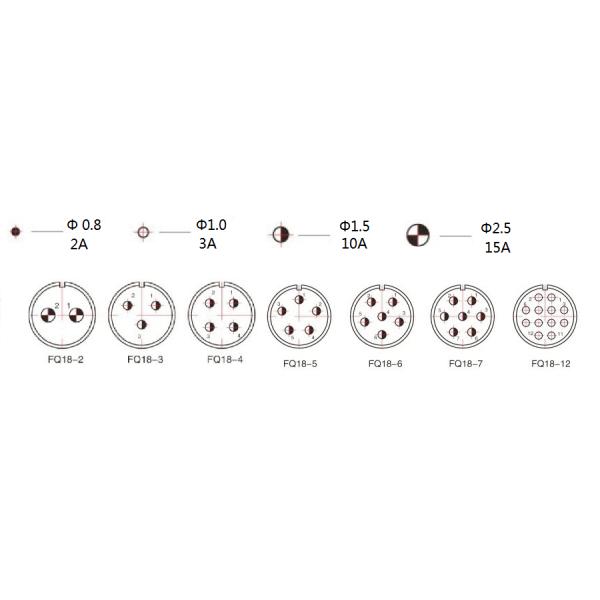

FQ 18 series connectors are available in 2~7pin and 12pins

FQ Series USSR Series Circular Thread Connector Male And Female Sets

FQ 24 series connectors are available in 4,5,6,8,10,19 and 26 pins

FQ Series USSR Series Circular Thread Connector Male And Female Sets

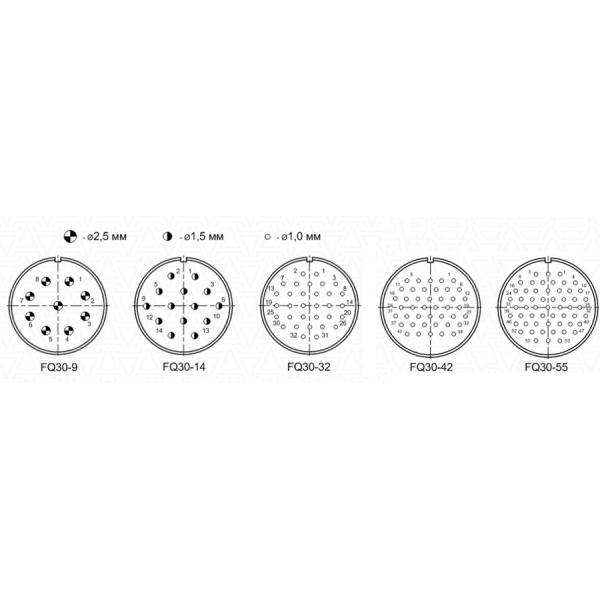

FQ 30 series connectors are available in 9, 14, 32, 42, and 55 pins

FQ Series USSR Series Circular Thread Connector Male And Female Sets

FQ series plug and socket and size

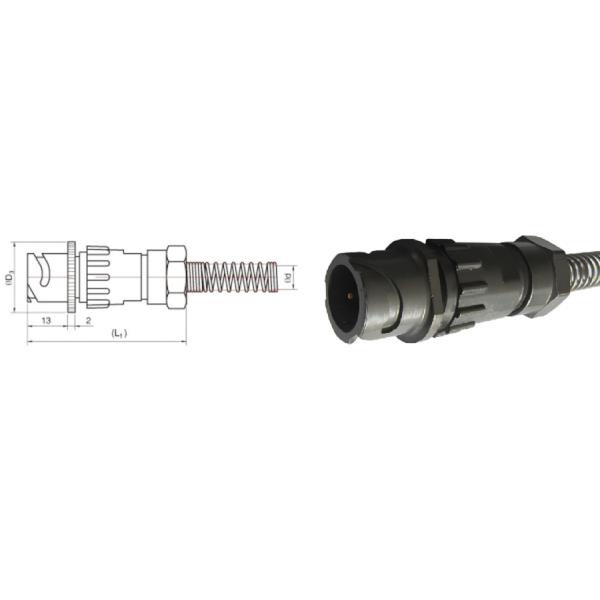

1. Straight wire spring plug

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Type ΦD1/mm L1/mm Φd Cable sealing shroud/mm
FQ14 21 47/50 Φ5, 6, 7, 8
FQ18 27 53 Φ 6, 8, 9, 10
FQ24 33 61 Φ 6, 10, 12, 14
FQ30 39.5 68 Φ 14, 16, 18

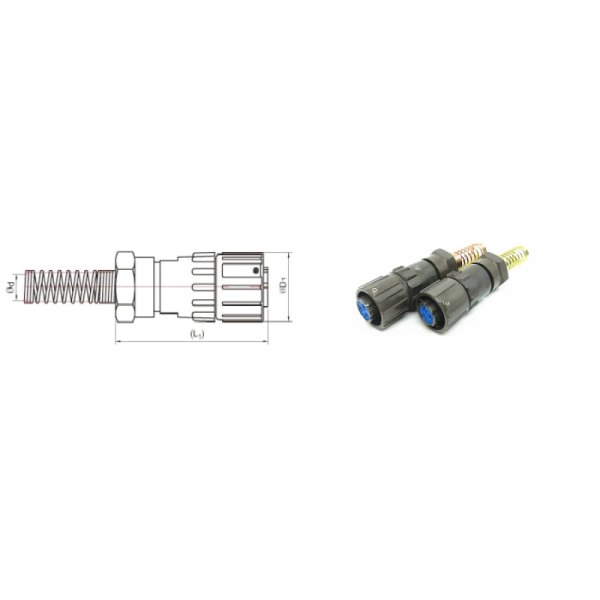

2. Right Angle wire spring plug

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Type ΦD1/mm L2/mm L3/mm Φd Cable sealing shroud/mm
FQ14 21 38.3 37 Φ 6, 7, 8
FQ18 27 43.8 38 Φ 6, 8, 9, 10
FQ24 33 55.8 45 Φ 6, 10, 12, 14
FQ30 39.5 57.8 50 Φ 14, 16, 18

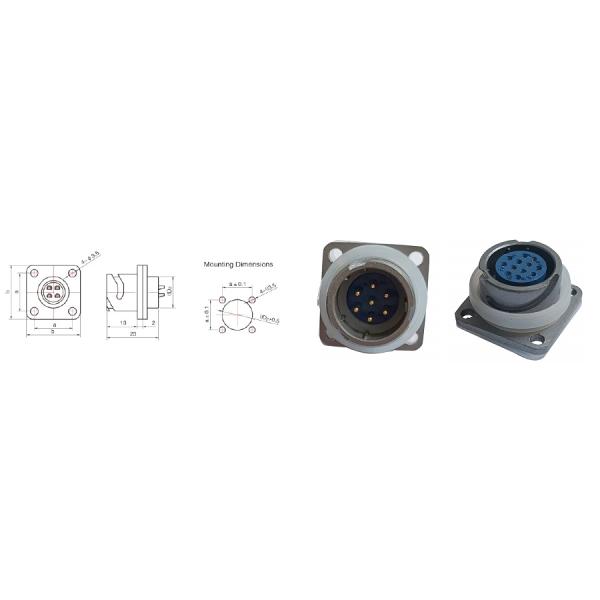

3. Square Flange Receptacle

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Type a/mm b/mm ΦD2/mm
FQ14 17±0.2 24 14
FQ18 20±0.2 27 18
FQ24 26±0.2 33 24
FQ30 31±0.2 38 30

4.Cable Receptacle With Square Flange

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Type ΦD3/mm L1/mm Φd Cable sealing shroud/mm
FQ14

19.7

 47/50 Φ5, 6, 7, 8
FQ18 23.8 53 Φ 6, 8, 9, 10
FQ24 30 61 Φ 6, 10, 12, 14
FQ30 36 68 Φ 14, 16, 18

5. Circular receptacle

FQ Series USSR Series Circular Thread Connector Male And Female Sets

Type ΦD3/mm M ΦD2/mm C/mm
FQ14 19.7 M14 14 13.2
FQ18 23.8 M18 18 17.2
FQ24 30 M24 24 23.2
FQ30 36 M30 30 29.2

TECHNICAI CHARACTERISTICS
Temperature: -55°C ~ +105°C
Relative humidity: 98± 3% at 40°C
Vibration: 10-2000HZ, 150m/s2
Shock : 500m/s2
Atmospheric : 1 KPa
Resistance: 0.1MΩ Min.
Endurance: 500 cycles

How to inquiry and buy

Please tell us the code and quantity as shown in the picture below and we will offer you the best price and services.

FQ Series USSR Series Circular Thread Connector Male And Female Sets
