Specifications
Brand Name :
BEDE
Model Number :
CM10
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
negotiate
Payment Terms :
T/T,Western Union,D/P
Supply Ability :
1000pcs per day
Delivery Time :
5~8weeks
Insulator :
PBT
Pins :
Brass with gold plated
Dust cap :
Silicon
Color :
Silver grey
Waterproof :
IP67
Termination Method :
Solder
Voltage Rating :
AC 220V
Current Rating :
3A
Applicable temperature :
-25~+85°C
Description

CM10 10Pins DDK Wire-Soldered Straight Pin Socket withSquare Flange Waterproof Connector


Description


The CM10 series connectors are compact circular waterproof connectors launched by Dai-ichi Densen Industry (DDK), featuring easy operation and reliable protection, and are suitable for a wide range of industrial and electronic equipment applications.


CM10 10Pins DDK Square Flange IP67 Waterproof Circular Connector with Solder Termination


Product features


1. Equipped with a push-rotate one-click release mechanism: simply insert the plug for an instant, firm lock, and unlock effortlessly by twisting the connector ring.This clever design effectively prevents accidental disconnection caused by cable tugging, guaranteeing highly efficient and reliable performance in all industrial and electronic application

2. IP67 waterproof & dustproof rating when mated, ideal for dusty, humid and other harsh working conditions.

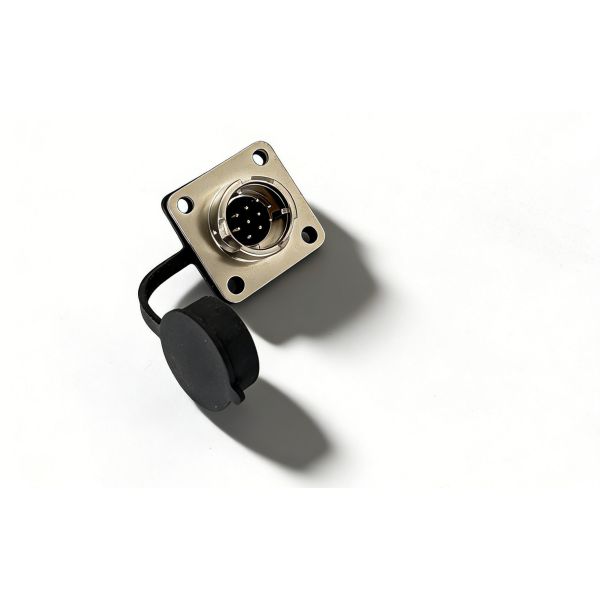

3. Comes with a silicone dust cap, effectively preventing pin oxidation and contact failure caused by dust during transportation or storage, and reducing damage from collisions.


Application


This series of connectors is widely used for power and signal transmission in various electronic and electrical equipment. It ensures stable connectivity for industrial automation devices, servo control systems, and waterproof - required electronic instruments.

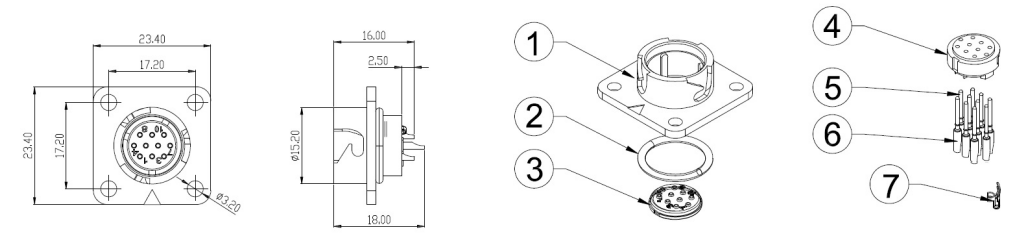

Size and layout


The external dimensions of the CM10 are shown in the image below. Please refer to them and determine if they are suitable for your product.

CM10 10Pins DDK Square Flange IP67 Waterproof Circular Connector with Solder Termination


Our services


1. Custom connector plastic parts, such as insulator, nut, housing etc..

2. Custom connector internal conductors, male and female pins, with silver or gold plating

3. Custom connector accessories, such as silicone rings and dust covers.
