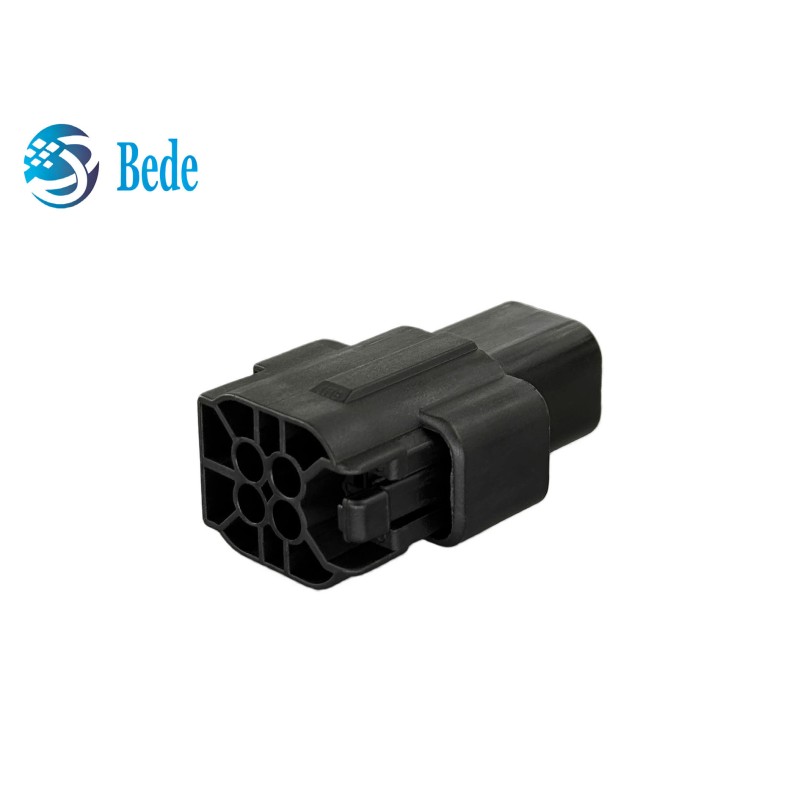

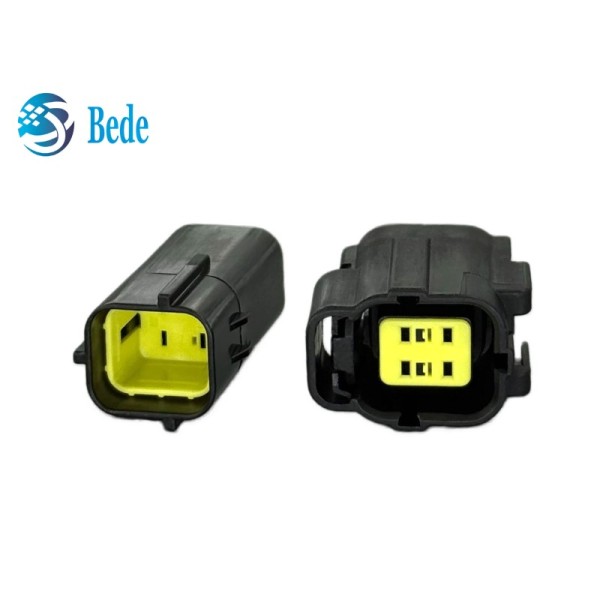

174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
Specifications
Delivery Time :
base on quantities
Temperature Range :
-30°C ~ +105°C
Model Number :
174259-2 / 174257-2
Flame Retardancy :
UL 94 V-2
Certification :
RoHS
Price :
negotiation
Number of Positions :
4
Connector Shape :
Rectangular
Place of Origin :
China
Series :
Econoseal J Series Mark II
MOQ :
500
Number of Rows :
2
Brand Name :
BEDE
Payment Terms :
T/T,Western Union
Supply Ability :
3000Pcs per day
Housing Material :
PBT
Description
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Waterproof Electrical Assembly
Product Overview

The 174259-2 and 174257-2 are the automotive-grade rectangular connectors housing from the reputable Econoseal J Mark II 070 Series. Designed specifically for wire-to-wire signal applications in harsh environments, it acts as a plug/cap housing meant to hold male tab contacts securely.

Specifications
Specification 174259-2 174257-2
Number of Positions 4 4
Connector & Housing Type Housing for Male Terminals Housing for Female Terminals
Operating Voltage 12 VDC 12 VDC
Rated Current 18.5 Amps (max) Dependent on inserted wire gauge
Contact Size 1.8mm 1.8mm
Temperature Range -30°C to +105°C -30°C to +105°C
Flame Retardancy UL 94 V-2 UL 94 V-2
Connector Mounting Type Cable Mount (Free-Hanging) Cable Mount (Free-Hanging)
Product Features
  • Dual-Row Grid Layout: Holds exactly 4 male tab contacts arranged in a tight 2x2 profile to minimize physical space requirements
  • Integrated Friction Lock: Features an outer locking latch mechanism that ensures a reliable click connection with the female mate and prevents accidental disconnects from heavy vibrations
  • 180° Straight Cable Exit: Allows the wiring harness bundle to lead straight out from the back of the plug for clean conduit integration
  • UL 94 V-2 Flammability Standard: Self-extinguishing material design prevents the housing from propagating an electrical fire if a short occurs
Applications
  • Primary Automotive Sensor Systems
  • The Charging System (Battery & Alternator)
  • The Exhaust System (Smog & Fuel Economy)
174259-2 174257-2 4-Pin 1Sets Automotive Connector Housing Plug and Socket Waterproof Electrical Assembly
Customization Services
  1. Custom connector plastic parts, such as insulator, nut, housing etc.
  2. Custom connector internal conductors, male and female pins, with silver or gold plating
  3. Custom connector accessories, such as silicone rings and dust covers
