Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
Specifications
Brand Name :
BEDE
Model Number :
GX-12-WP-2~7-E
Certification :
CE RoHS
Place of Origin :
China
MOQ :
150 sets
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
7800 sets per day
Delivery Time :
within 5 days after payment
Packaging Details :
packing in PE bag each and 150sets per carton
Rated current :
8A
working voltage :
260V
mounting hole :
M13
applicable temperature :
-40~+120℃
applicable cable :
≤Φ6.0mm
waterproof :
IP68
color :
silver
material :
chrome plated copper
Description

Copper Shell M12 Circular connector IP68 Cable To Cable Docking Connector 2~7 Pin

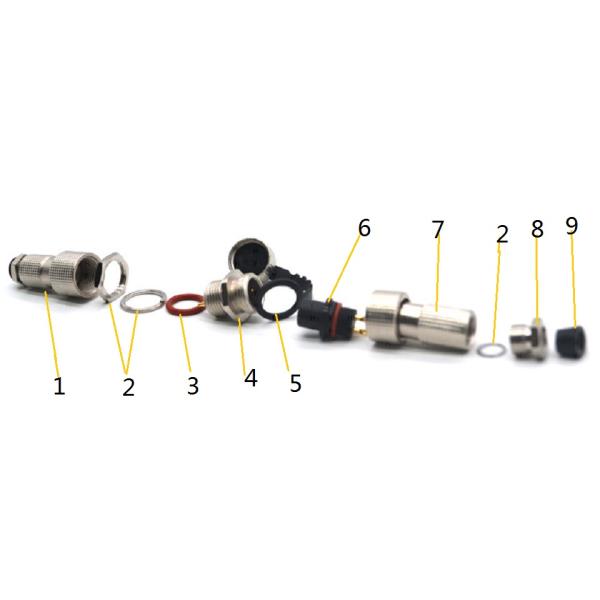

Structure

1.housing of male connector, shell material is copper with chrome plated,

2.Nut and washer, nut material is copper with chrome plated, washer material is stainless steel

3.O-rings for waterproofing

4.male connector, contact pins material is brass with gold plated,shell material is copper with chrome plated,

5,protactive cap

6.female connector, black color bakelite shell and gold plated contact pins

7.Housing of female connector, copper with chrome plated

8,Nut, copper with chrome plated, gripping the cable with 7&9 together for waterproofing,

9, Rubber sleeve

Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected

Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin

Electrical data

pins rated current working voltage Contact resistance Insulation resistance Withstand voltage
2 ~7 8A 260V 3mΩ 1500MΩ 1500V

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting

Copper Shell M12 Circular Gx12 Aviation Connector IP68 Cable To Cable Docking Connector 2~7 Pin
