Precision Engineered Cylindrical roller bearings model NJ2313/NJ413/NU1014/N214/NUP2214/NJ314/NU2314/NJ2215,providing Stable Operation and Long Service Life in Industrial
Precision Engineered Cylindrical roller bearings model NJ2313/NJ413/NU1014/N214/NUP2214/NJ314/NU2314/NJ2215,providing Stable Operation and Long Service Life in Industrial
Precision Engineered Cylindrical roller bearings model NJ2313/NJ413/NU1014/N214/NUP2214/NJ314/NU2314/NJ2215,providing Stable Operation and Long Service Life in Industrial
Precision Engineered Cylindrical roller bearings model NJ2313/NJ413/NU1014/N214/NUP2214/NJ314/NU2314/NJ2215,providing Stable Operation and Long Service Life in Industrial
Specifications
Brand Name :
OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number :
NJ2313/NJ413/NU1014/N214/NUP2214/NJ314/NU2314/NJ2215/NU415/NJ 2315(customizable)
Place of Origin :
China
MOQ :
5(negotioation)
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
15days(as per order)
Packaging Details :
sea worthy standard
Rows :
single row/double rowmulti-row
Cage :
Steel /Brass/Nylon
Type :
Roller,cylindrical roller bearing,cam
Application :
Machinery,Automotive,motors,dynamos,combustion turbines
Sample :
Avaliable
Rollingelement :
Cylindrical Rollers
Designation :

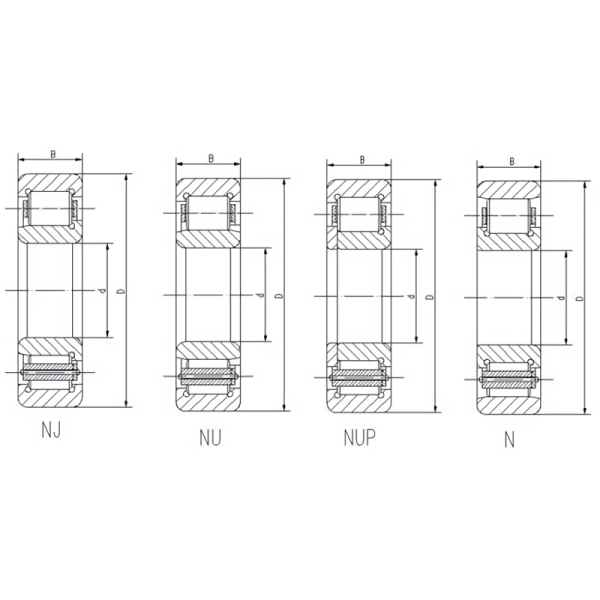

N, NU, NUP, NJ, NF, NJP
Material :
High-quality Bearing Steel
Description


Overview:

Maximize the efficiency and longevity of your machinery with our high-performance Cylindrical Roller Bearings. Engineered for applications requiring high radial load capacity and precision, these bearings utilize a line contact design that significantly outperforms standard ball bearings in heavy-duty scenarios.

Featuring a separable design, our cylindrical roller bearings allow for easy installation and maintenance. Whether you need to accommodate thermal expansion in a shaft (NU type) or require precise axial location (NUP type), our diverse range ensures the perfect fit for your industrial needs.

We also offer insulated cylindrical roller bearings and deep groove ball bearings, with insulation on either inner or outer ring to protect against electric corrosion.

Applications

Cylindrical roller bearings are designed for applications that demand high radial load capacity and reliable performance. Common applications include:

  • Electric Motors & Generators
  • Gearboxes & Transmission Systems
  • Machine Tool Spindles
  • Construction & Mining Equipment
  • Wind Turbines
  • Industrial Pumps & Compressors
  • Rolling Mills
Key Features
  • Linear contact with raceway for superior load distribution
  • High radial load capacity and rigidity
  • Suitable for heavy loads and shock loads
  • Excellent performance at high rotation speeds
  • Available in single row, double row, and multi-row configurations
Bearings No. d (mm) D (mm) B (mm) Cr (kN) C0r (kN) Weight (kg)
NJ 2313 ECP 65 140 48 285 290 3.35
NU 2313 ECP 65 140 48 285 290 3.3
NUP 2313 ECP 65 140 48 285 290 3.45
NJ 413 65 160 37 183 190 3.65
NU 413 65 160 37 183 190 3.6
NU 1014 ECP 70 110 20 76.5 93 0.62
N 214 ECP 70 125 24 137 137 1.15
NJ 214 ECM 70 125 24 137 137 1.25
NU 214 ECM 70 125 24 137 137 1.25
NUP 214 ECM 70 125 24 137 137 1.2
NUP 214 ECP 70 125 24 137 137 1.2
NJ 2214 ECM 70 125 31 180 193 1.7
NU 2214 ECM 70 125 31 180 193 1.55
NUP 2214 ECM 70 125 31 180 193 1.75
N 314 ECM 70 150 35 236 228 2.75
NJ 314 ECM 70 150 35 236 228 3.05
NU 314 ECM 70 150 35 236 228 3
NUP 314 ECM 70 150 35 236 228 2.85
NJ 2314 ECP 70 150 51 315 325 4.05
NU 2314 ECP 70 150 51 315 325 4
NUP 2314 ECP 70 150 51 315 325 4.15
NJ 414 70 180 42 229 240 5.35
NU 414 MA 70 180 42 229 240 5.25
N 215 ECP 75 130 25 150 156 1.25
NJ 215 ECM 75 130 25 150 156 1.3
NU 215 ECM 75 130 25 150 156 1.35
NUP 215 ECM 75 130 25 150 156 1.3
NJ 2215 ECP 75 130 31 186 208 1.6
NU 2215 ECP 75 130 31 186 208 1.6
NUP 2215 ECP 75 130 31 186 208 1.65
N 315 ECM 75 160 37 280 265 3.3
NJ 315 ECM 75 160 37 280 265 3.65
NU 315 ECM 75 160 37 280 265 3.6
NUP 315 ECM 75 160 37 280 265 3.45
NJ 2315 ECP 75 160 55 380 400 5
NU 2315 ECP 75 160 55 380 400 4.9
NJ 415 75 190 45 264 280 6.9
NU 415 MA 75 190 45 264 280 6.75
NU 1016 ECM 80 125 22 99 127 1.1
