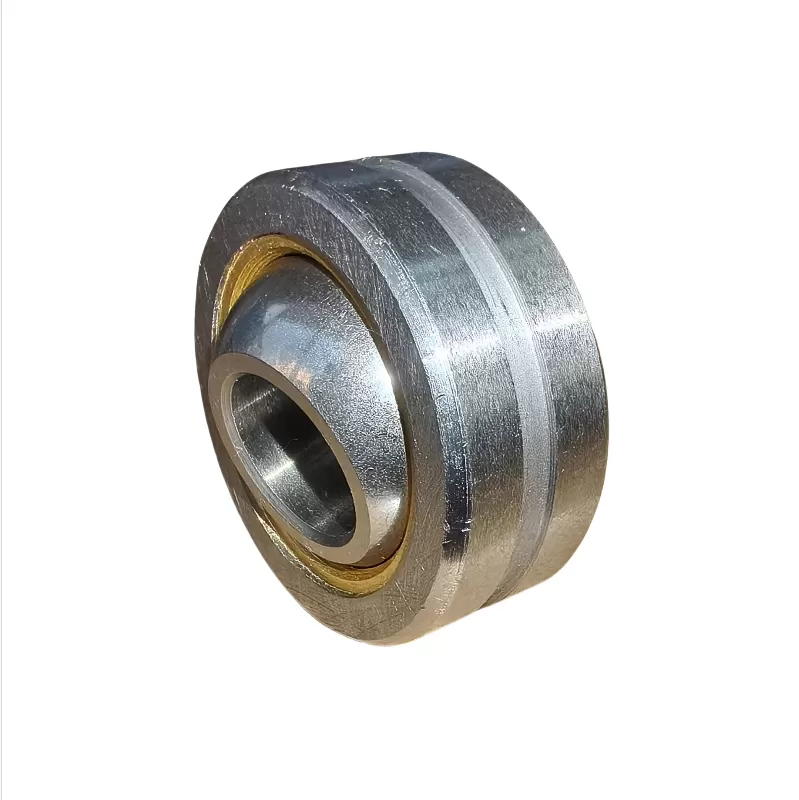

GEBK Series Radial Spherical Plain Bearing Steel Brass 52100 Hard Chrome Plated 4 Piece ISO Standard
GEBK Series Radial Spherical Plain Bearing Steel Brass 52100 Hard Chrome Plated 4 Piece ISO Standard
Specifications
Payment Terms :
T/T,L/C,PayPal,Western Union
Model Series :
GEBK (DIN ISO 12240-1, Dimension Series K)
Model Number :
GEBK Series
Inner Ring Material :
52100 Bearing Steel, Hardened, Hard Chromium Plated
Operating Temperature :
-50°C to +150°C
Price :
USD 3-30 / Piece
Sliding Contact Surface :
Steel/Brass
Construction :
4-Piece, Maintenance Required
Delivery Time :
3-7 working days for stock, 15-25 days for production
Sealing :
Without (Open Design)
Lubrication :
Grease Lubrication Required
Brand Name :
SYX
MOQ :
10 Pieces
Packaging Details :
SYX branded box with anti-rust oil wrapping, export-grade corrugated carton with pallet
Supply Ability :
50000 Pieces per Month
Outer Ring Material :
Carbon Steel, Formed, Oil Coated
Liner Material :
Brass Insert
Certification :
ISO 9001:2015, DIN ISO 12240-1
Place of Origin :
Liaoning, China
Bearing Type :
Radial Spherical Plain Bearing
Description

GEBK Series Radial Spherical Plain Bearing — 52100 Steel, Brass Liner, DIN ISO 12240-1

The GEBK series is a comprehensive range of radial spherical plain bearings conforming to DIN ISO 12240-1 dimension series K. Built with a robust 4-piece maintenance-required construction, each bearing combines a 52100 bearing steel inner ring with hard chromium plating, a brass insert liner, and a carbon steel outer ring for reliable performance in grease-lubricated applications.

Key Features

  • 52100 Bearing Steel Inner Ring: Premium-grade 52100 (100Cr6) bearing steel, hardened, precision-ground, and treated with hard chromium plating on the spherical sliding surface for superior wear resistance
  • Brass Insert Liner: High-quality brass liner provides an excellent sliding partner to the hard chrome plated inner ring, delivering smooth operation with proper grease lubrication
  • Steel/Brass Sliding Contact: Optimized material pairing ensures reliable tribological performance and extended service life under maintained lubrication conditions
  • 4-Piece Construction: Robust multi-piece design for secure assembly, consistent dimensional stability, and ease of installation
  • DIN ISO 12240-1 Compliant: Manufactured to international dimension series K standards for guaranteed interchangeability with major bearing brands
  • Carbon Steel Outer Ring: Formed carbon steel with protective oil coating, designed for press-fit housing installation
  • Wide Temperature Range: Suitable for applications from -50°C to +150°C when paired with appropriate high-performance grease
  • Maintenance Required: Designed for periodic grease relubrication to maximize bearing life in demanding applications

Technical Specifications

Bearing TypeRadial Spherical Plain Bearing
SeriesGEBK (DIN ISO 12240-1, Dimension Series K)
Sliding ContactSteel/Brass
Inner Ring52100 Bearing Steel (100Cr6), Hardened, Ground, Hard Chromium Plated
Outer RingCarbon Steel, Formed, Oil Coated
LinerBrass Insert
Construction4-Piece
LubricationGrease Lubrication Required (Maintenance Type)
SealingWithout (Open Design)
Operating Temperature-50°C to +150°C (grease dependent)
Available SizesMultiple bore diameters — contact for full range

Applications

Ideal for agricultural machinery, construction equipment, hydraulic cylinders, lifting devices, conveyor systems, industrial manipulators, and any application requiring a DIN-standard radial spherical plain bearing with steel/brass contact and grease lubrication maintenance capability.

Complete GEBK series dimensional range available. Contact us for technical datasheets, 3D CAD models, load rating tables, and competitive OEM pricing.
