High Precision Conveyor Pressed Flange Bearing Housing 127mm
High Precision Conveyor Pressed Flange Bearing Housing 127mm
Specifications
Brand Name :
China-Techpart
Model Number :
TK6204-127(122)
Certification :
ISO9001-2008
Place of Origin :
Anhui of China
MOQ :
1000 sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
18000 sets per week
Delivery Time :
18-25 work days
Packaging Details :
Standard export packing
Material :
SPHC
Applicable Industries :
Building Material Shops, Manufacturing Plant, Mining and port etc
Quality :
low tolerance
Bearing Type :
6204
Roller Diameter :
127mm
Flange Diameter :
122mm
Deepness :
42.5mm
Thickness :
2.5mm / 3mm
Price :
0.4 - 2.5 USD
Description

High Precision Conveyor Roller Pressed Flange Bearing Housing TK6204-127

Basic Specification:
Bearing Pipe Dia (mm) Shaft (mm) Flange (mm) Caliber (mm) Hole Dia (mm) Bearing Seat Dia (mm) Deepness(mm) Thickness(mm)
6204 63 20 59.5 47.1 35 47 42.5 2.5
76 72 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0

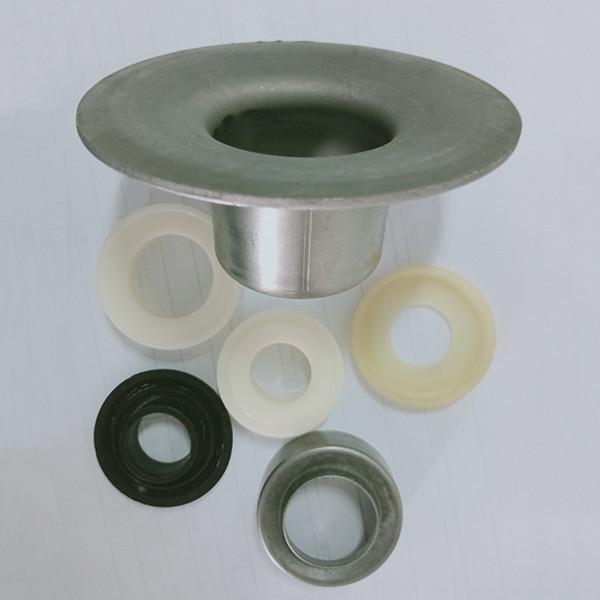

Material for Each Part:

1. Bearing Housing: Pickled steel from Baosteel Group

2. Inner Seal: Nylon PA6

3. Labyrinth Seals: POM

4. Metal Cover: Carbon Steel SPCC

5. Protective Shell: Nylon PA6

Physical Products Show:

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the

best steel maker in China.

High Precision Conveyor Pressed Flange Bearing Housing 127mm

Factory Surroundings:

We work on manufacturing & exporting excellent bearing housing and seals for over 15 years,

and have passed ISO9001-2008 quality management system certification.

We own 4 advanced production lines which make us the largest and most professional

bearing housing maker in China.

High Precision Conveyor Pressed Flange Bearing Housing 127mm

We have a target for Global Market :

Our business has been expanded to over 30 countries over the world such as Russia,

USA, Netherlands,Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Welcome to visit our factory, and we will provide you with our best products and service.

High Precision Conveyor Pressed Flange Bearing Housing 127mm
