Conveyor Roller Plastic Bearing Housing Drawing Industrial Mining Construction
Conveyor Roller Plastic Bearing Housing Drawing Industrial Mining Construction
Specifications
Model Number :
TK
Place of Origin :
China
MOQ :
500 sets
Price :
0.4 - 2.5 USD
Payment Terms :
L/C,D/P,T/T,Western Union,D/A
Supply Ability :
20000 sets/week
Delivery Time :
25 days
Packaging Details :
In wooden cases
Name :
Bearing housing
Material :
Steel
Application :
Conveyor transporting mining
OEM/OEM :
Welcome
Description

Conveyor Roller Plastic Bearing Housing Drawing Industrial Mining Construction


Specification:


1).Pipe diameter(mm): 60, 63, 76, 89, 108, 133, 159,176,194,219

Length(mm):190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530.

Thickness(mm):3, 3.5, 4, 4.5, 5, 6

2).Shaft diameter(mm):20, 25, 30, 35, 40,45,50

3).Bearing size: 6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308

4).Bearing Housing type: TK TKII TKIII DTII TURNUP

5).Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance

6).Standard: ISO,MA

7).Production capacity: 2000pcs/day.


Features:

Steady running, reliable quality and reduce maintenance;

Less movement longitudinally, rotating smoothly, extends the life span;

Various bearing housing and sealing structure are available for the customers choice;

Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.



Parameter:

Model Specification Flange mm Bearing seat dia mm Caliber mm Hole mm Deep dia mm Height mm Thickness mm
TK 6204-89 84 47 47.1 25 45 47.5 3
TK 6204-108 103 47 47.1 25 45 47.5 3
TK 6204-133 128 47 47.1 25 45 47.5 3
TK 6204-159 153 47 47.1 25 45 48 3
TK 6205-89 84 52 52.1 30 46 48.5 3
TK 6205-108 103 52 52.1 30 46 49 3
TK 6205-133 128 52 52.1 30 46 49 3
TK 6205-159 153 52 52.1 30 46 49 3
TK 6305-108 103 62 62.1 35 49 52 3
TK 6305-133 128 62 62.1 35 49 52 3
TK 6305-159 153 62 62.1 35 49 52 3
TK 6306-108 103 72 72.1 40 51 54 3
TK 6306-133 128 72 72.1 40 51 54 3
TK 6306-159 153 72 72.1 40 51 55 4
TK 6307-133 128 80 80.1 45 53 57 4
TK 6307-159 153 80 80.1 45 53 57 4
TK 6308-133 128 90 90.1 45 55 59 4
TK 6308-159 153 90 90.1 45 55 59 4
TK 6308-194 188 90 90.1 45 55 59 4


Material:

1. Bearing Housing: Carbon steel SPHC from Baosteel Group


2. Inner Sealing Ring: Nylon PA6


3. Male/Female Labyrinth Seal: POM


4. Cover Cap: Carbon Steel SPCC


5. Protective Shield: Nylon PA6

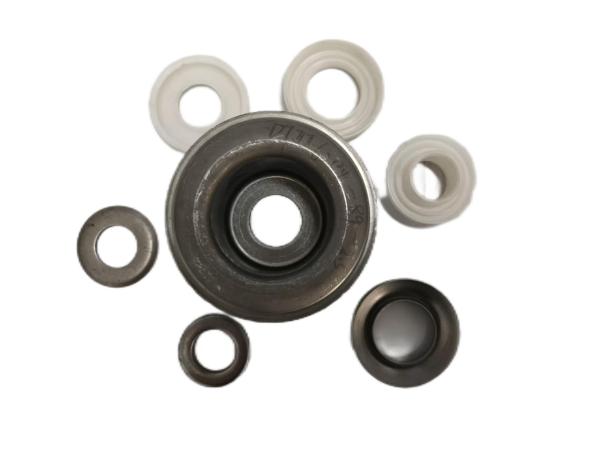

Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel

maker in China.
