Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200
Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200
Specifications
Model Number :
TC-220*2200
specification :
TC-220*2200
Price :
18950 USD
Packaging Details :
steel package
weight :
2400kg
Rollerlengthrange :
500mm - 3000mm
Brand Name :
China-techpart
color :
blue with white
Machinetype :
Roller Forming Machine
Supply Ability :
5 SETS per 1 month
Material :
Steel, Stainless Steel, Aluminum
Controlsystem :
PLC Control
Speed For Spindle :
500、700、900r/min
Payment Terms :
L/C,D/P,T/T,MoneyGram
Precision :
±0.01mm
Spindle Motor :
3kW×2（set）
Delivery Time :
20 days
Cutting Thickness :
3mm-8mm
Shaft Diameter :
Φ20~Φ60mm
Place of Origin :
China
produce year :
2021
Feature :
Long Life,High Precision,Low Noise
MOQ :
1 set
Central height of machine :
900mm
Description

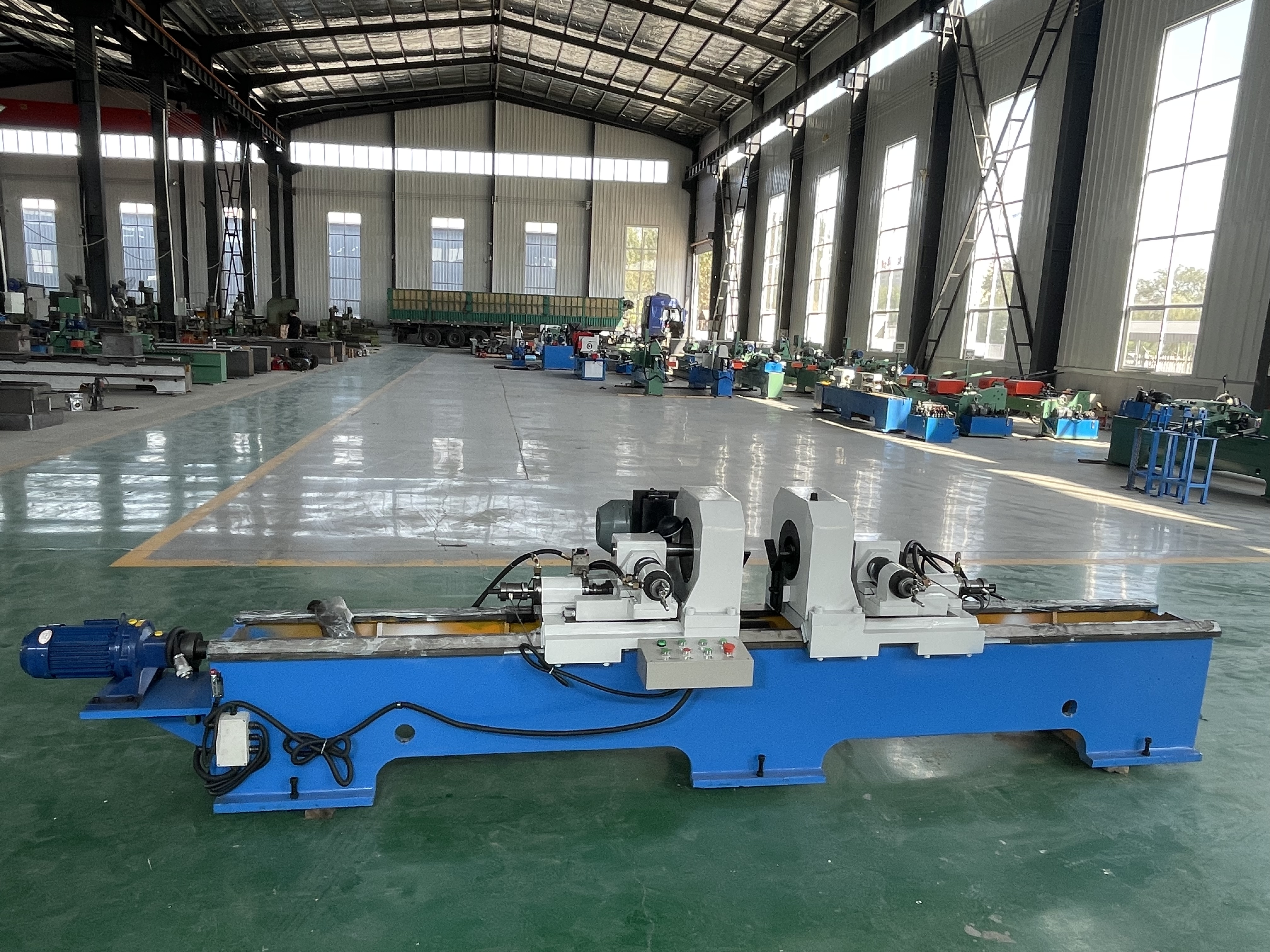

Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200


1. Main uses and scope of application


1 The machine tool is an automated special machine tool designed for processing the ends of the
steel pipe of belt conveyor rollers. Our company designs this machine tool based on the principles of
energy saving and high efficiency.

2 The tool has infinite speed regulation, and the left and right feed cylinders use hydraulic synchronization circuits,
which can feed and retract the tool at the same time; the radial feed is manual and can be accurately adjusted
according to processing requirements; it uses the hydraulic and the PLC control system greatly reduces the
requirements for labor levels and facilitates labor management and equipment maintenance.

3 Roller processing does not belong to strong cutting. According to the actual use of this process, this
machine tool adopts a 5.5Kw motor with small starting current, agility, high efficiency and low
consumption, which reduces the cost of use.

4 Equipped with a hydraulic automatic tool release mechanism, when the tool is fed to the predetermined position,
the tool is automatically released to avoid scratching the processed surface.

5 The clamping screw is set in the middle of the equipment based on long-term usage experience. For double-car
equipment with screws on the side, when the equipment is slightly aged, the support plate is prone to twisting and
jumping after clamping.

Equipment with screws in the middle does not have this problem, and this equipment does
not need a separate foundation, and it runs stably.


Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200


2. Main specification and technical parameter


NO. ITEM PARAMETERS
1
Model
TC-220*2200
2
Machine spindle center height
900mm
3
Tube outer diameter
76-219mm
4
Tube length
200-2200mm
5
Processing end stop depth
0-70mm
6
Slide moving speed
2m/min
7
Spindle speed
350/500r/min
8
Feed speed
Hydraulic stepless speed regulation
9
Cutting depth
0-3mm
10
Tool holder radial feed scale value per grid
0.05mm
11
Tool holder radial repeat positioning accuracy
0.05mm
12
Main drive moto
5.5kw*2 1450r/min
13
Workpiece clamping motor
1.5kw 1450r/min
14
Hydraulic system working pressure
2.5-4Mpa
15
Flow
0-25L/min
16
Dimensions
4500×1120×1200mm
17
Weight
2400Kg

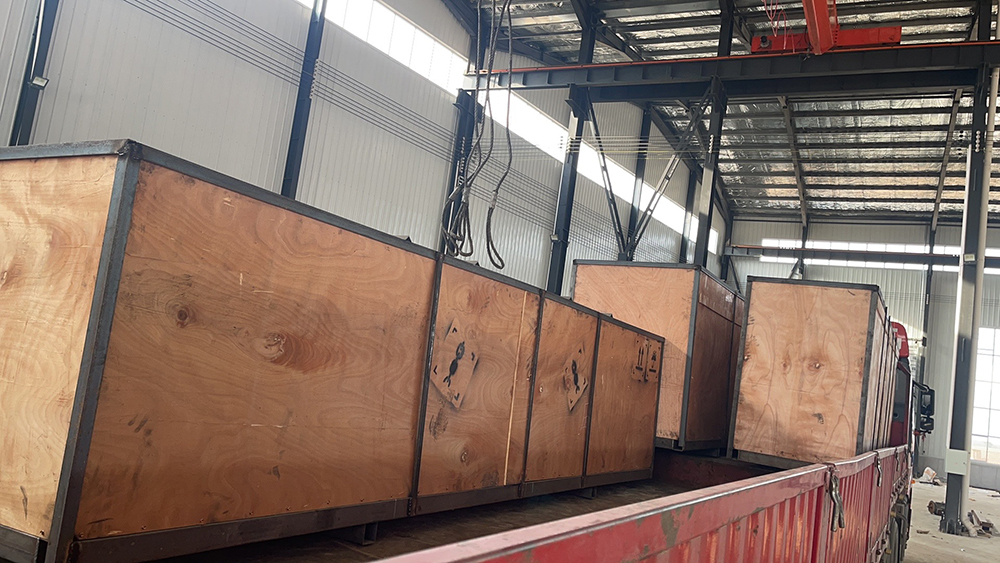

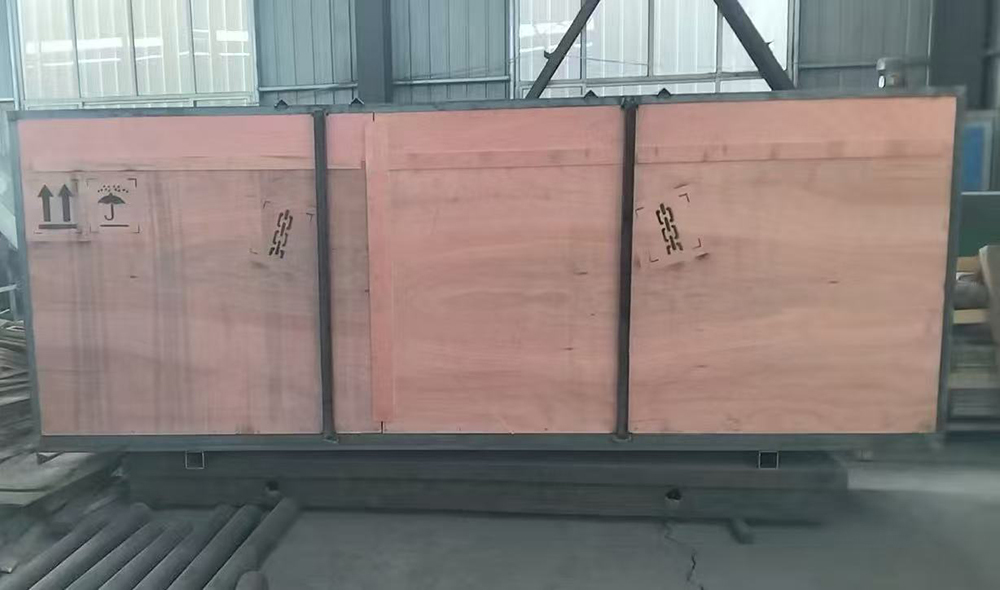

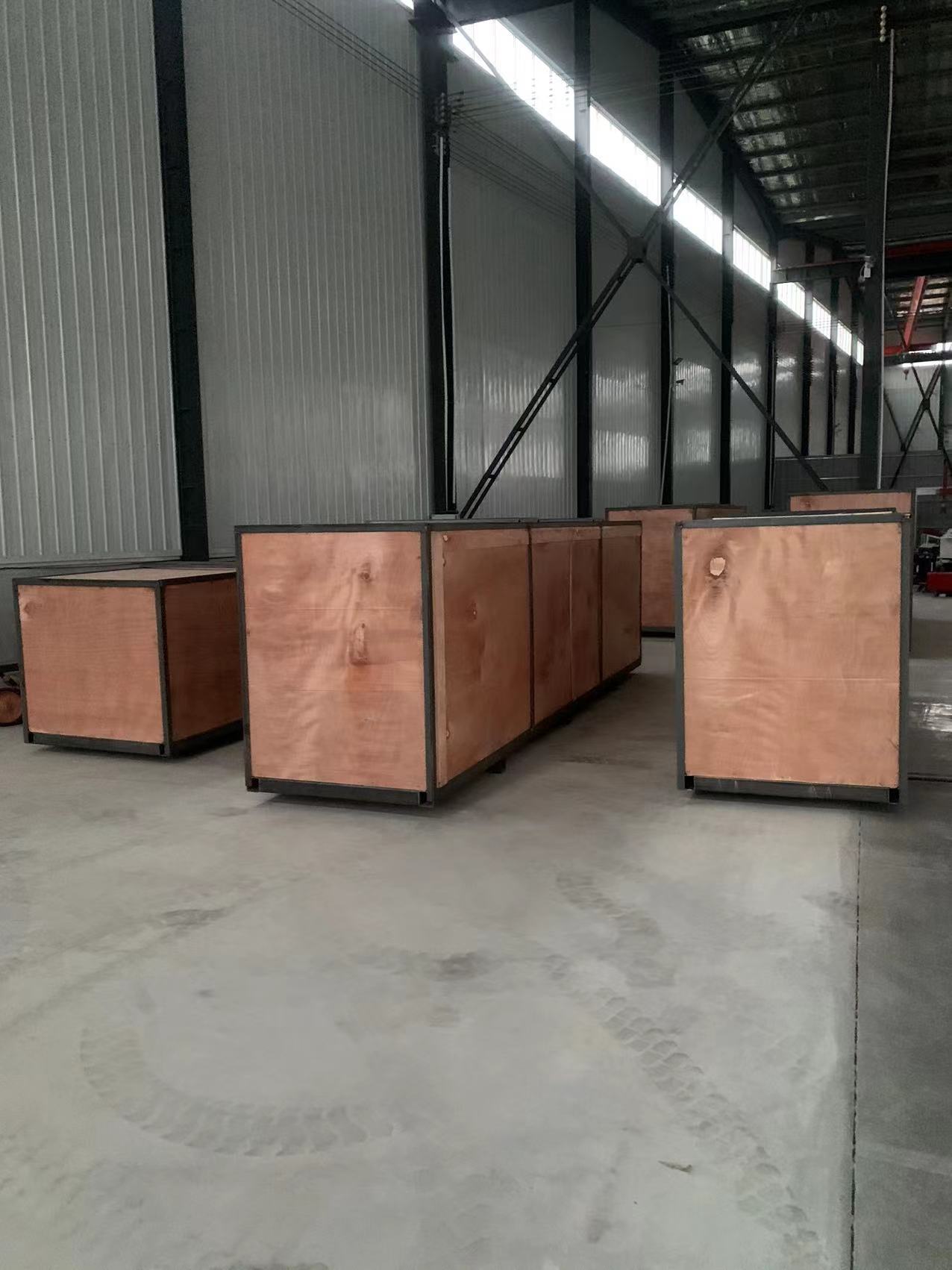

3, Equipment's Packing Show:


Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200Steel Pipe Double-Ends Automatic Hole Turning Machine TC-220*2200


Usually we use the wooden case to pack the roller steel pipe hole milling machine, the machine will not get wet

during the process of sea & land transportation. Besides, our welder in the factory will add the metal frame

based on the wooden case to make it sturdy enough. The inside machine then gets well-protected.
