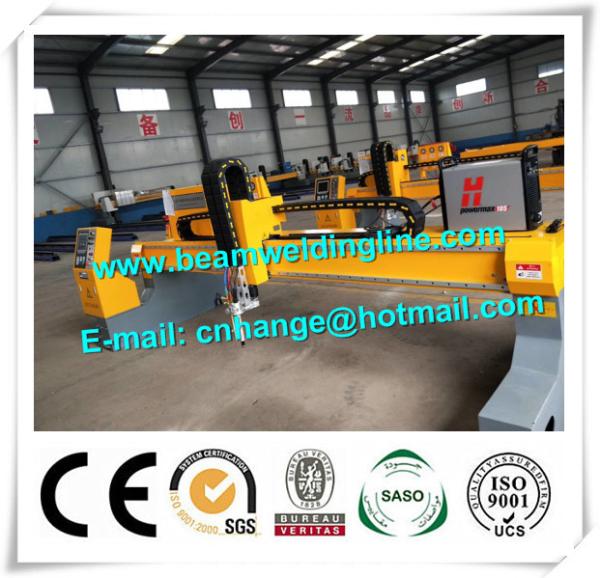

CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
CNC Plasma Metal Cutting Machine , Gantry Sheet CNC Plasma Cutting Machine
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
GSD
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Delivery Time :
30 working days
Packaging Details :
Standard Packing
Control way :
CNC
Cutting method :
Plasma and Flame
CNC system :
Beijing Start or Shanghai Jiaoda
Plasma system :
Huayuan LGK200
Servo motor :
Panasonic, Japan
Warranty :
1 Year
Description

Features

1. Transversal effective cutting width is 1.0m,1.2m and longitudinal effective cutting length is 1.5, 2m, 2.5m.

2. With automatic ignition and the electronic lifting system,

3. two cutting ways optional: plasma and flame.

4. It can be applied to metal materials or non-ferrous metal cutting of medium and small enterprises.

5. can be used in either indoor or outdoor situations. 4-axis can be expanded linkage functions.

6. Any complex plane Graphice software.

Prameters

Cutting mode Plasma and Flame
Effective Cutting Size Width 3000 mm
Plasma Cutting Thickness 0-50mm (Depend on plasma power source capacity
Flame Cutting Thickness 6--200mm
Cutting speed 0-4000 mm/min
Plasma Power Source HUAYUAN/ Hypertherm
Plasma Air Only pressed Air
Flame Cutting Gas Acetylene/ Propane
Ignition device Auto ignition device
File transmission USB transmission
Height regulating device Arc voltage height control or Electric adjustable high
Drive Mode Single-side
Cutting precision ±0.05mm National standard JB/T10045.3-99
Control accuracy ±0.01mm
Machine total weight 140 Kg
Power source 220±10%VAC 50/60Hz 200W
Working Temperature -10°C-60°C. Relative Humidity, 0-95%.
