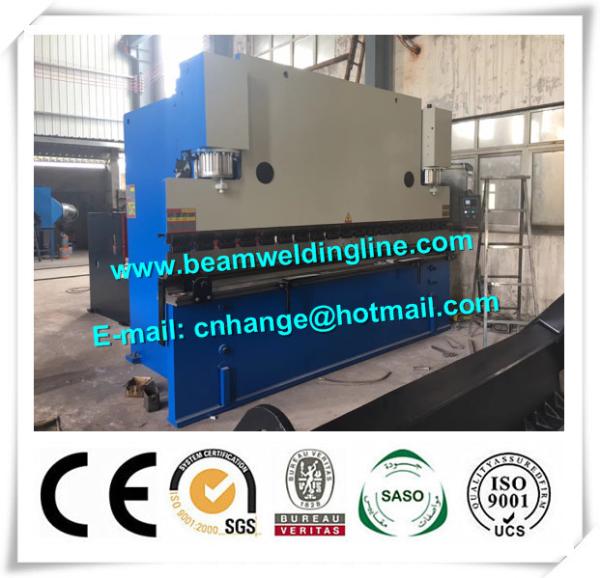

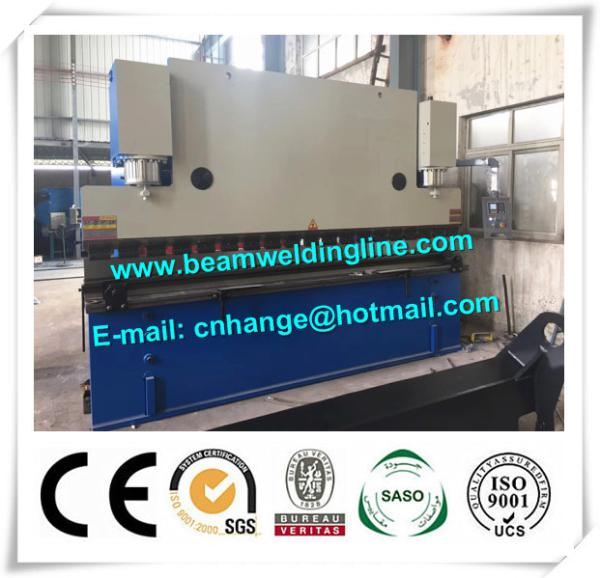

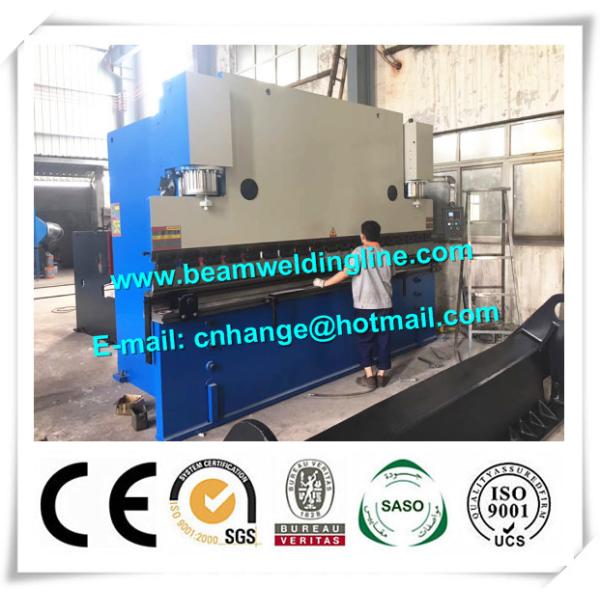

High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WC67Y
Certification :
CE, ISO
Place of Origin :
CHIA
MOQ :
1
Supply Ability :
5-10 sets per month
Delivery Time :
30 working days
Packaging Details :
Standard pakcing
NC system :
E21
Blade material :
T8
Main motor :
Jiangsu Hengli
Main electric components :
Siemens or Schneider
Seals :
VALQUA, Japan
Hydraulic pump :
HIGH-TECH
Description

Steel Plate Hydraulic Sheet Metal Brake Bending For 160T , High Performance

WC67Y- 160T/3200 Hydraulic Press Brake Machine

1. Technical parameters

Model Units WC67Y-160T/3200
Maximum bended steel sheet thickness mm 7
Bended steel sheet strength N/mm2 450
Nominal pressure kN 1600
Worktable length mm 3200
Distance between uprights mm 2520
Throat depth mm 400
Ram stroke mm 200
Maximum opening height mm 470
Gear pump Model / CP0-25-P-10R
Flow L/min 25
Pressure MPa 31.5

Ram speed

 Unloaded mm/s 60
Work mm/s 8
Return mm/s 70
Working pressure of hydraulic system Mpa 26
Main motor power kW 11

3. The main structure of the device

● Ram part

Hydraulic drive WC67Y-160T/3200 E21 NC press brake machine, ram part consists of ram, cylinder, and mechanical block fine-tuning structure. The left and right cylinders fixed on the frame, hydraulic system drive piston bring ram to move up and down.

● Worktable part

Button control the worktable on the front of it, motor drive back gauge move forward and backward, and numerical display the movement, travel switches to limit the front and back position.

● Back gauge part

Back gauge adopts motor transmission, drive two high precision ball screw synchronous move through sprocket, the control system displays the requirement value.

High Tech Steel Plate Bending Machine , Hydraulic Sheet Metal Brake Bending For 160T
