WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
WC67Y-200T/3200 NC Press Brake Bending Machine Sheet Metal Bending Brake
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WC67Y
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
standard export package
Steel sheet material :
Q235A
COntroller :
E21
Steel sheet strength :
450N.M
Seals ring :
Valqua, Japan
Mold material :
T8
Electric components :
Schneider or Siemens
Description

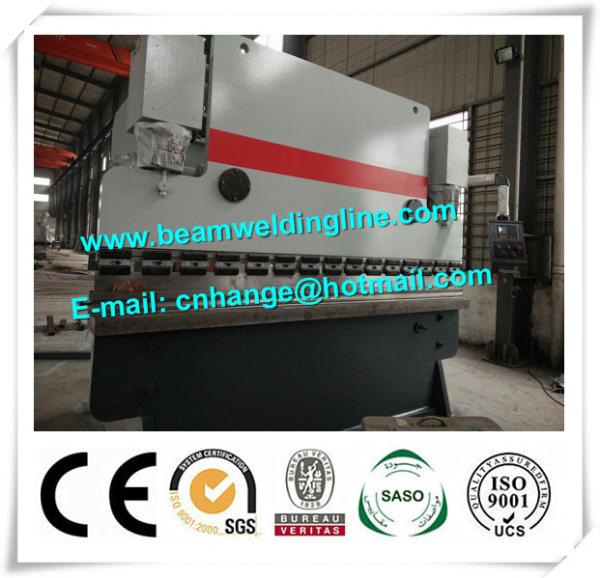

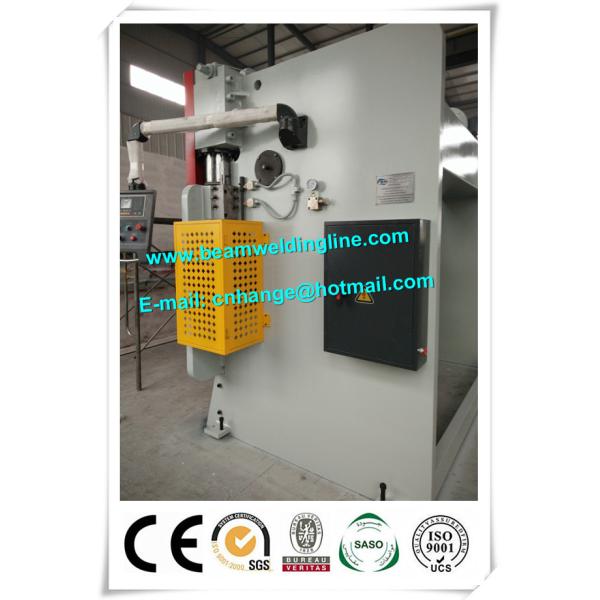

WC67Y- 200T/3200 Hydraulic Press Brake Machine

1. Overview

● The device adopts all steel-welded construction, and vibratory stress relief. Thus the device with good rigidity and high strength, to permit high accuracy.

● The whole frame with good rigidity, work is stable, safety and reliable, easy to operate.

● To adopt stress theory to control the deformation of structural parts effectively, so can to get satisfied work-piece.

● Crowning mechanism: upper rapid clamping fixture, which has both quick fastening and crowning function.

2. Technical parameters

Model Units WC67Y-200T/3200
Bended steel sheet strength N/mm2 450
Bended steel sheet thickness mm 8
Nominal pressure kN 2000
Worktable length mm 3200
Distance between uprights mm 2520
Throat depth mm 400
Ram stroke mm 200
Maximum opening height mm 480
Gear pump Model / CP0-40-P-10R
Flow L/min 40
Pressure MPa 31.5
Ram speed Unloaded mm/s 60
Work mm/s 8
Return mm/s 70
Working Pressure of hydraulic system Mpa 26
Main motor Power kW 15
Net Weight kg 11500
Overall dimension mm 3100*1800*2850
