300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
Specifications
Brand Name :
FRIENDSHIP MACHINERY
Model Number :
WC67Y
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
standard export package
Steel sheet material :
Q235A
COntroller :
E21
Steel sheet strength :
450N.M
Seals ring :
Valqua, Japan
Mold material :
T8
Electric components :
Schneider or Siemens
Description

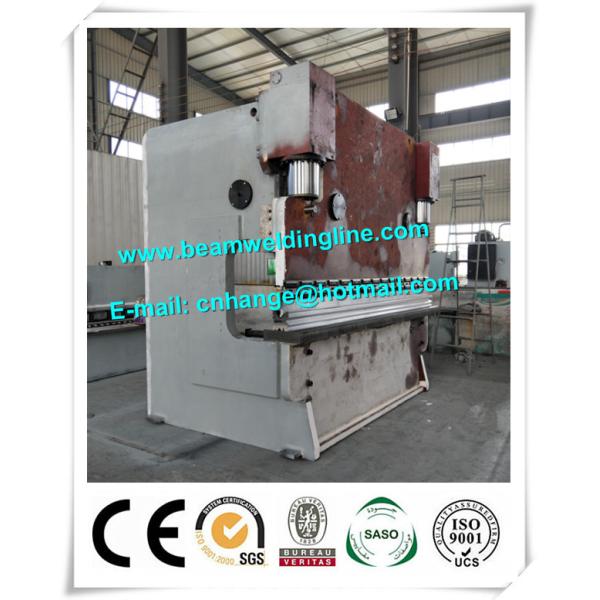

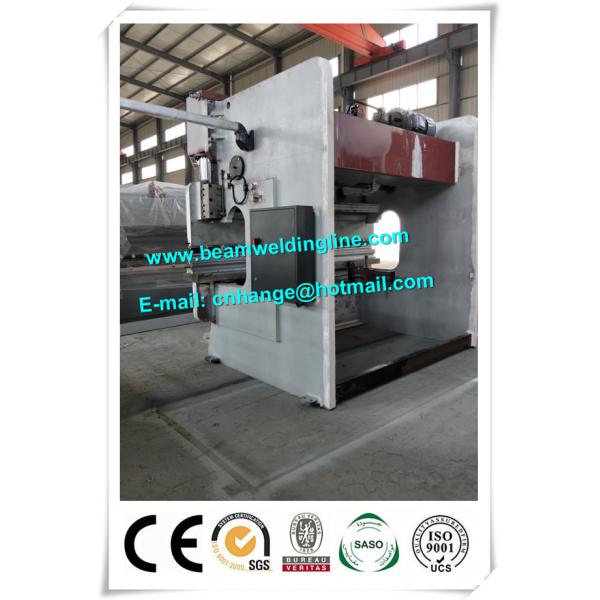

WC67Y- 300T/3200 NC Press Brake Machine

1. Overview

● The device adopts all steel-welded construction, and vibratory stress relief. Thus the device with good rigidity and high strength, to permit high accuracy.

● The whole frame with good rigidity, work is stable, safety and reliable, easy to operate.

● To adopt stress theory to control the deformation of structural parts effectively, so can to get satisfied work-piece.

● NC controller: E21 from ESTUN is a CNC controller specialized in torsion axis synchronous press brake machine.

2. Technical parameters

Model Units WC67Y-300T/3200
Controller / E21
Bended steel sheet strength N/mm2 450
Maximum bended thickness mm 14
Nominal pressure kN 3000
Worktable length mm 3200
The distance between uprights mm 2520
Throat depth mm 400
Ram stroke mm 250
Maximum opening height between worktable and ram mm 540
Gear pump Model / CP1-63-P-10R
Flow L/min 63
Pressure Mpa 31.5
Ram speed Unloaded mm/s 60
Work mm/s 8
Return mm/s 70
Working pressure of hydraulic system Mpa 26
Main motor power kW 22
Net weight kg 14500
Overall dimension mm 3500*2000*3050

300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller

300Tx3200 Hydraulic Press Brake Machine For Steel Plate E21 Controller
