Specifications
Brand Name :
Friendship Machinery
Model Number :
FSM-PB
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
20 working days
Packaging Details :
wooden pallet
Model :
WC67Y-600T/6000
Controller :
E21
The bended steel sheet strength :
450N/mm2
Overall diemension :
6100×2500×4200
Total weight :
52000kgs
Working Pressure of hydraulic system :
26Mpa
Description

1. Overview

● The device adopts all steel-welded construction, and vibratory stress relief. Thus the device with good rigidity and high strength, to permit high accuracy.

● The whole frame with good rigidity, work is stable, safety and reliable, easy to operate.

● To adopt stress theory to control the deformation of structural parts effectively, so can to get satisfied work-piece.

● The workbench adopts bottom cylinder to do deflection compensation, to higher work accuracy.

● Controller: E21 from ESTUN is a cnc controller specialized in torsion axis synchronous press brake machine.

2. Technical parameters

Model Units WC67Y-600T/6000
Controller / E21
The bended steel sheet strength N/mm2 450
Nominal pressure kN 6000
Worktable length mm 6000
The distance between uprights mm 4850
Throat depth mm 400
Ram stroke mm 300
Max opening height between worktable and ram mm 590
Gear pump Model / CP2-100-P-10R
Flow L/min 100
Pressure Mpa 31.5
Ram speed Unloaded mm/s 50
Work mm/s 6
Return mm/s 60
Working Pressure of hydraulic system Mpa 26
Main motor Power kW 45
Electrical system V/Hz 3 phase,380V, 50HZ
Total weight kgs 52000
Overall diemension mm 6100×2500×4200

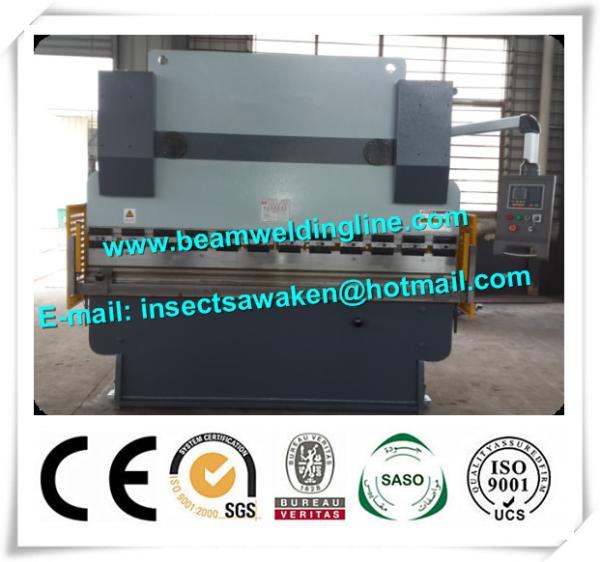

CE Hydraulic Press Brake Machine CNC Steel Sheet Bending Machine 6100 * 2500 * 4200MM
