Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine
Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine
Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine
Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine
Specifications
Brand Name :
AllWin
Model Number :
MINI0.6, MINI1.0,MINI 1.4 ,MINI2.0
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD3000--USD15000/set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30sets /month
Delivery Time :
20-30 Working days
Packaging Details :
Wooden box
Litre :
0.6-2.0 L
Power :
2.2-5.5 kW
Inner chamber material :
silicon carbide, sus304 stainless steel
Outter chamber :
304 stainless steel
Application :
laborytory testment, small batch production
Wegit :
400-600 kg
Explosion :
Ex proof
Voltage :
380 V
Description

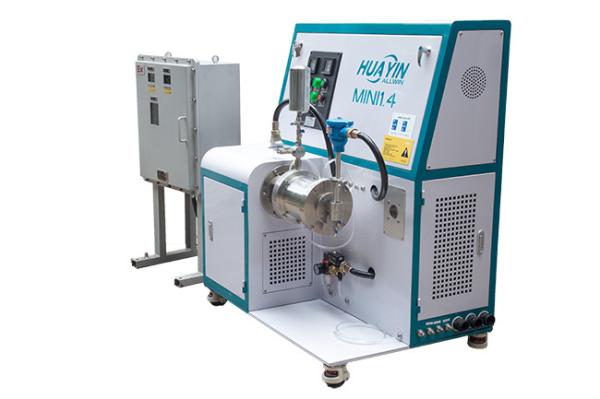

Small Batch Production Of Coating Painting Dyestuff Exposive Grinding Mills Laoboratory Bead Mill

Mini series laboratory bead mill machines are mainly applicated in scientific research institutions or company's lab for lab testment or small batch production. For company's small batch production, with different colors transition, it's easy to operate and clean the mills. That's why small lab/ laboratory bead mills are so popular in market.

There are many types for your choice:

1. different inner chamber materials: silicon carbide ceramics(which is more wear-resistant, better heat rejection, longer work life, etc), stainless steel, or others you need.

2. different inner disperser materials: ceramics, stainless steel, wearable steel, etc

3.different explosive performance: ex-proof, or non ex-proof. Ex-proof lab bead mill is matched with explosion-proof electrical box.

Main parameter:

NO Items MINI 0.6-2.0 Note
1

Effective Volume

(L)

 0.6-2.0L
2 Main power 2.2-5.5 kW EX-proof 380V /220V
3 Mechanical seal Integral single end mechanical seal
4 Feed pump G1/2” ARO diaphragm pump
5 Appliance Delixi
6 frequency converter matched
7 Discharging way 304 stainless steel, Screen ring static discharge
8 Bearing NSK bearing

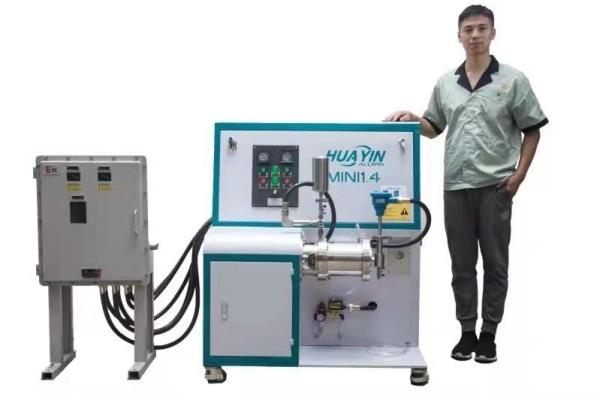

Display
Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine
Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine

Related machines:

Dyestuff Small Batch Bead Mill For Paint 0.6L Exposive Grinding Mill Machine

FAQ

Q1:Trading company or manufacturer?

A1: We are the manufacturer.

Q2: Do you have own R&D team?

A2: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q3: How to choose other related products?like bead mills , high speed dispersers or beads?

A3: Contact our seller with your information and your requirement, we can give you an appriopriate suggestion after communication with our engineers.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
