Customization 15 Liters Degold Zm Disc Type Horizontal Bead Mill for Milling Cutter Object

DEGOLD ZM series horizontal bead mill is a kind of wet-grinding machine to dispersing low, medium and high viscosity materials. The special designed dispersion discs, appropriate grinding bead, and the functional mechanical seals ensure the effective of the DEGOLD ZM series horizontal bead mill.

Customers can choose the diameter of the bead, the material of the dispersing shaft, dispersing discs to improve the quality of your products. We have many models, and the effective volume from 0.3L to 250L. In a word, we will choose the best one for you according to your producing formulation.


Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

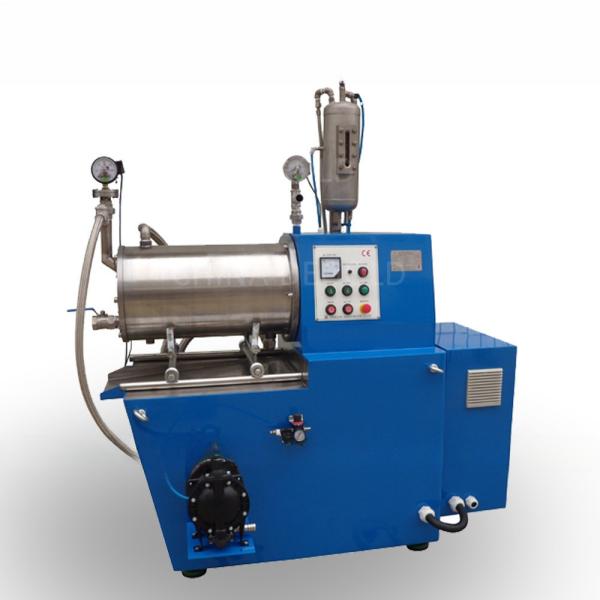

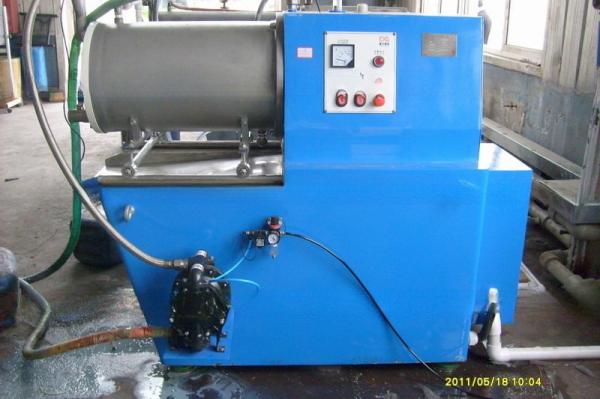

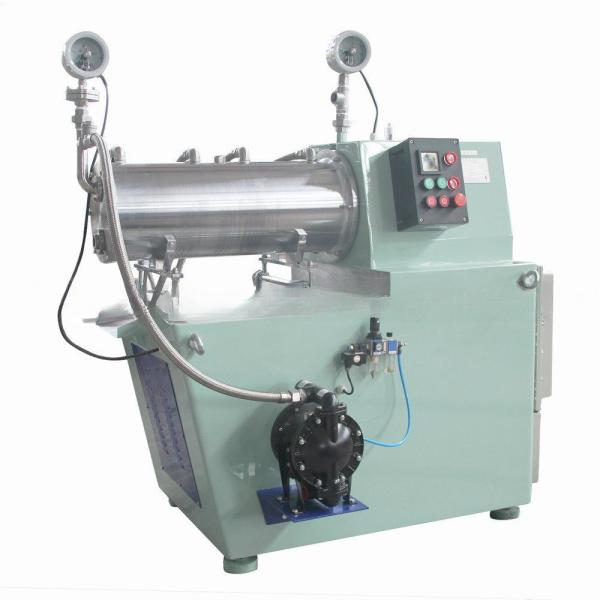

ZM15 horizontal bead mill (15liters)

1) 15 Liters,
2) Suitable for zirconia grinding beads,
3) Mechanical seal, (single mechanical seal and double mechanical seal for option)
4) Explosive proof for solvent based formulation/non explosive proof for water based formulation.
5) Hard alloy griniding chamber and grinding discs. Different materials for grinding chamber and grinding discs for option.
6) Double-diaphragm fluid transfer pump,
7) With/without AC drive to control grinding shaft rotary speeds.

Application:



There are the others construction ways and materials for 5 liters, please contact with us to get suitable model for your productions. Thanks.

Production Line:


ZM Series Disc Type Bead Mill Technical Data Sheet:

CE Certificate:


Exhibition:


Customers Layout:
