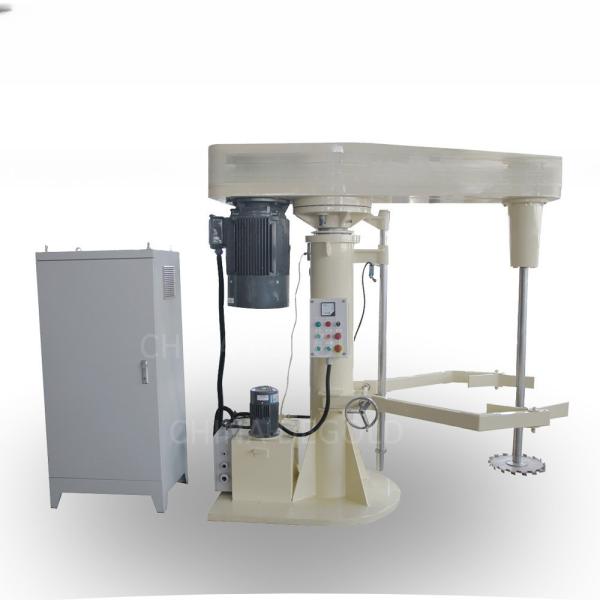

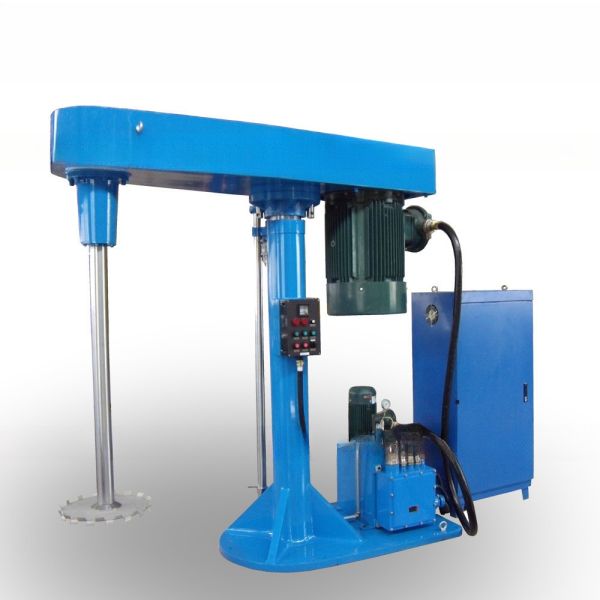

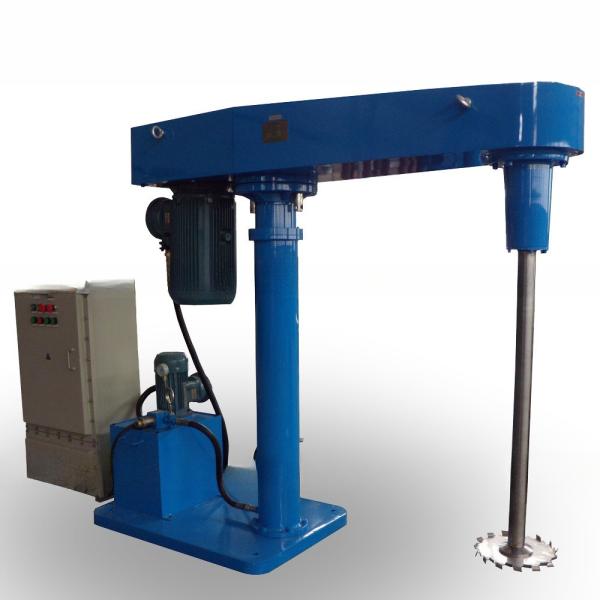

SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
Specifications
Model NO. :
FS30
Ex Proof Type :
Ex Proof and Non Ex Proof
Transport Package :
Fumigation Wooden Box
Specification :
CE, ISO9001, SGS
Trademark :
DEGOLD
Origin :
Chongqing, China
HS Code :
8474390000
Supply Ability :
500sets/Year
Dispersion Shaft Lifting Type :
Hydraulic
Main Motor Power :
30kw
Application :
Paints, Inks, Pigments, Pastes etc.
Function :
Pre-Mixing
Dispersion Disc Material :
Ss304
Dispersion Shaft Rotary Speeds :
Inverter Controls
Customization :
Available | Customized Request
Description

Ss304 Dispersion Disc Hydraulic Lift Wall Paint Disperser with 30kw Main Motor PowerSS304 Disc Wall Paint Disperser With 30kw Main Motor Power

Product Description

DEGOLD High Speed Disperser for paint industry

DEGOLD FS series high speed disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame.

DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, hydraulic device etc.

The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s.

Principle of Operation:

The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

We produce the high speed dispersers with following kinds motor powers:
5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.

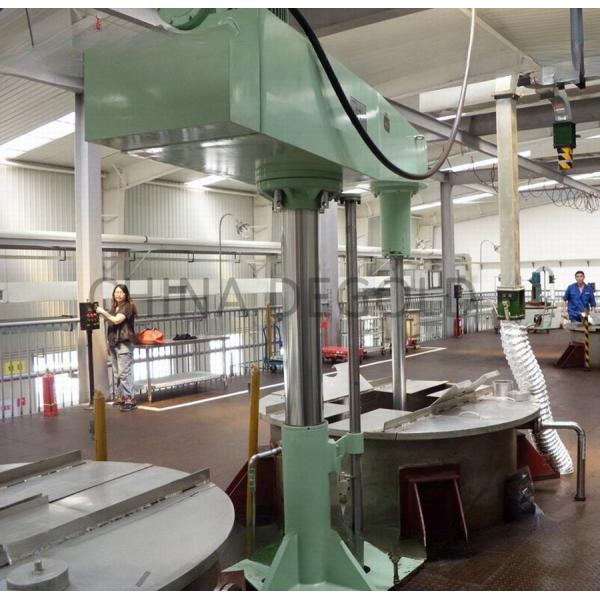

Application

SS304 Disc Wall Paint Disperser With 30kw Main Motor Power

Technical Data

FS5.5 FS7.5 FS11 FS15 FS18.5 FS22 FS30 FS37 FS45 FS55 FS75
Main motor power (kW) 5.5 7.5 11 15 18.5 22 30 37 45 55 75
Dispersion shaft rotary speeds (r/min) 0~1500 0~1200 0~1000
Dispersion shaft lifting height (mm) 1200 1400 1500
Estimated batch 350 400 450 500 700 1000 1500 2000 2500 3000 4000
Dispersion discs diameter (mm) 200 250 250 250 300 300 350 400 450 500 550
Dimension L 1655 2150 2120 2500
W 570 800 900 1000
H 1880 1960 2200 2500
Net weight 1140 1155 1165 1830 1850 1885 2000 2055 2085 2310 2425

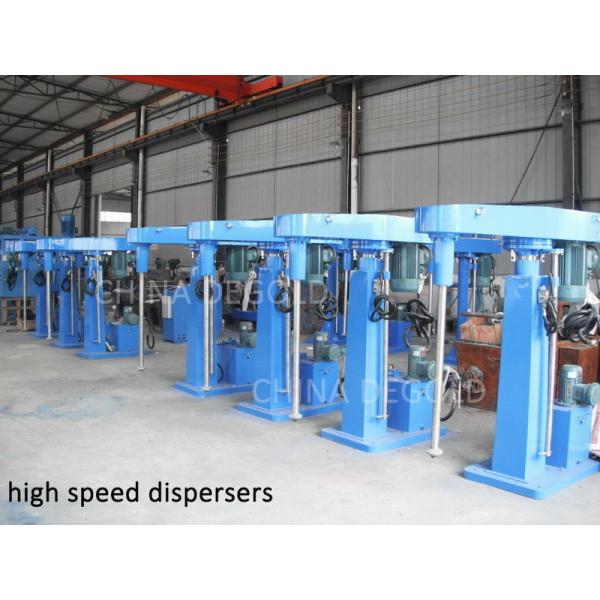

Production Line


SS304 Disc Wall Paint Disperser With 30kw Main Motor Power

Our Services

We can send out one or two technicians to buyer's location for providing installation and training service.

Packaging & Shipping

Fumigation wooden box.


SS304 Disc Wall Paint Disperser With 30kw Main Motor Power

Exhibitions


SS304 Disc Wall Paint Disperser With 30kw Main Motor Power
