Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
cable tray-021
Certification :
ISO,CE
Place of Origin :
China
MOQ :
100m
Price :
5-65usd
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000m
Delivery Time :
25 days
Packaging Details :
pallet
product name :
cable tray catalogue
material :
galvanized /aluminum
color :
metal color or customize
key words :
wire mesh cable tray
Description

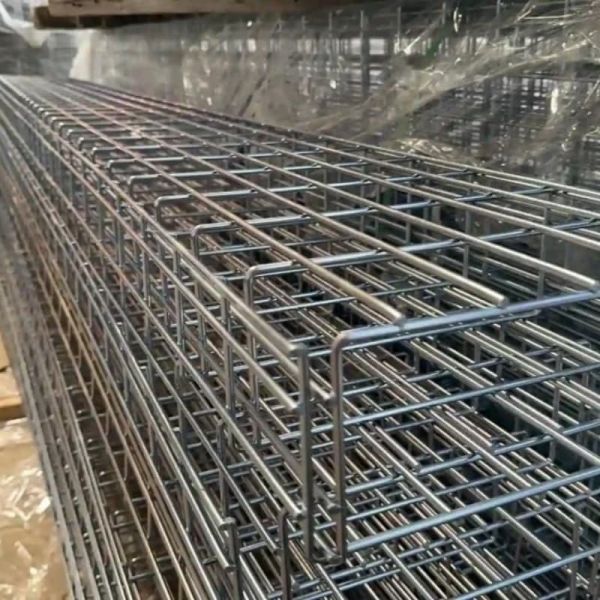

wire mesh cable tray

bending company's Wire Mesh Cable Tray: Characteristics Summary

As an important category of cable support systems, Wire Mesh Cable Tray possesses distinct characteristics due to its unique design. Its core lies in its construction from high-strength steel wires welded into a stable grid structure.

Below is a summary of its key features:

Feature Category Specific Feature Explanation & Benefits
Structural Design Fully Open Mesh Constructed from welded steel wires, providing up to 90% open space for optimal air flow.
Lightweight & High Strength Employs a stable triangular structure based on the "suspension bridge" principle. Weighs only 30%-40% of traditional solid-bottom trays yet offers strong load-bearing capacity.
Installation & Maintenance Flexible & Easy Installation Features standardized, modular components that allow for on-site cutting and direction changes. Installation is several times faster than traditional tray systems.
All-Access Maintenance Cables can be laid, added, removed, or inspected from any point—top, bottom, or sides—without needing to enter the tray or disassemble the system.
Performance Advantages Superior Heat Dissipation The open structure allows heat generated by cables to dissipate quickly, effectively reducing operating temperatures, which increases ampacity and extends cable lifespan.
Excellent Load & Span Capacity Optimized mechanical design supports heavy loads over long spans (e.g., 6-9 meters), significantly reducing the number of required support points.
No Accumulation of Dust or Liquids The grid structure prevents the buildup of dust, oil, or condensation, lowering fire risk and maintenance needs.
Enhanced System Safety & Visibility All cables are clearly visible for easy identification, tracing, and fault finding. In case of an incident, flames and smoke can vent upward freely.
Application & Compatibility Broad Applicability Suitable for most environments, excelling particularly in data centers, industrial plants, and commercial buildings where heat dissipation, flexibility, and visibility are critical.
Good EMC (When Grounded) When the system is properly grounded, it can create a Faraday cage effect, providing a degree of electromagnetic shielding for sensitive data cables.

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh

bending cable tray company Core Summary & Material Selection Guidance

The core advantage of wire mesh cable trays is that they achieve extreme ventilation and unprecedented installation/maintenance flexibility while maintaining high strength, making them ideal for dynamically evolving and high-density cabling environments.

In practical selection, the material determines its suitability:

  • GI (Galvanized Iron): The most economical and universal choice, suitable for most dry or generally humid indoor environments like offices, shopping malls, and internal data center spaces.

  • SS (Stainless Steel): Used in highly corrosive environments such as food processing, chemical plants, coastal areas, or outdoor installations. Higher cost but offers extremely long service life.

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh

High Strength Metal Color Wire Mesh Cable Tray Catalogue Fully Open Mesh
