Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring
Specifications
Description

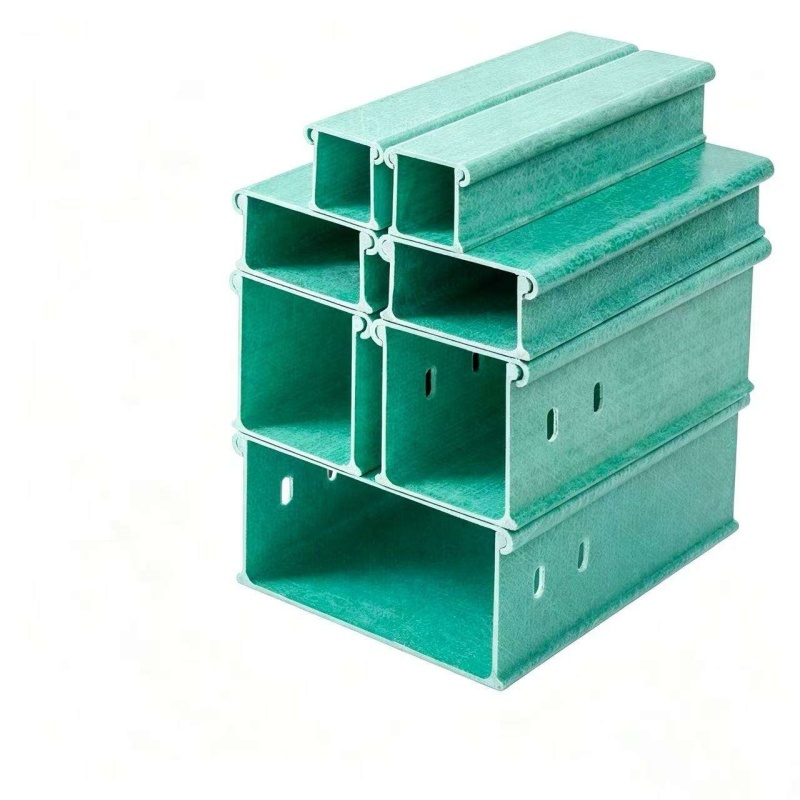

Bendin Industrial Anti-Corrosive Composite Fiberglass Cable Duct for Industrial Wiring Heavy-duty, anti-corrosive composite fiberglass cable ducts engineered for harsh industrial environments, delivering non-conductive, chemical-resistant, and maintenance-free cable protection for complex plant wiring systems.

Anti Corrosive Composite Fiberglass Cable Duct 800mm x 200mm For Industrial Wiring

Advantages of Bendin Industrial Anti-Corrosive Composite Fiberglass Cable Duct for Industrial Wiring:

1. Unmatched Corrosion & Chemical Resistance

2. High Strength-to-Weight Ratio

3. Maximum Electrical & Fire Safety

4. Zero Maintenance & Lowest Total Cost of Ownership (TCO)

5. Effortless & Safe Installation

6. Thermal Stability & Weather Resistance

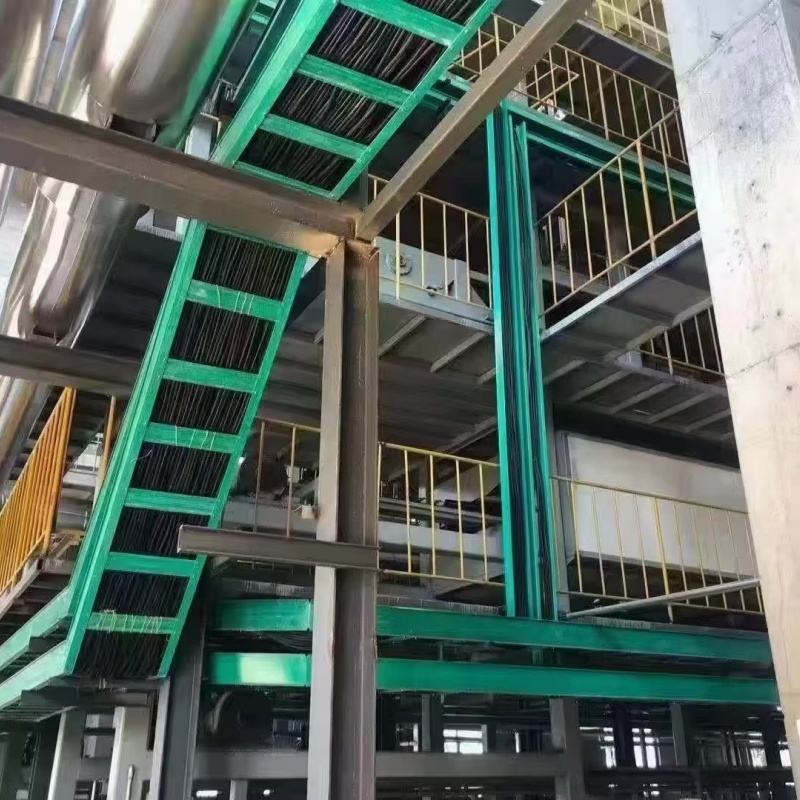

Bendin Industrial Anti-Corrosive Composite Fiberglass Cable Duct for Industrial Wiring Wide Application Scenarios:

1. Chemical & Petrochemical Processing Plants

2. Wastewater Treatment & Desalination Facilities

3. Marine, Port & Offshore Infrastructure

4. Mining, Metals & Heavy Manufacturing

5. Energy, Power Generation & Utilities

6. Transportation & Public Infrastructure Tunnels

Bendin Industrial Anti-Corrosive Composite Fiberglass Cable Duct for Industrial Wiring common parameters:

Parameter Category Standard Specification Options / Customization Range
Brand / Manufacturer Bendin Industrial OEM / ODM Custom Branding Available
Material Composition Premium Fiberglass Reinforced Polymer (FRP/GRP) Isophthalic Polyester, Vinyl Ester, Fire-Retardant Resin
Manufacturing Process Continuous Pultrusion (High Fiber Volume Ratio) Custom Molded Fittings (Hand Lay-Up / Compression)
Duct / Trunking Type Solid Bottom Trough / Perforated Duct / Vented Channel Dustproof Enclosed Duct with Snap-on Cover
Width (W) 50 mm – 800 mm (Standard: 100, 150, 200, 300, 400, 600 mm) Custom width up to 1000 mm available
Height / Depth (H) 50 mm – 200 mm (Standard: 50, 75, 100, 150 mm) Heavy-duty side rail heights upon request
Standard Length (L) 3000 mm / 6000 mm (3m or 6m per section) Custom pre-cut lengths based on project layout
Wall Thickness 3.0 mm – 6.0 mm (Heavy-duty industrial grade) Reinforced wall thickness up to 8.0 mm
Color Options Safety Yellow, Light Gray (RAL 7035), Dark Gray Custom RAL color matching available
Working Temperature −40∘C to +120∘C High-temperature vinyl ester option up to +180∘C
Fire Retardancy Self-Extinguishing; UL 94 V-0 / ASTM E84 Class 1 Low Smoke Zero Halogen (LSZH) specification
Corrosion Resistance Acid, Alkali, Salt Spray, Hydrocarbon & Chemical Inert Synthetic Surface Veil + UV-Stabilized Gel Coat
Dielectric Strength ≥10 kV/mm (Non-Conductive, No Grounding Needed) Tested per IEC 61537 / NEMA FG-1 Standards
Load Bearing Capacity Heavy-Duty Industrial (NEMA 8A, 12B, 12C, 20B, 20C) Complies with IEC 61537 / BS EN 61537
System Accessories Couplers, Flat Elbows, Tees, Reducers, End Caps, Covers SS316 or Fiberglass Mounting Brackets & Hold-Down Clamps
