Specifications
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2023
Place of Origin :
Shandong, China
Brand Name :
Pterosaur
Model Number :
YLBA
Warranty :
1 Year
Condition :
100%New
Applicable Industries :
Construction works, Energy & Mining
Weight :
500 kg, 500kg
Suitable Excavator(ton) :
20ton
Core Components :
Engine, Motor, Pump, Engine, Motor, Pump
Flow range :
70-150L/min
Dimension :
500x200x250mm
Dimension(L*W*H) :
Steel GB-Q345B
Working pressure :
80-250bar
Piling Speed(m/min) :
3-6m/min
Drill diameter :
200-2000mm
Drilling depth :
0-15m
Torque head power :
8000-50000N.M
Packaging Details :
* Chisels x 2 pcs
* Hydraulic Oil Hoses x 2 pcs
* Nitrogen Charging Kit with Pressure Gauge x 1 set
* Nitrogen Bottle x 1 pcs
* Seal Kit x 1 set
* Tool Box with necessary maintenance tools x 1 set
* User's Manual x 1 pcs.
Supply Ability :
500 Set/Sets per Month
Price :
$2,150.00 - $2,200.00/sets
Description
Product Description

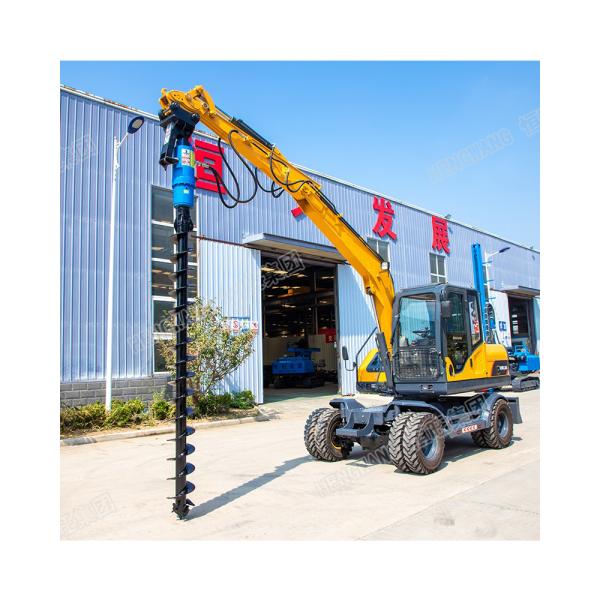

Performance characteristics of Excavator modification spiral drilling machine:


The excavator is modified into a spiral drilling rig driven by the excavator hydraulic system, and the replacement of drilling
tools by the excavator can achieve spiral drilling. The drilling rig has a reasonable structure, simple operation, stable
performance, and easy and fast relocation. Main characteristics of the excavation and renovation spiral drilling rig
1. Adopting reasonable technical parameters, with high lifting force and rotating torque, strong ability to handle accidents.
2. The main hydraulic components are imported with original packaging, with superior performance and reliable quality.
3. Easy to disassemble drill pipes and low labor intensity.
4. The hole is clean and free of residue, and the drilling diameter supports customization.
5. Equipped with Eaton hydraulic motor and overpressure protection device, it is durable and has a long service life.
6. The drill bit is embedded with alloy teeth, allowing for smooth passage even in hard formations!
7. The installation is simple, just remove the bucket latch and replace it with a spiral power head.
earth drilling machine hand tools and power tools auger drilling machine
earth drilling machine hand tools and power tools auger drilling machine
earth drilling machine hand tools and power tools auger drilling machine
earth drilling machine hand tools and power tools auger drilling machine
earth drilling machine hand tools and power tools auger drilling machine
Model（Unit）
YLBA 60
YLBA 80
YLBA 150
YLBA 200
YLBA 300
Application（T）
2-6T
6-15T
15-20T
20-25T
25-40T
Torque（Nm）
1094-4117
2570-9961
5307-20998
8314-30393
27198-59403
Pressure（Bar）
80-240
80-240
80-260
80-260
160-350
Flow（Lpm）
25-92
40-150
80-170
80-170
100-250
Rotate speed（Rpm）
30-68
20-48
15-48
12-26
10-22
Output shaft（mm）
65Rnd
75Sq
75Sq
75Sq
110Sq
Weight（kg）
110
115
200
298
721
Max Auger Diameter Clay/Shale（mm）
300
800
1100
1200
1500
Max Auger Diameter Earth（mm）
500
1000
1500
1600
2000

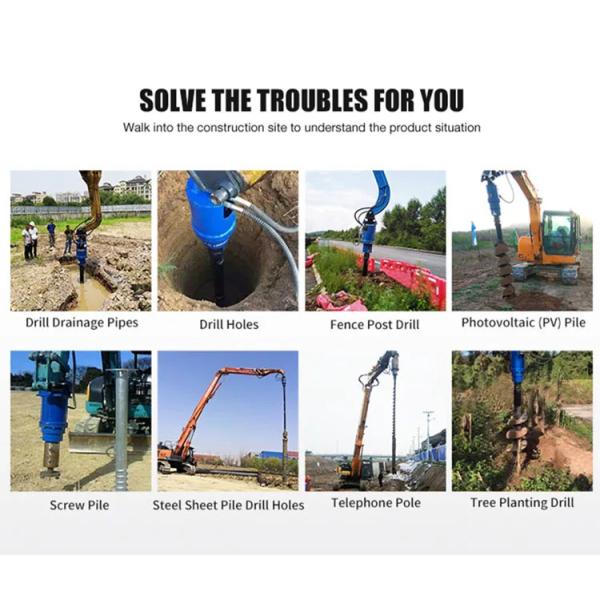

Application
earth drilling machine hand tools and power tools auger drilling machine
Packing & Delivery
earth drilling machine hand tools and power tools auger drilling machine



Package


◇ Inner package excavator ripper were packed in stretch film

◇ Outside package with export wooden case

◇ can be as per customer's request


Company Information
earth drilling machine hand tools and power tools auger drilling machine
earth drilling machine hand tools and power tools auger drilling machine

Our Customers


earth drilling machine hand tools and power tools auger drilling machine
Our Service
earth drilling machine hand tools and power tools auger drilling machine
FAQ

1. Are you a manufacturer?
Yes, our factory was established in 2004

2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.

3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.

4. How about delivery time?
3-7 working days after receiving the payment.


5. After-sale Service
12 months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.

6. Impact Test
Every hydraulic breaker will do impact test before shipment.
