Specifications
Brand Name :
BEFANBY
Model Number :
KPT-3T
Certification :
CE,SGS,ISO9001
Place of Origin :
Xinxiang
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
30% deposit by T/T in advance,70%balance by T/T before dispatch
Supply Ability :
1500 sets one year
Delivery Time :
30-40 days as usual delivery,20-30days for urgent delivery
Packaging Details :
Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Application :
factory transport
Load capacity :
50T
Car size :
Customized
Exported countries :
Singapore, Australia, South Africa, Mexico
Electrical parts :
Siemens, Schneider, Nord
Safety devices :
Warning lamp, siren, bumper
Power Supply :
Electrical
Description

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

Product Description

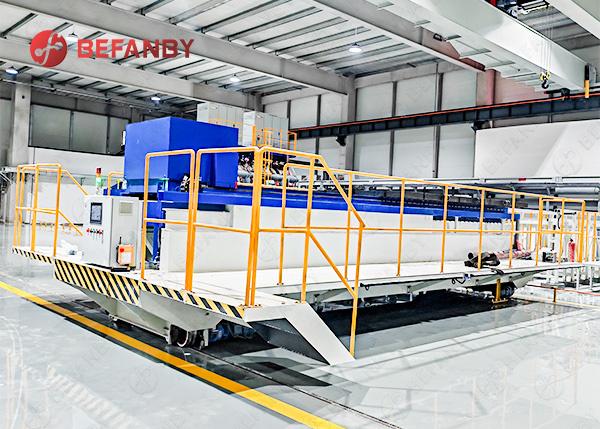

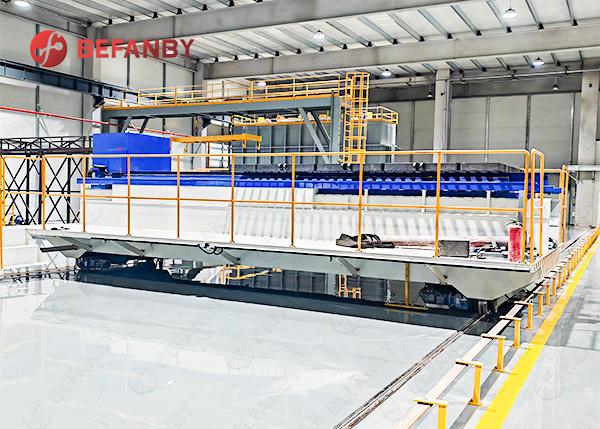

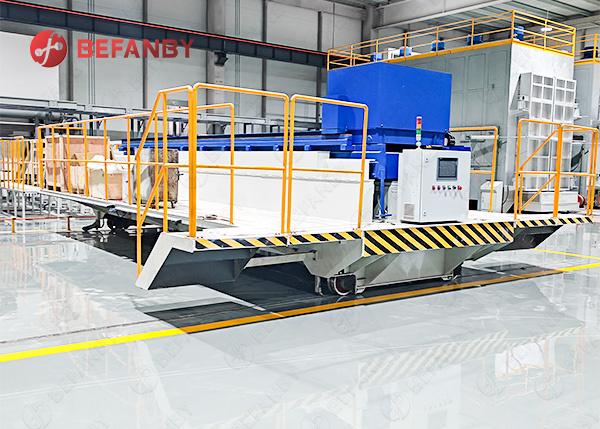

Extra-Long Platform Rail-Mounted Shuttle Vehicle - A Solution for Docking Inside High-Temperature Furnaces
This rail-mounted shuttle cart features an extra-long platform design, meeting the needs of transporting large materials or equipment over long distances. Operating on dedicated rails, the cart offers stable operation and high positioning accuracy. This cart is specifically designed for docking and handling equipment inside high-temperature furnaces.

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

Technical Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Company Profile

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

Main Parts

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

----The entire cart utilizes a high-strength welded steel structure, offering excellent high-temperature resistance and load capacity, ensuring safe operation in high-temperature environments such as metallurgy and casting.

----Based on the on-site working environment, the platform is equipped with thermal insulation, a hydraulic lifting system, and a tilting and stretching device to ensure stability and efficiency when docking with the furnace mouth or equipment within the furnace.

Advantages

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

The cart uses batteries as a power source, which is green and environmentally friendly and can achieve long-term continuous operation. The cart body structure is sturdy and has strong carrying capacity. The platform size, load tonnage, and operating speed can be customized according to the actual working conditions of the customer. The operating system supports dual modes of steering wheel manual driving and automatic navigation. It can be driven and operated by personnel, or integrated with laser, magnetic stripe or visual navigation system to achieve automatic operation.


Application

Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts

The rail layout can be customized to meet on-site process requirements, supporting curved rails, dual-rail translation, cross-docking, or multi-station docking, enabling seamless connections between different furnace areas or production sections.


To meet the needs of various industries, the cart's load capacity and dimensions are customizable, with common load capacities ranging from 5 to 100 tons and platform lengths extending to over 20 meters. The cart's structure is constructed of high-strength steel, offering high-temperature and wear resistance. Optional modules include hydraulic lift and wireless remote control.
