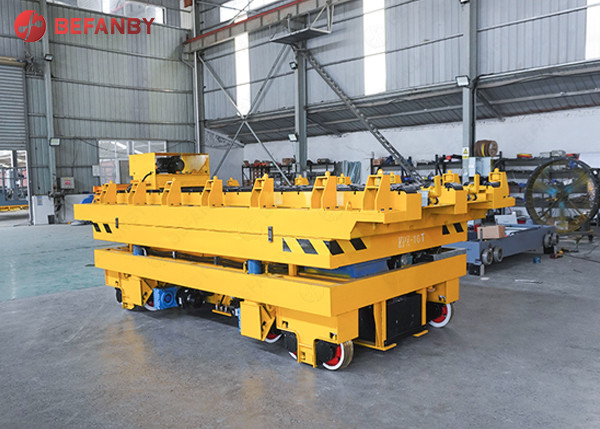

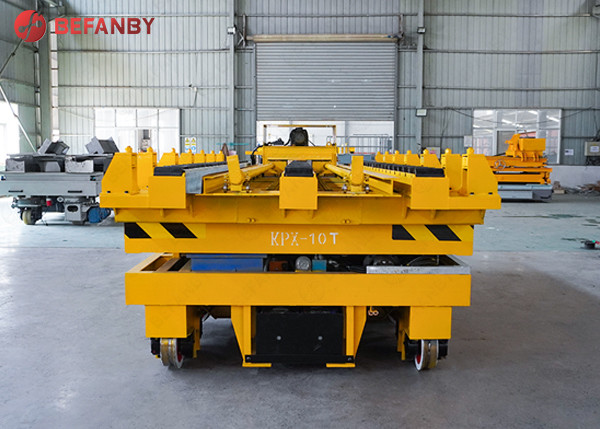

This rail electric transport car not only has the basic functions of traditional transportation tools, but also introduces a hydraulic lifting system and remote control adjustment technology, which further improves work efficiency and operational flexibility.
The rail electric transport car is an electric transportation device specially designed for use in the rail system. It is usually driven by an electric motor and can run smoothly on a fixed track. It has a simple structure and is easy to operate. It is widely used in workshops, warehouses, production lines and other places to transport heavy objects and equipment. Compared with traditional trolleys, this type of transport car reduces labor intensity and improves transportation efficiency.
Advantages of hydraulic lifting system
A notable feature of the rail electric transport car is that it is equipped with a hydraulic lifting system. The hydraulic system realizes the lifting and lowering of goods through the pressure transfer of the liquid. It has a strong load capacity and can be precisely lifted and lowered
Convenience of remote control adjustment
In addition to the hydraulic lifting system, another highlight of the rail electric transport car is its remote control adjustment function. With the development of modern science and technology, remote control technology has become more and more mature, providing great convenience for operators.
Another important trend in modern industry is green environmental protection. The battery power supply system used by the rail electric transport car not only reduces pollution to the environment, but also saves energy costs for enterprises.
Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
