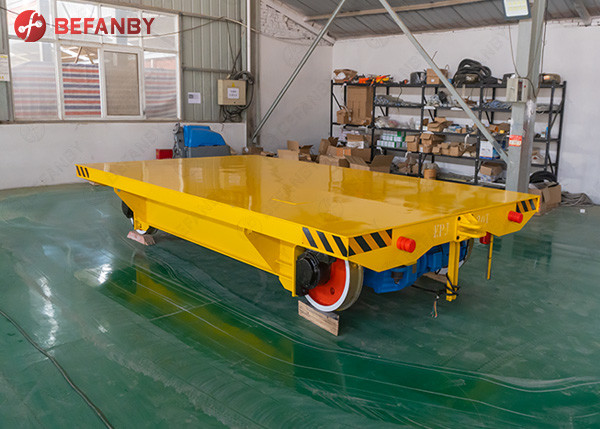

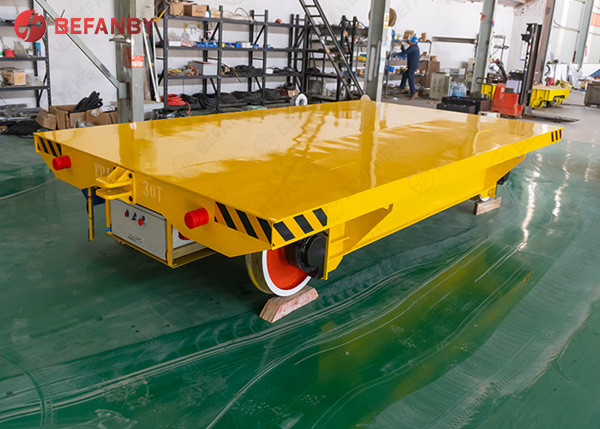

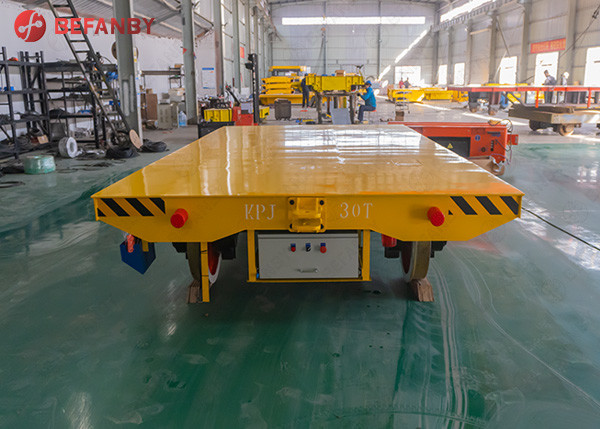

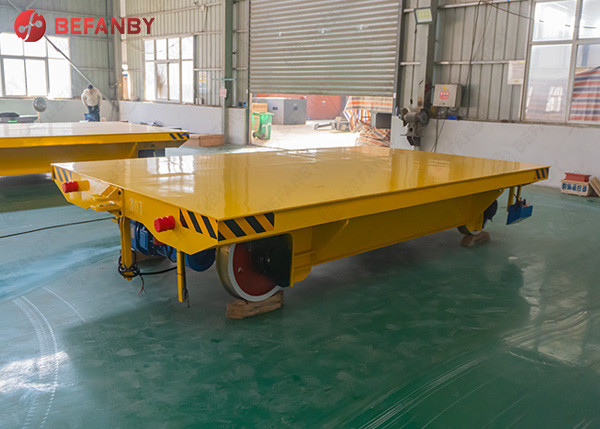

30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
30T Factory Use Elctrical Flatbed Transfer Carts
Specifications
Brand Name :
BEFANBY
Model Number :
KPJ
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan, China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set/sets per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The material transfer cat will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Running speed :
0-20m/min
Warranty :
12 months
load capacity :
30 Tons
Application :
Industrial field, factory,warehouse,plant
Port :
Qingdao/Tianjin/Shanghai
Color :
Customized
Power supply :
cable reel
Operation type :
Hand pendent + remote control
Description

30T Factory Use Elctrical Flatbed Transfer Carts

Product Description

The rail electric transfer cart is a commonly used logistics equipment with a simple structure and easy maintenance. It uses an AC motor as the power system, which starts smoothly and can effectively improve production efficiency.

In terms of safety, the body of the rail electric transfer cart is equipped with anti-collision strips, which can protect the body from damage and also ensure the safety of workers. This reflects the company's emphasis on personal safety and effectively avoids some unnecessary industrial accidents.

In terms of the control system, the rail electric transfer cart is equipped with a remote control, which is simple and convenient to operate and can easily control the direction and speed of the vehicle. This design is very consistent with the requirements of modern production, reduces the labor intensity of workers and improves production efficiency.

In short, the rail electric transfer cart is a very practical handling equipment with a simple structure, convenient and easy maintenance, a smooth power system start, and a safety system that properly guarantees personal safety. The control system is operated by a remote control, which can effectively improve work efficiency and fully meet the requirements of production and handling.

30T Factory Use Elctrical Flatbed Transfer Carts30T Factory Use Elctrical Flatbed Transfer Carts

Product Details

30T Factory Use Elctrical Flatbed Transfer Carts

Product Parameter

Model KPD-2T KPD-5T KPD-10T KPD-16T KPD-20T KPD-25T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load(t) 2 5 10 16 20 25 30 40 50 63
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Heigth(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 50
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quantity(个) 1 1 1 1 1 1 1 1 1 1
Running distance 80 80 80 80 80 80 80 60 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

Application

30T Factory Use Elctrical Flatbed Transfer Carts

Product Characteristics

30T Factory Use Elctrical Flatbed Transfer Carts

Advantage

30T Factory Use Elctrical Flatbed Transfer Carts

Shipping

30T Factory Use Elctrical Flatbed Transfer Carts

Our Company

30T Factory Use Elctrical Flatbed Transfer Carts

30T Factory Use Elctrical Flatbed Transfer Carts

30T Factory Use Elctrical Flatbed Transfer Carts
