20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
20 Tons Rail Transfer Cart For Steel Plant Transportation
Specifications
Brand Name :
BEFANBY
Model Number :
KPD
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan, China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set/sets per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The rail power transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Material :
Q235
Running speed :
0-20m/min
Running distance :
According to customers'demand
Warranty :
18 months
load capacity :
1-1000T
Application :
Industrial field, steel plant transportation
Port :
Qingdao/Tianjin/Shanghai
Color :
Customized
Power supply :
Low voltage rail powered
Operation type :
Hand pendent + remote control
rail and wheel :
insulated material will be added
Description

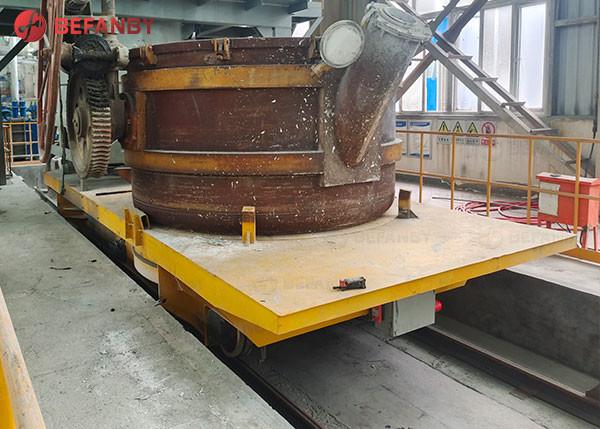

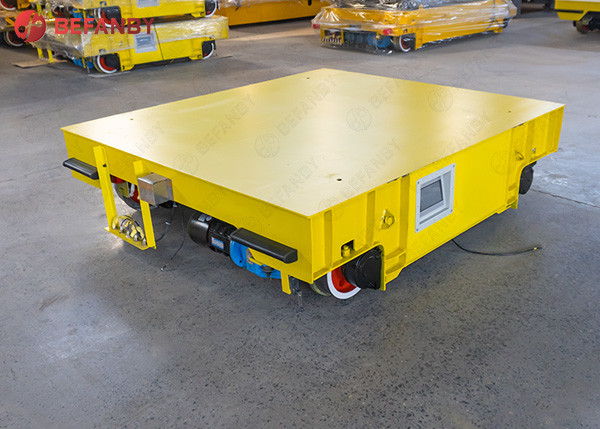

20 Tons Rail Transfer Cart For Steel Plant Transportation

1. Product Introduce

This electric transfer cart uses cast steel wheels with high strength and pressure resistance. It can carry a large amount of items and maintain a stable and stable performance during transportation.

In addition, the car can also be operated by remote control, which is very convenient and easy to operate. Both the table size and basic components can be customized according to customer requirements, and professional after-sales service is provided.

2. Application

1. All kinds of rollers (V-Groove Deck)

2. Tanks (Size/Stability For Uniformly Distributed Loads)

3. Assemblies lines (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery)

4. Sub-Assembly Shuttle From One Line To Another Line

5. Maintenance Cart For Motors And Pumps

6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility

7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails)

8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table)

9. Sand blasting (Flat Decking)

10. Mold Transfer

f

Please contact us if you's like to learn more details and get offer to us.

BEFANBY have over 20 years' experience in the material handling fields.

20 Tons Rail Transfer Cart For Steel Plant Transportation20 Tons Rail Transfer Cart For Steel Plant Transportation

20 Tons Rail Transfer Cart For Steel Plant Transportation20 Tons Rail Transfer Cart For Steel Plant Transportation

20 Tons Rail Transfer Cart For Steel Plant Transportation

Welcome to inquiry us if you'd like to learn more

3. Technique Parameter
KPD series rail power transfer cart can be used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
